Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
186

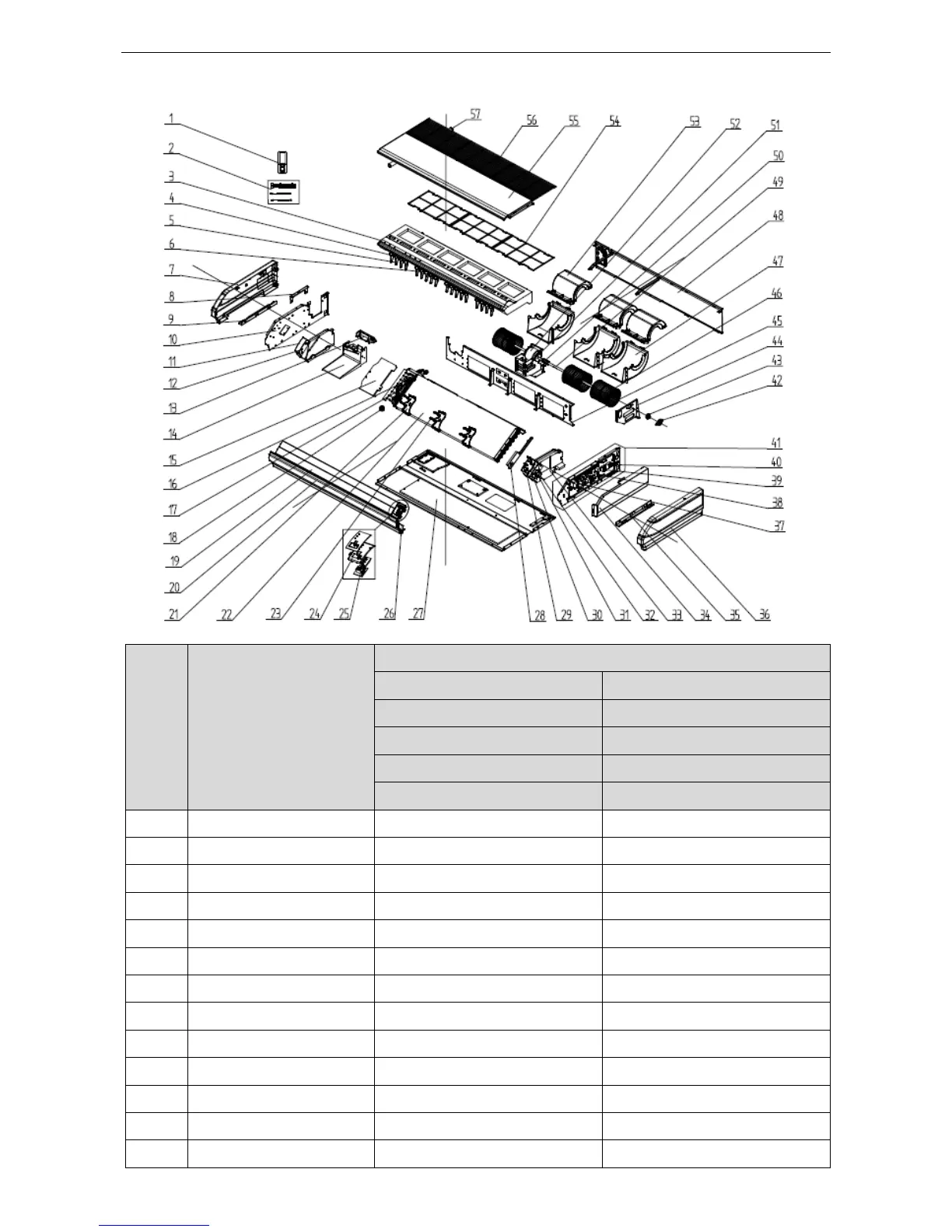

Exploded View of GMV-ND63ZD/A-T、GMV-ND71ZD/A-T、GMV-ND90ZD/A-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND63ZD/A-T
CM600N0410
GMV-ND71ZD/A-T
CM600N0370
GMV-ND90ZD/A-T
CM600N0330
Part code
Quantity
1
Remote Controller
'30510589
1
2
Sensor Sub-assy
'39008000100G
1
3
Water Tray Assy
'01289405
1
4
Swing Lever
'10582008
2
5
Air Louver
'26909418
18
6
Swing Lever
'10582009
2
7
Right Cover Plate
'26909422
1
8
Connection Board
'02229406
1
9
Installation Supporting Frame
'01809402
1
10
Right Side Plate Sub-Assy
'01319408
1
11
Right Foam Assy
'12509425
1
12
Axile Bush
'10542704
2
13
Plate Board of Water
'26909442
1
