Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
195

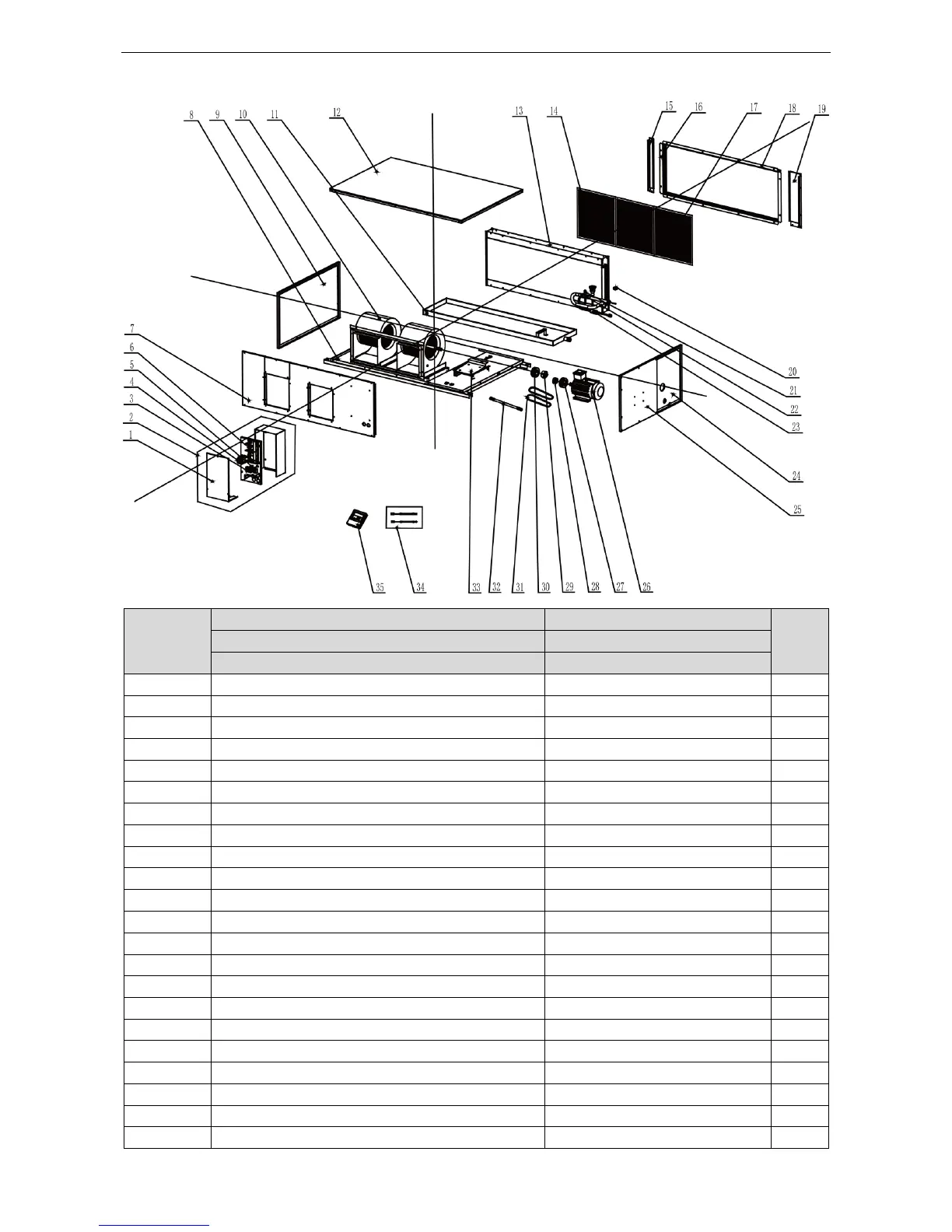

Exploded View of GMV-NX450P/A(X4.0)-M：
NO.
Model
GMV-NX450P/A(X4.0)-M
Qty.
Product Code
CM800N3740
Part Name
Part Code
1
Electric Box Cover
01425304P
1
2
Electric Box Assy
01394100243
1
3
Terminal Board
42011043
1
4
AC Contactor
44010232
1
5
Terminal Board
4201800002601
1
6
Main Board
30226000052
1
7
Air Outlet Panel sub-assy
01545213
1
8
Base Frame Assy
01285225
1
9
Side panel sub-assy
01545212
1
10
Motor
15705214
1
11
Water Collecting Tray Assy
01284169
1
12
Top Cover Sub-Assy
01265209
1
13
Evaporator Assy
01024100062
1
14
Filter Sub-Assy
11129079
1
15
Retaining Plate Sub-Assy
01845207
1
16
Longitudinal Beam of return air frame
01875208P
2
17
Filter Sub-Assy
11129078
2
18
Return Air Frame Sub-Assy
01375208P
2
19
Retaining Plate Sub-Assy
01845205
1
20
Electric Expand Valve Fitting
4304413219
1
21
Electronic Expansion Valve
07334390
1
22
Filter
07218603
1
