Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
196
NO.
Model
GMV-NX450P/A(X4.0)-M
Qty.
Product Code
CM800N3740
Part Name
Part Code
23
Gas Tube Filter
072190511
1
24
Side panel sub-assy
01545208
1
25
Side panel sub-assy
01545210
1
26
Fan Motor
1501861102
1
27
Belt Wheel
10548149
1
28
Taper Sleeve
10548213
1
29
Taper Sleeve
10548218
1
30
Belt Wheel
10548156
1
31
Belt
76318309
2
32
Rotating Shaft
10549057
1
33
Retaining Plate
01845319
1
34
Temperature Sensor
39008042G
1
35
Display Board
30296106
1
Above data is subject to change without notice,pls reference the SP in global service website.

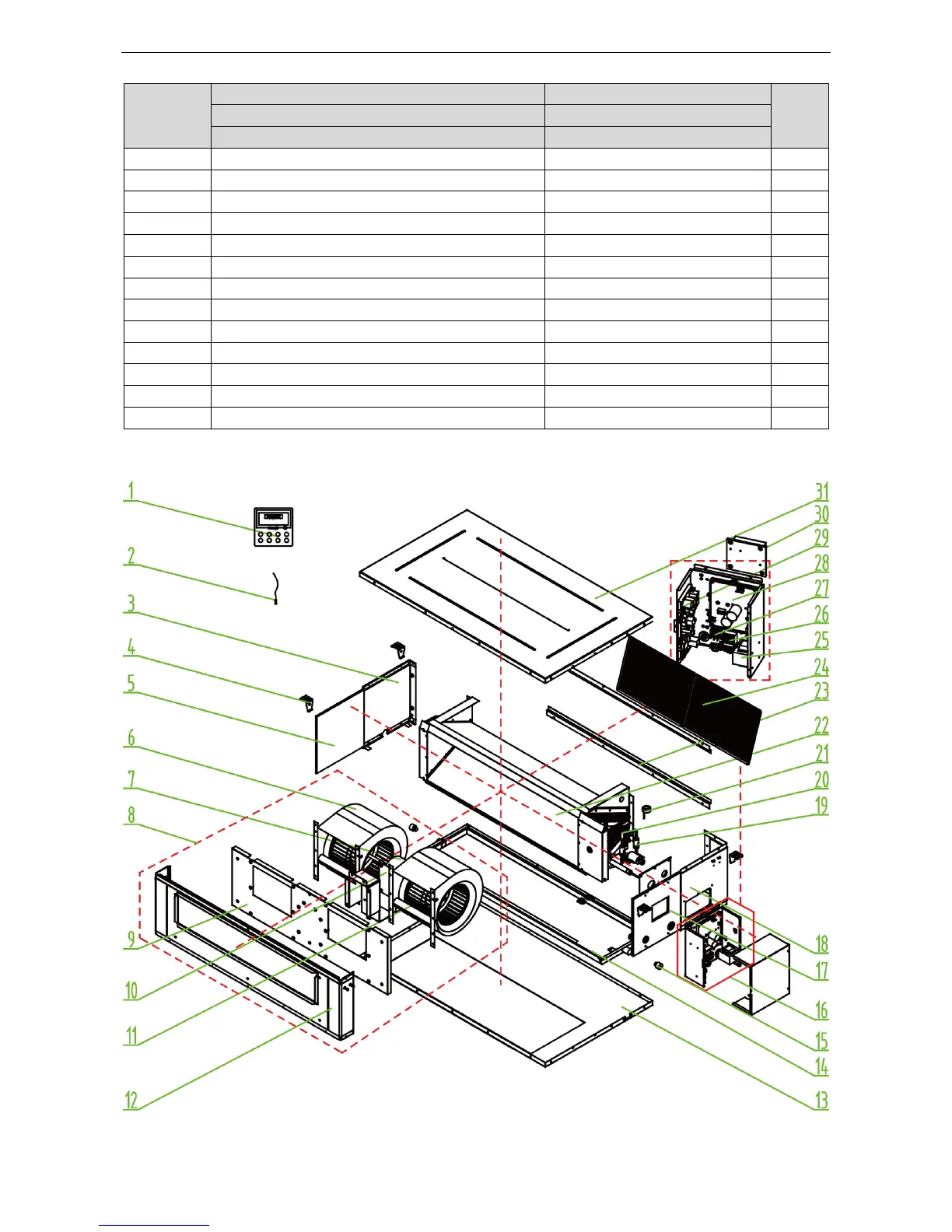

Exploded View of GMV-NDX224P/A-T、GMV-NDX280P/A-T：
