Gree GMV-ND22PLS/A-T Service Manual

MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
78
Model：GMV-ND224PH/A-T、GMV-ND280PH/A-T

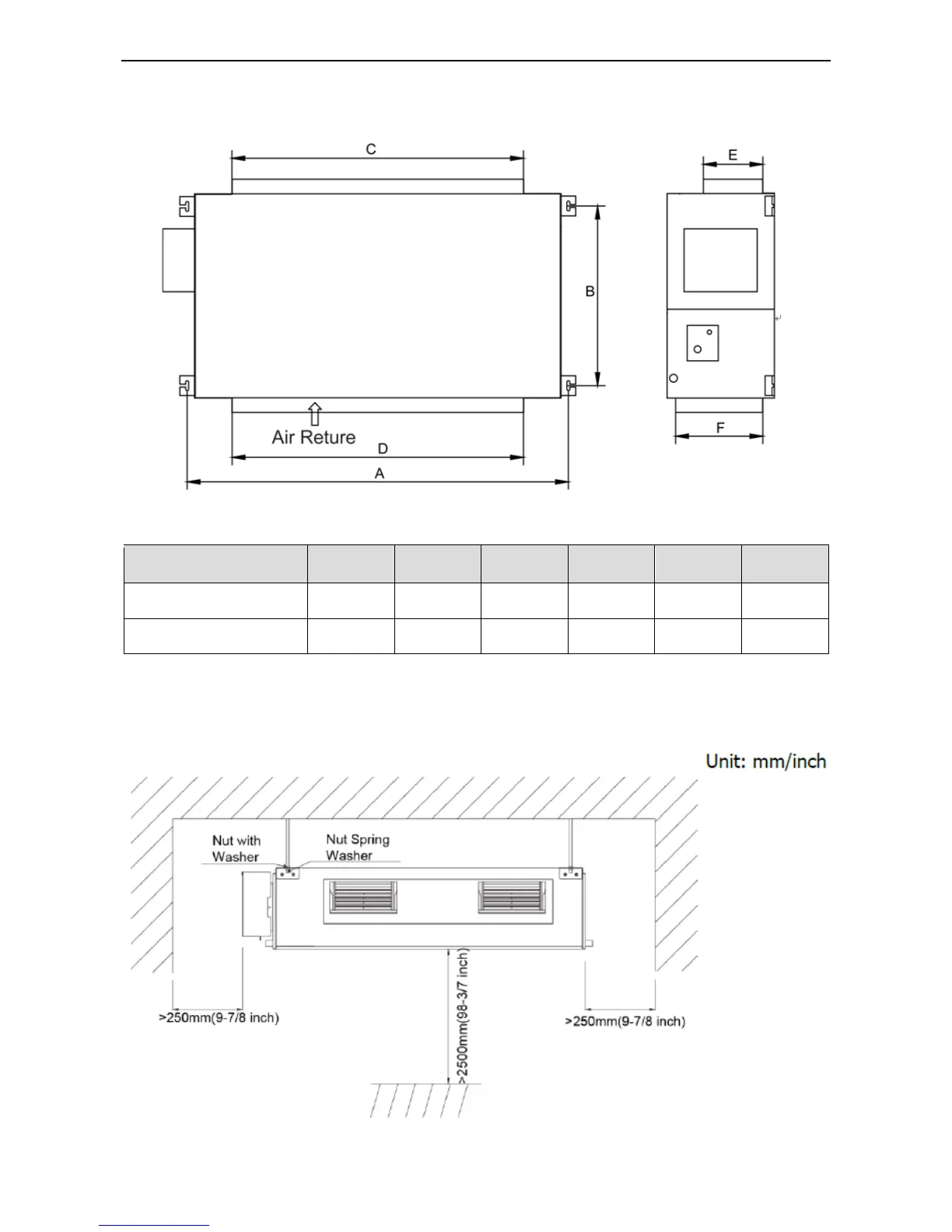

Below are dimensions of A, B, C, etc. for different models:
Unit: mm/inch
Model
A
B
C
D
E
F
GMV-ND224PH/A-T
1353
(53-1/4)
632
(24-7/8)
992
(39)
1150
(45-1/4)
192
(7-1/2)
327
(12-7/8)
GMV-ND280PH/A-T
1563
(61-1/8)
706
(27-3/4)
992
(39)
1350
(53-1/8)
192
(7-1/2)
402
(15-7/8)
3.2.2 Installation space
Model：GMV-ND56PHS/A-T~ GMV-ND160PHS/A-T
Model：GMV-ND224PH/A-T、GMV-ND280PH/A-T
