MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
174
Above data is subject to change without notice,pls refer the SP in global service website.

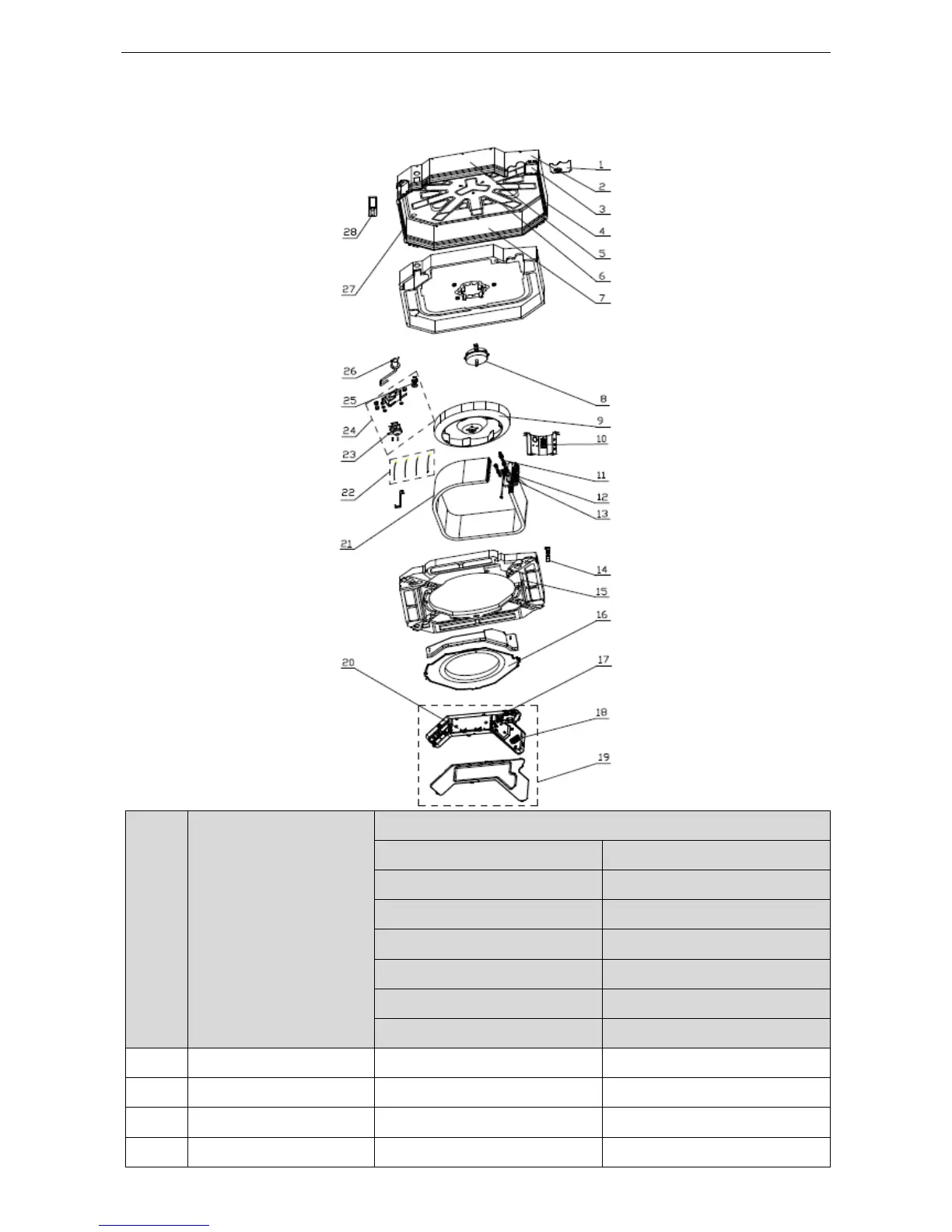

Exploded View of GMV-ND90T/A-T、GMV-ND100T/A-T、GMV-ND112T/A-T、 GMV-ND125T/A-T、GMV-
ND140T/A-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND90T/A-T
CM500N0460
GMV-ND100T/A-T
CM500N0470
GMV-ND112T/A-T
CM500N0480
GMV-ND125T/A-T
CM500N0480
GMV-ND140T/A-T
CM800N0550
Part code
Quantity
1
Tube Exit Plate Assy
'01382715
1
2
Shell Assy
'01432702
1
3
Body Installing Plate
'01332701
4
4
Left Side Plate Assy
'01302711
1
