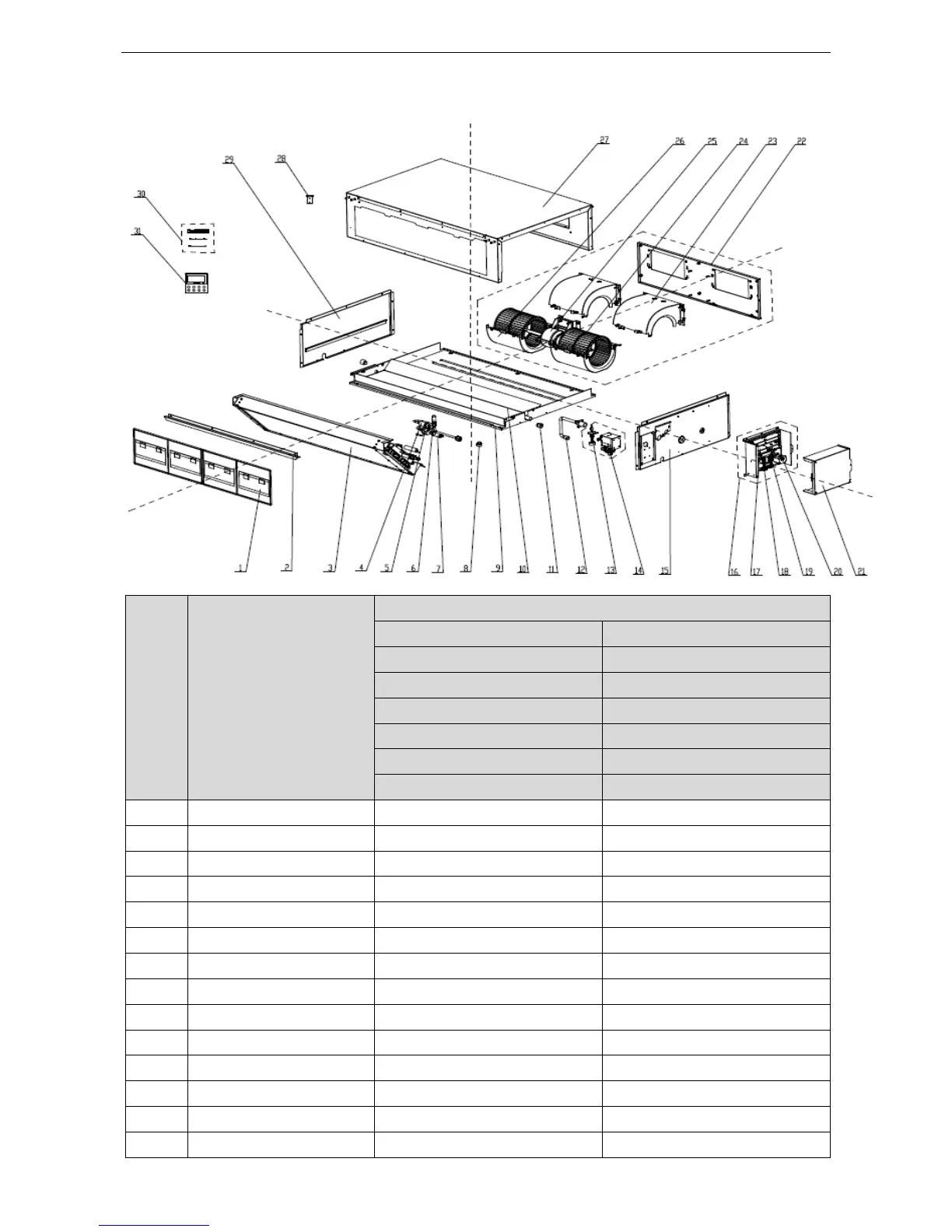

Exploded View of GMV-ND90PHS/A-T、GMV-ND100PHS/A-T、GMV-ND112PHS/A-T、GMV-ND125PHS/A-T、
GMV-ND140PHS/A-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND90PHS/A-T
CM800N3550
GMV-ND100PHS/A-T
CM800N3650
GMV-ND112PHS/A-T
CM800N3660
GMV-ND125PHS/A-T
CM800N3670
GMV-ND140PHS/A-T
CM800N3680
Part code
Quantity
1
Filter Sub-Assy
'111253031
2
2
Side Plate of Air intake
'01375301
1
3
Evaporator Assy
'01024100077
1
4
Strainer
'0741410000601
2
5
Filter
0
0
6
Electronic Expansion Valve
'07334468
1
7
Strainer
'07220005
1
8
Electric Expand Valve Fitting
'4304413215
1
9
Lower Cover Plate Sub-Assy
'15265301
1
10
Water Tray Assy
'01285323
1
11
Choke Plug of Drain Pipe
'76712455
2
12
Pump Drainpipe
'05235301
1
13
Water Level Switch
'45018012
1
14
Water Pump
'43138220
1
