MULTI VRF-Ⅱ INDOOR UNIT SERVICE MANUAL EUROPEAN/LATIN AMETICA (R410A)
167

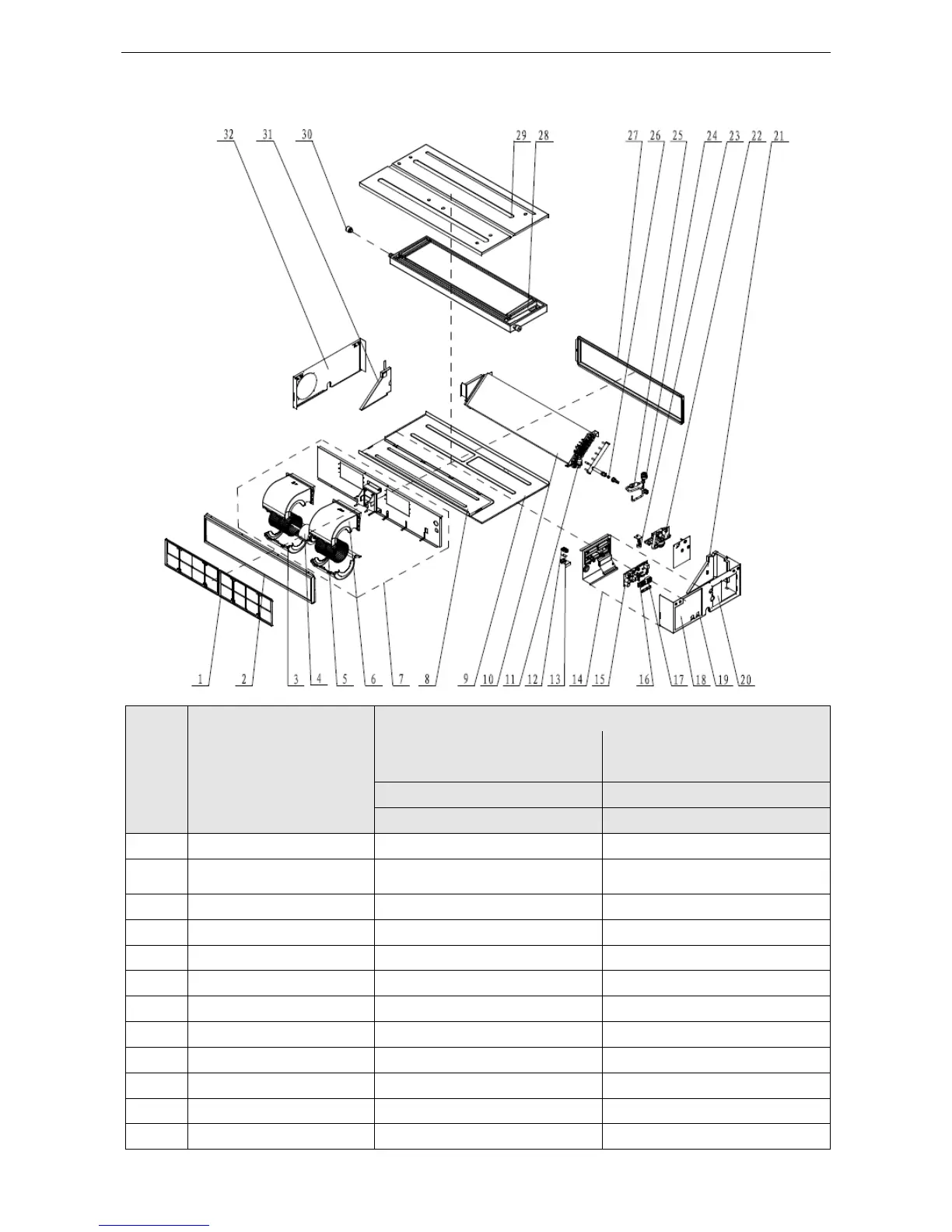

Exploded View of GMV-ND71PLS/A-T、GMV-ND80PLS/A-T：
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND71PLS/A-T
CM800N3520
GMV-ND80PLS/A-T
CM800N3440
Part code
Quantity
1
Filter Sub-Assy
'11725207
2
2
Air Intake Side Board Sub-
assy
'02225265
1
3
Rear volute casing
'26905209
2
4
Fan Motor
'15704100001
1
5
Centrifugal fan
'1041410101
2
6
Front volute casing
'26905208
2
7
Centrifugal fan assy
` 15404100014
1
8
Cover Of Air-In
'01265346
1
9
Bottom Cover Plate
'01265348
1
10
Evaporator Assy
'01024100112
1
11
Filter
'07415210
1
12
Humidity Sensor Cover
0
0
