GMV5 Compact Series VRF Outdoor Unit
8
ii Obstructions in the air outlet

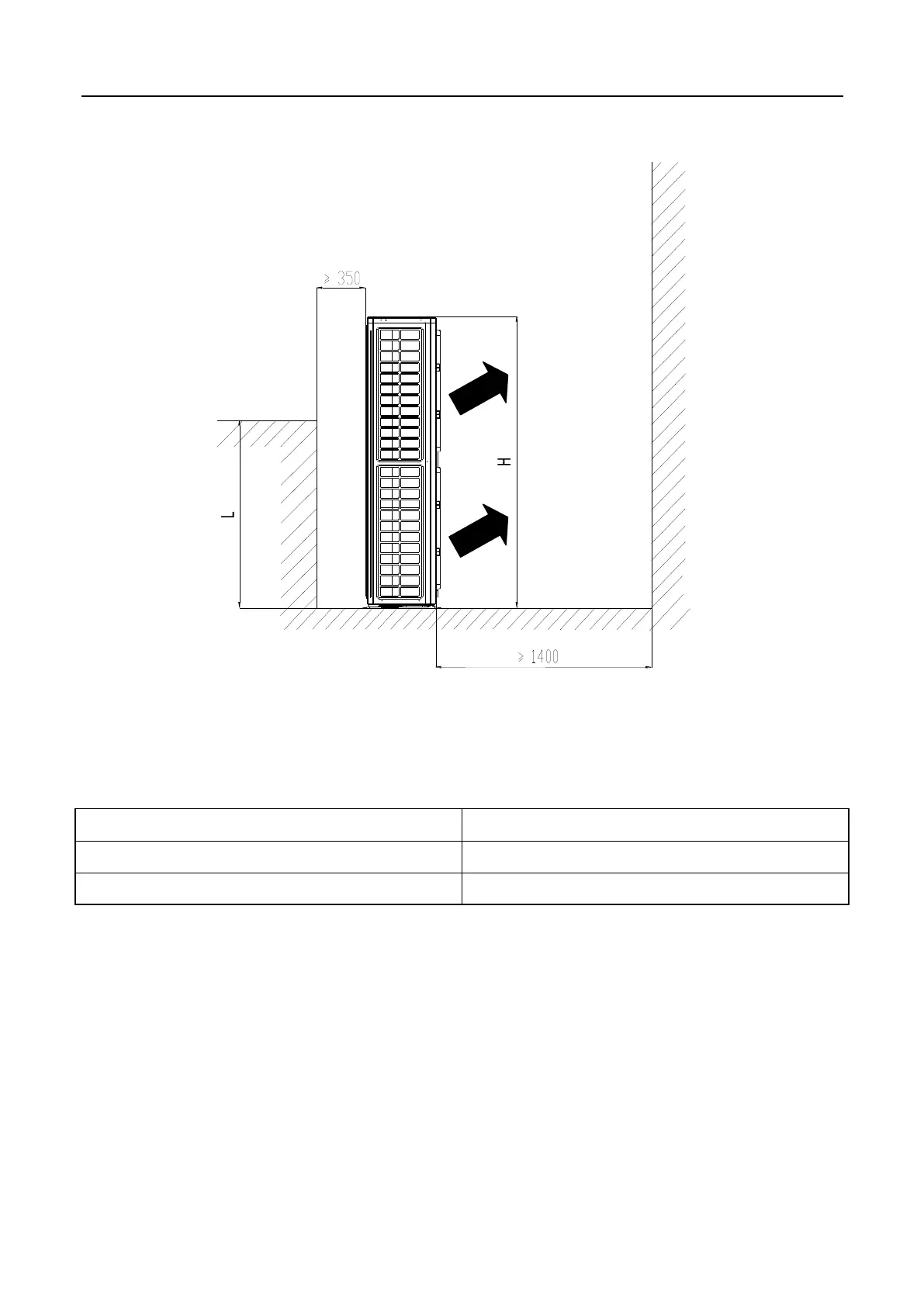

Fig.4 Installation space for outdoor unit
Note：
⑴ Be sure that L is less than H, and H is the height of the unit and its chassis;
⑵ The value of A must meet the following standard:
L
A
0 < L < 1/2H
≥600
1/2H < L < H
≥1400
5）Outdoor unit should be installed on the beton chassis of 10cm thickness.
