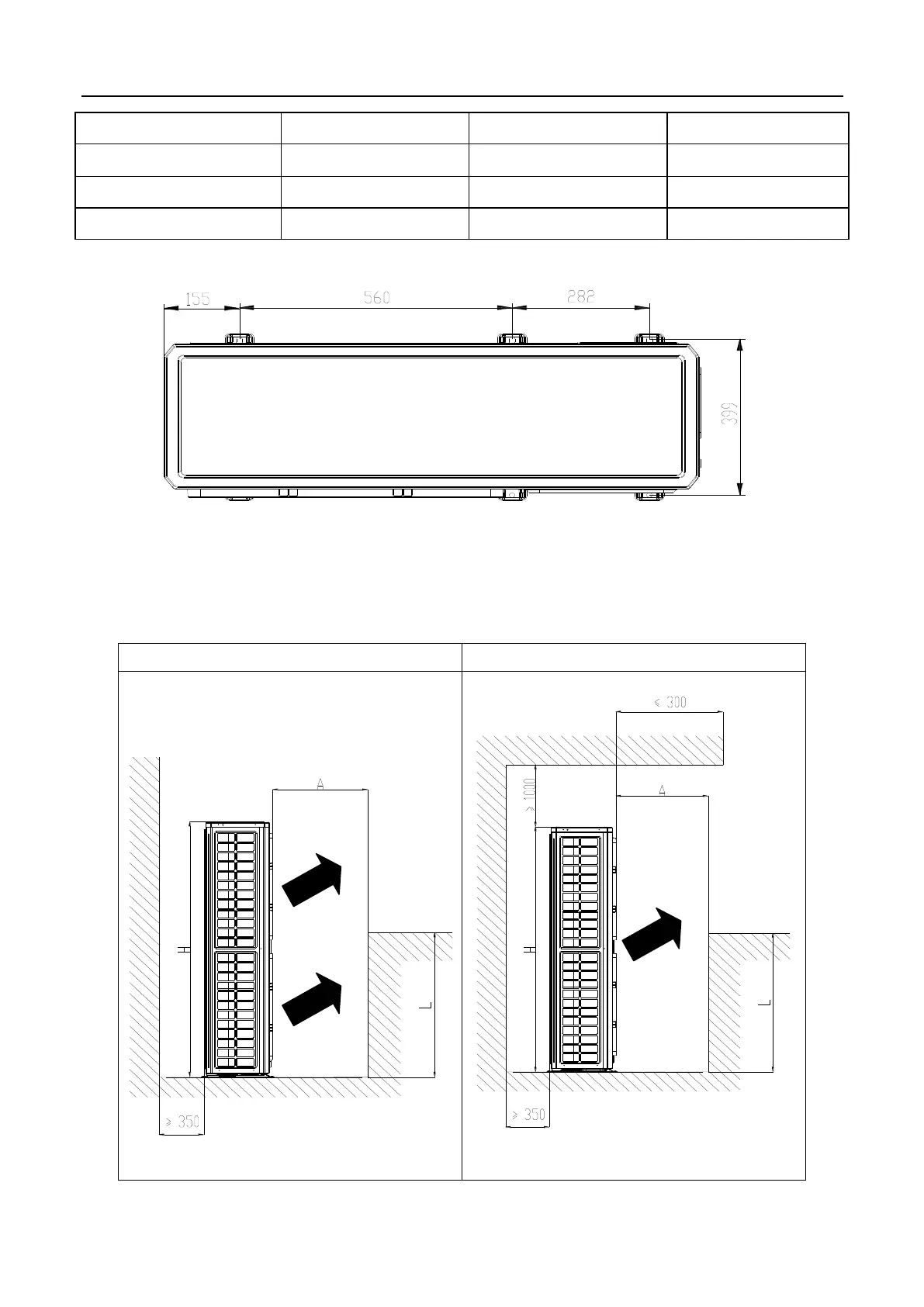

GMV5 Compact Series VRF Outdoor Unit
7
Model
A
B
C
GMV-224WL/A-X
1098
427
1584
GMV-250WL/A-X
1098
427
1584
GMV-280WL/A-X
1098
427
1584
2) Mounting hole physical dimension
Fig.3 Mounting hole physical dimension
3）Use M12 bolt to fix up the chassis of the units when installing units.
4）A space is needed to install outdoor unit to insure unit operate normally.
ⅰ Obstructions in the air inlet
No obstructions above the unit
Obstructions above the unit
