GMV5 Compact Series VRF Outdoor Unit
6
4 Installation Instruction
Note: The picture is only used for reference and the actual product prevails. Unit: mm.
Please observe the following installation principle to insure the operating unit is perfect:
☆ A much space should be enough to make sure the inlet and outlet air from outdoor unit will not regurgitate and
maintain outdoor unit;
☆ Good ventilation is needed for outdoor unit;
☆ Install the unit at a place where is adequate to withstand the weight of the unit and is insulated against all noise,
which makes sure the noise doesn’t disturb the neighbors;
☆ Only use the appointed suspender orifice to suspend outdoor unit. Please protect the unit when suspending it,
and forbid destroying sheet metal in case of rustiness;
☆ Never expose the unit under direct sunshine;
☆ Rain water and thaw water should be discharged in time;
☆ The place must insure outdoor unit will not be under the influence of snow, rubbish, oil smear;
☆ Rubber or spring absorber should be installed on the outdoor unit to meet the standard of noise and vibration;
☆ Installation dimension should observe the installation instruction, and outdoor unit must be fixed on the
installing place;
☆ Please call Gree appointed professional people to install units.
4.1 Physical Dimension of the Outdoor Unit and Mounting Hole
1) Outdoor unit physical dimension

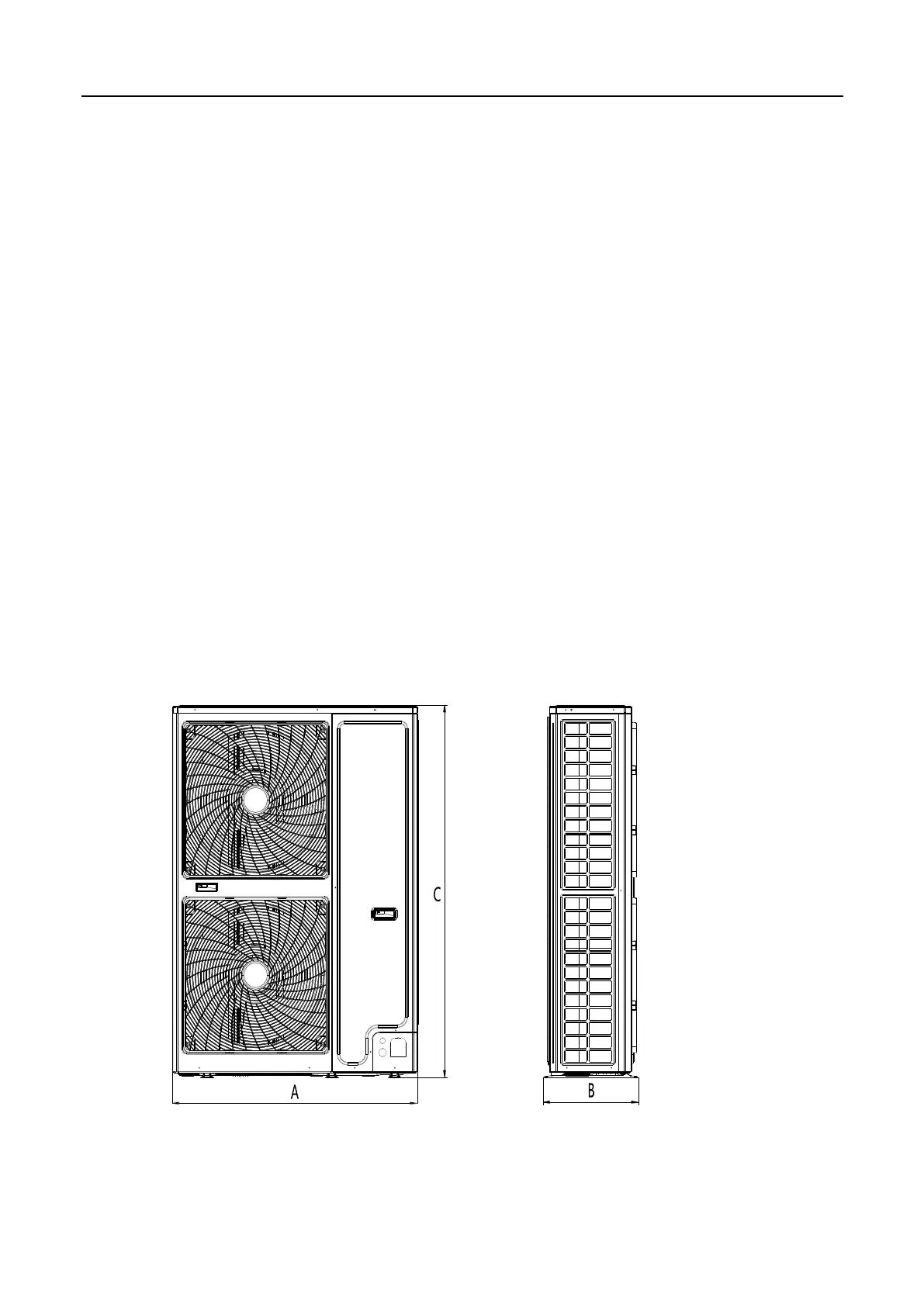

Fig.2 Outdoor unit physical dimension
