Gree GMV6 Series User Manual

Gree GMV6 DC Inverter VRF Units Service Manual
307

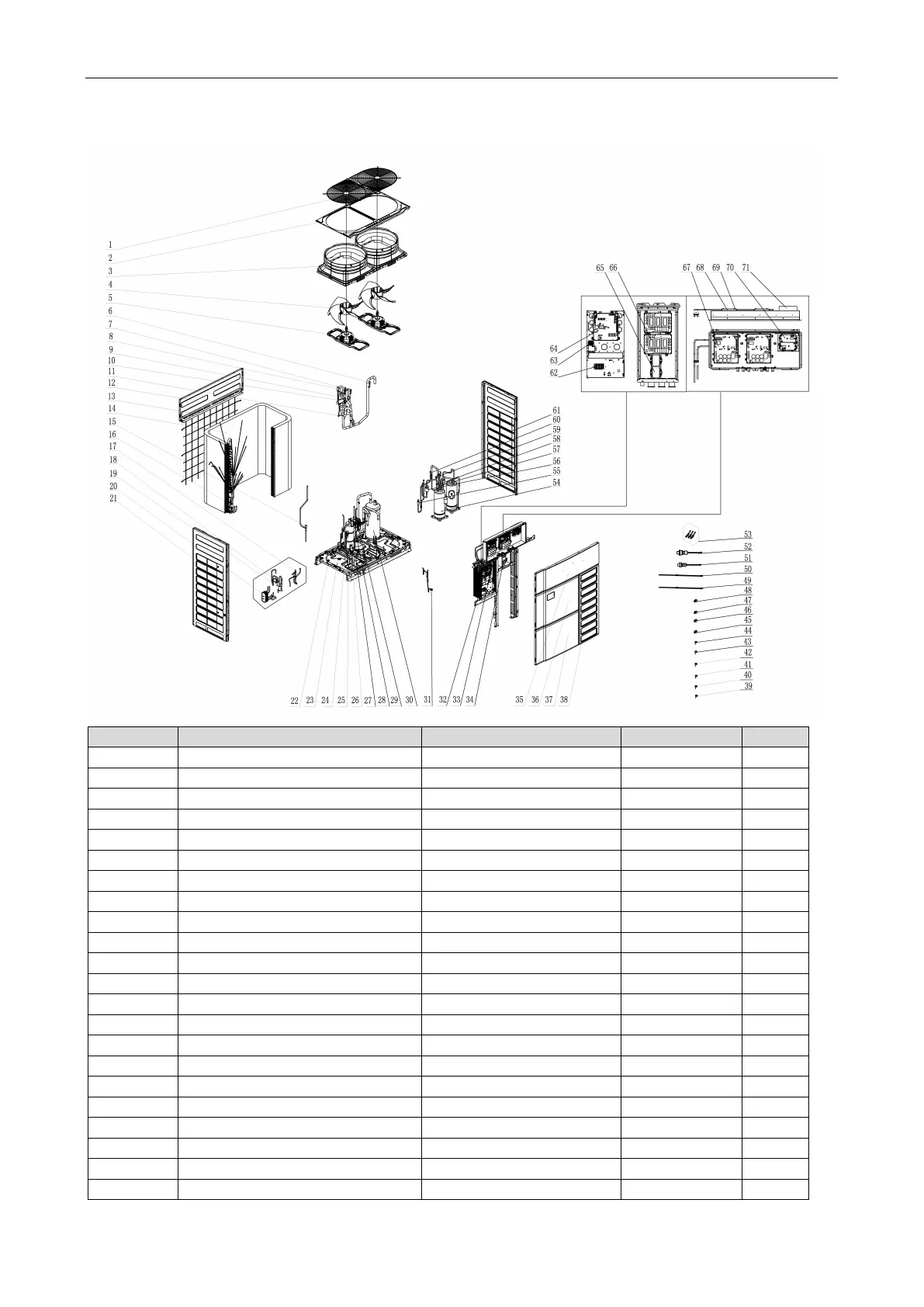

6.3 Explosive View and Parts List of GMV-560WM/G-U, GMV-
615WM/G-U and GMV-680WM/G-U
No.
Name
Code
Vulnerable part *
Qty
1
Rear Grill
016001060013
*
1
2
Coping
012049000059P
1
3
Diversion Circle
200150000011
*
2
4
Axial Flow Fan
103002060011
*
2
5
Brushless DC Motor
1570412405
*
2
6
Nozzle for Adding Freon
06120012
*
2
7
Nozzle for Adding Freon
035114060003
*
1
8
Discharge Charge Valve
07334100002
*
2
9
One Way Valve
071001060008
*
1
10
4-Way Valve
43000412
*
1
11
Filter
07218603
*
1
12
Cover Plate
012035000247P
1
13
Rear Grill
016001060012
*
1
14
Condenser Assy
01100206022601
*
1
15
Electronic Expansion Valve
072009060012
*
1
16
Filter
0341010701
*
1
17
Electromagnetic Valve
43044100224
*
1
18
Electronic Expansion Valve
43044100173
*
1
19
Gas Tube Filter
072190511
*
1
20
Plate-type Heat Exchanger
010007060006
*
1
21
Left Side Plate Sub-Assy
017037060016P
1
22
Base Plate Sub-Assy
017000060113P
1
