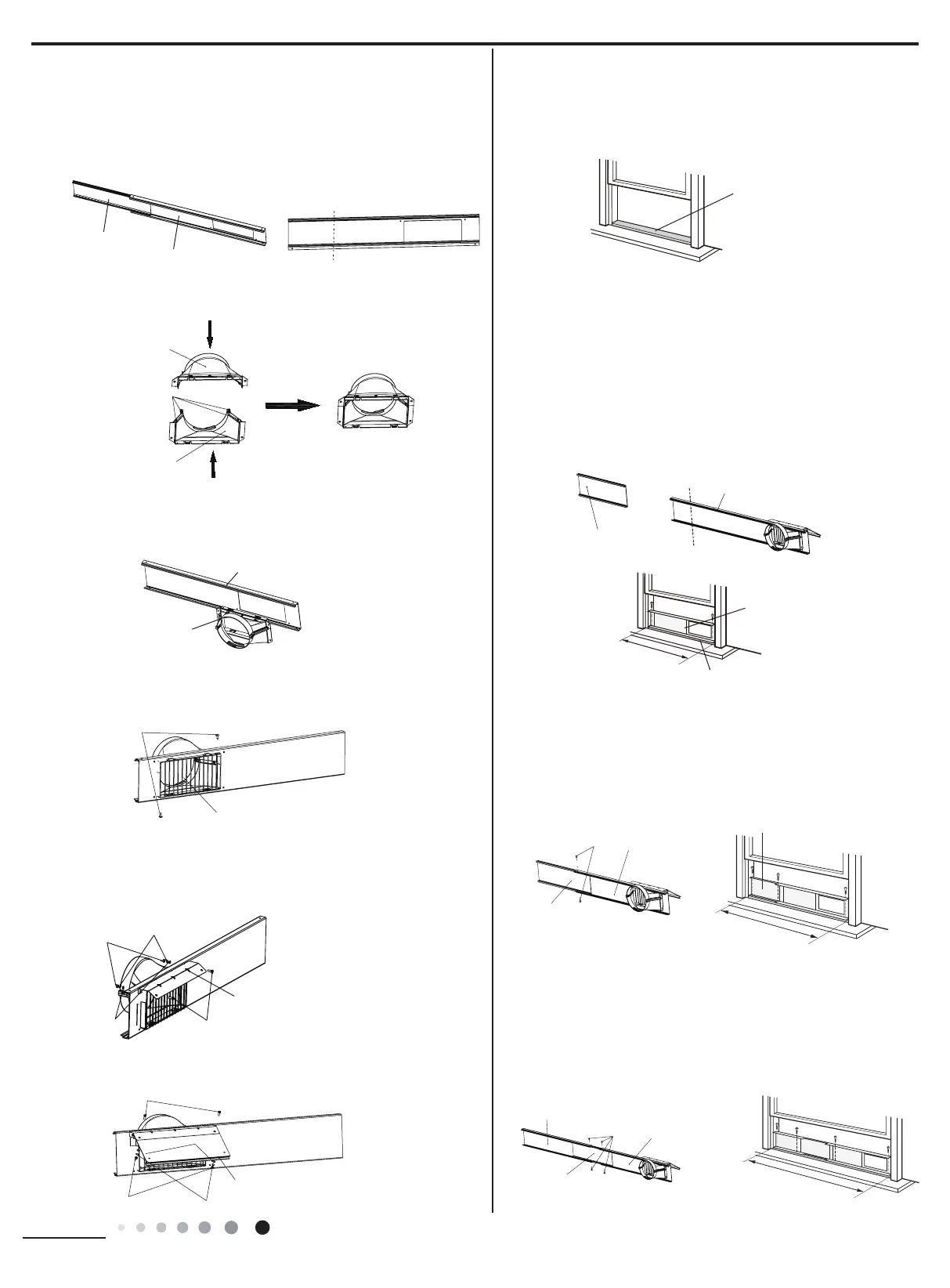

9.3 Installation in a double-hung sash
window
(Note: If the inner width of window is below 20.5"(520mm), please
remove the adjusting panel from window panel and then cut the
window panel to make its width the same as the width of window.)
1. Install rear clip — aim the rear clip(upper) at the rear clip(lower),x
them together, press the clasp forcibly in to the groove.
2. Clamp joint B+C into the inner side of window panel along the
direction of arrow.
3. Fix the protective grille on joint B+C with screws.
4. Fix the support on the outer side of window panel
with nuts, spring washer,washer and bolt.
5. Fix the rain shield on the support with nuts, spring
washer, washer and bolt.
(Note: protective grille, support, rain shield, nut, bolt, spring
washer and washer are optional accessories; some models
are without these accessories.
6. Cut the sponge B to a proper length and attach it to the
window sash.
7. Attach the window panel to the window stool.
7.1 If the inner width of the window is less than 20.5"(520mm)
The window panel cannot be installed in windows less than
20.5"(520mm) wide.
(1) Remove the adjustment panel from the window panel, and
cut the window
panel to the same width as the window.
(2) Open the window sash and place the window panel on the
window stool.
(3) Secure the window panel to the window stool with screws.
7.2 If the inner width of the window is between 20.5"(520mm)
and 37.4"(950mm)
inclusive.
(1) Open the window sash and place the window panel on the
window stool.
(2) Slide the adjustment panel to t the window stool width.
(3) Secure the window panel to the window stool with screws.
7.3 If the inner width of the window is between 37.4" (950mm)
and 56.7" (1440mm) inclusive.
(1) Attach the extension panel to the adjustment panel.
(2) Open the window sash and place the window panel on the
window stool.
(3) Slide the adjustment and extension panels to fi t the
window stool width.
(4) Secure the window panel to the window stool with screws.
adjusting panel
cut
clasp
rear connector (lower)
rear connector (upper)
oint B+C
nut
bolt
washer
rain shield
Cut
adjustment panel
Window panel assemble
Window panel
<20.5"
Window stool
Cut
adjustment panel
Window panel assemble
Window panel
<20.5"
Window stool
Screws
Extension panel
adjustment panel
Window panel assemble
37.4"~56.7"
Adjustment panel
Window panel assemble
adjustment panel
Screws
20.5"~37.4"
