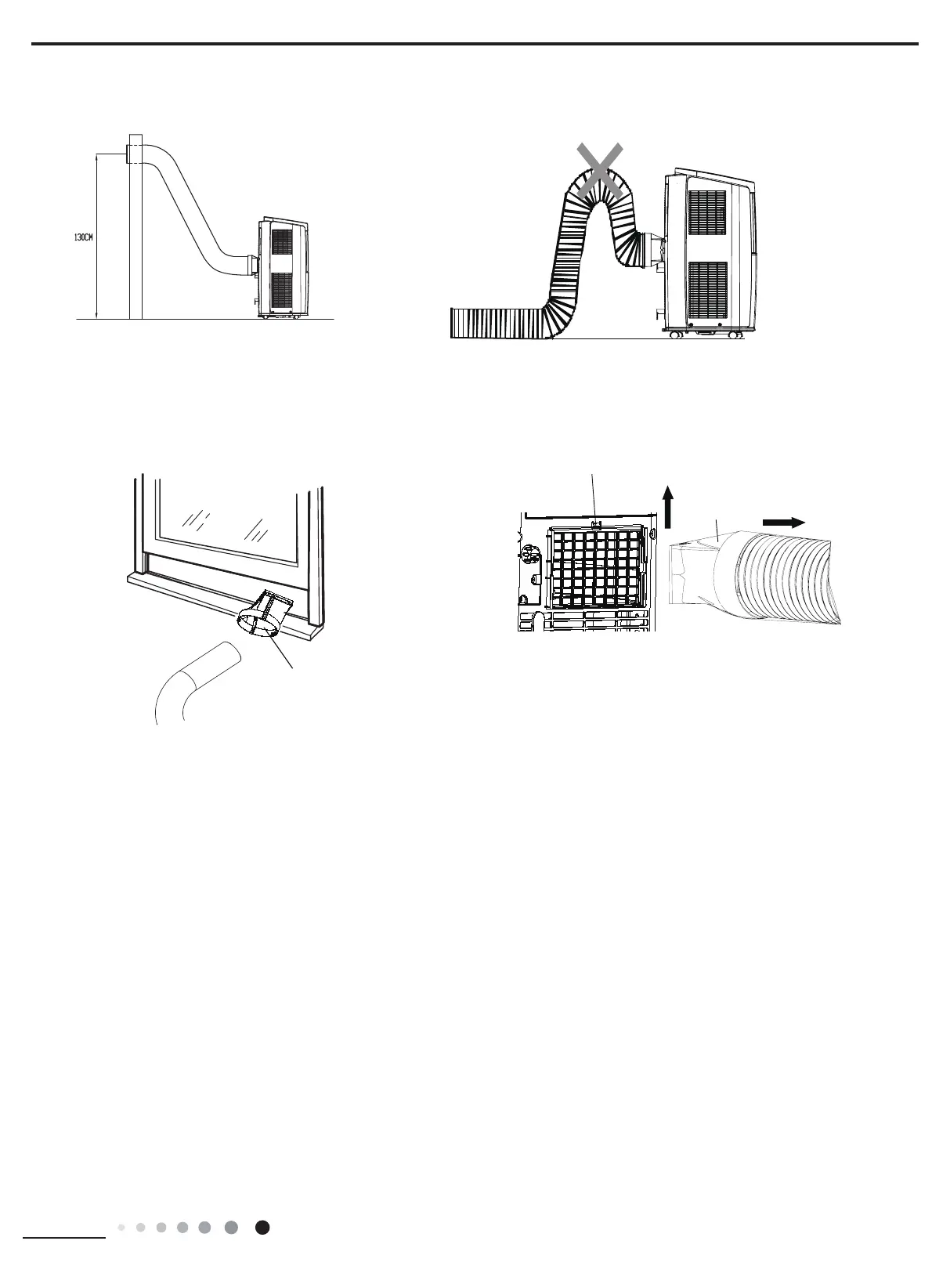

●Correct installation is as shown in gure (When installing it on wall, height of hall should be about 130cm from oor).(As shown in
Fig.15)
●Wrong installation is shown in following gure (If the pipe is bent too much, it would easily cause malfunction.(As shown in Fig.16)
Fig.15
Fig.16
Fig.17
Fig.18
B. Disassemble heat discharge pipe
(1) Remove joint B
remove joint B from joint C.(As shown in Fig.17)
(2) Remove joint A: Press the clasp and lift joint A upwards to remove it.(As shown in Fig.18)
upwards
disassemble
joint A
●Put through the power supply and then press ON/OFF button on remote controller to start the unit.
●Press mode button to select auto, cooling, drying, fan or heating function, and then check if the unit operates normally.
●If ambient temperature is below 16°C, the unit Can't operate in cooling mode.
9.6 Operation test
