42
Maintenance
Service Manual

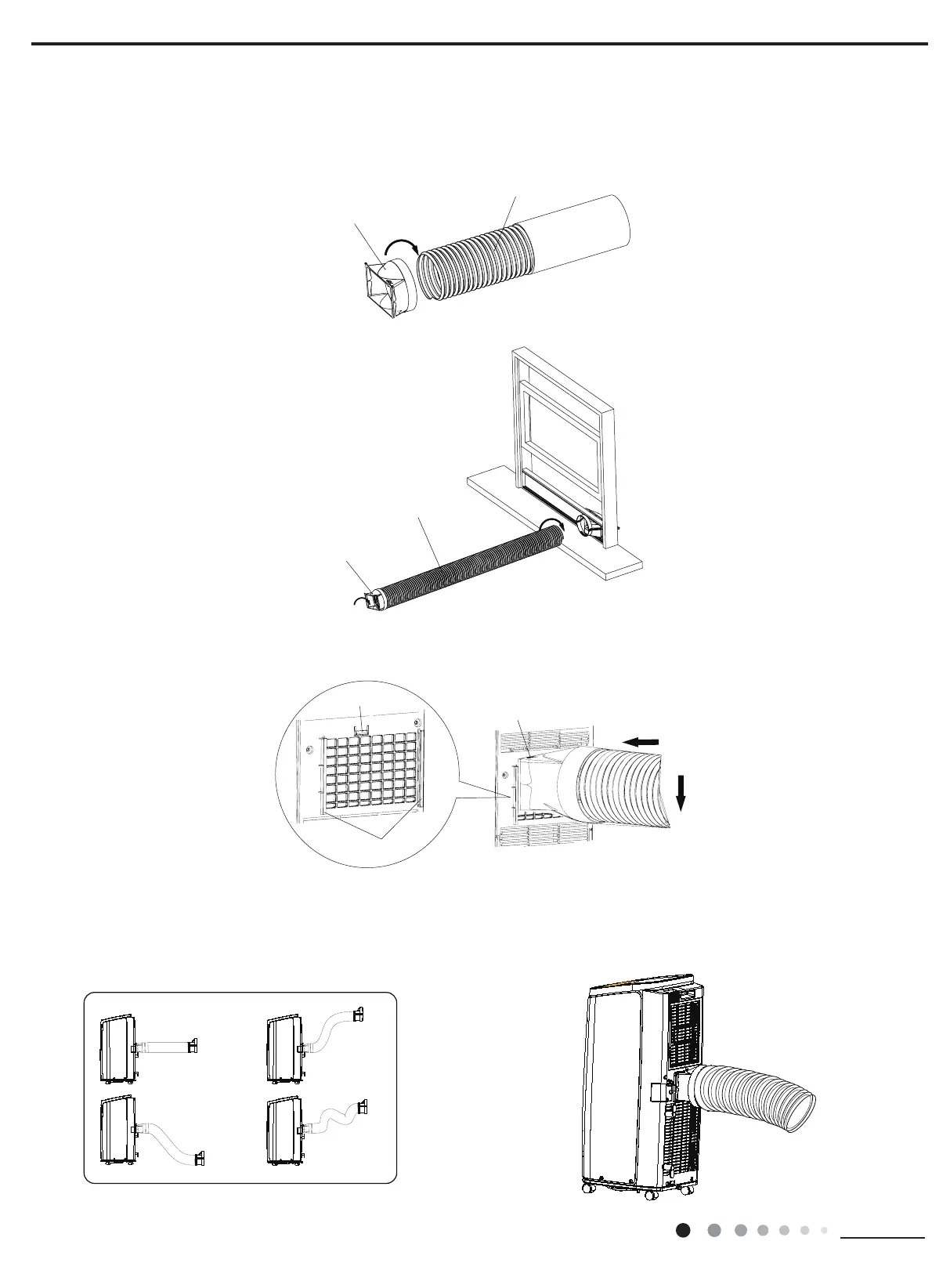

A. Install heat discharge pipe
1. Rotate joint A clockwise into the heat discharge pipe.
2. Install anather side of heat discharge pipe clockwise into protective grille sub-assy.
3. Insert joint A of heat discharge pipe (the side with "TOP" is upwards) into the groove until you hear a sound.
9.5 Installation and Disassembly of heat Discharge Pipe
In order to improve cooling efciency, the heat discharge pipe should be as short as possible and at without curve to ensure smooth
heat discharge.(As shown in Fig.13)
●The length of the heat discharge pipe is less than 1m. It is recommended to use it with shortest length.
●When installing,heat discharge pipe should be as at as possible. Don’t prolong the pipe or connect it with other heat discharge pipe.
(As shown in Fig.14)
Note of Install heat discharge pipe
correct correct
correct
wrong
Fig.14
Fig.13
clockwise
A
A
clockwise
Heat discharge pipe
groove
clasp
the side with "TOP" is upwards
To Next Page
