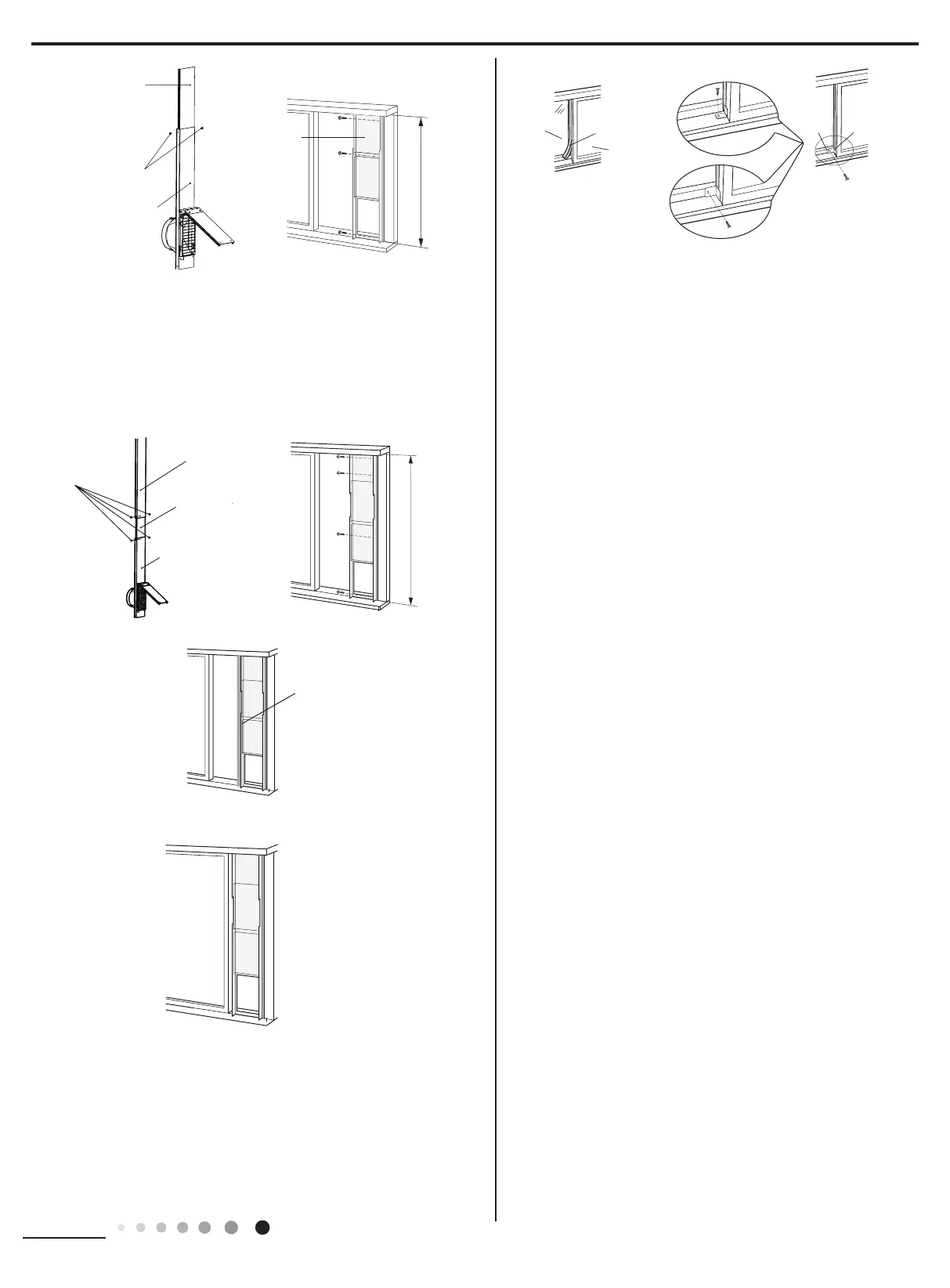

7.3 If the inner width of the window is between 37.4" (950mm) and
56.7" (1440mm) inclusive.
(1) Attach the extension panel to the adjustment panel.
(2) Open the window sash and place the window panel on the
window stool.
(3) Slide the adjustment and extension panels to t the window stool
height.
(4) Secure the window panel to the window stool with screws.
8. Cut the sponge B to a proper length and attach it to the window
panel.
9. Close the window securely against the window panel.
10. Cut the sponge A to a proper length and seal the gap between
left side of inner window sash and outer window sash.
11. Fix the inner window with window bracket and screw, so that it
can not slide horizontally.
Adjustment
panel
20.5"~37.4"
Screws
djustment panel
Window panel
assemble
Screws
Extension panel
adjustment panel
Window panel assemble
window
sash
outer window
sponge A
inner window
plastic window
wooden window
window bracket
