Front grill
Front grill
Filter sub-assy 2
Filter Sub-assy 2

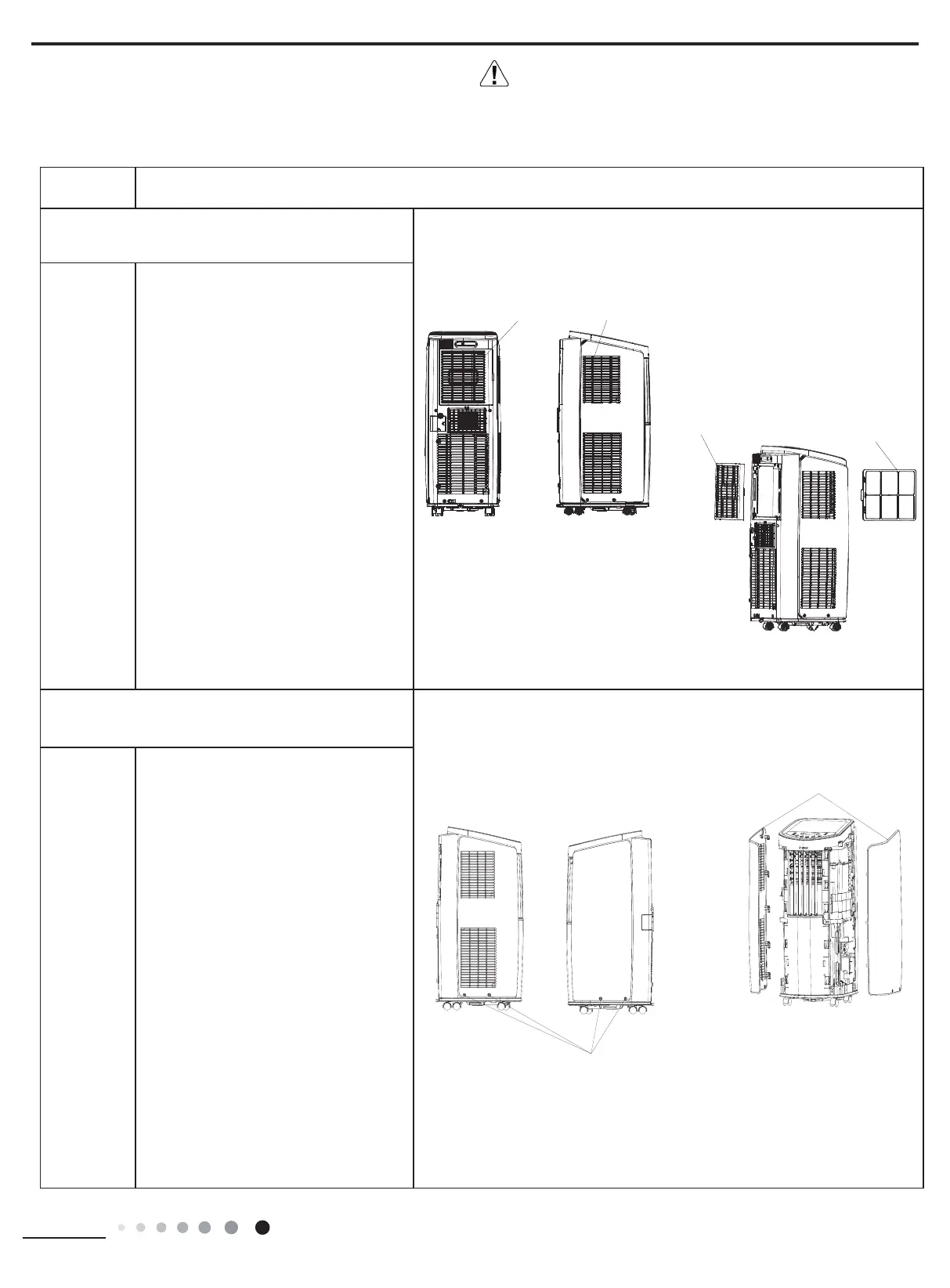

1.Remove front grill and lter sub-assy 2
2. Remove left & right side plate
Pull the lter sub-assy 2 outward by
hand to remove the lter.
Step Procedure
Srews
Left and right side plate
Remove left side plate: unscrew 2
screws as diagram shown to remove
left side plate.
Remove right side plate: unscrew
2 screws of right side plate to remove it.
12. Removal Procedure
Prohibit disassembling and maintaining
the refrigeration system pipeline and parts
(include evaporator, condenser, compressor,
capillary, 4-way valve, etc.)
