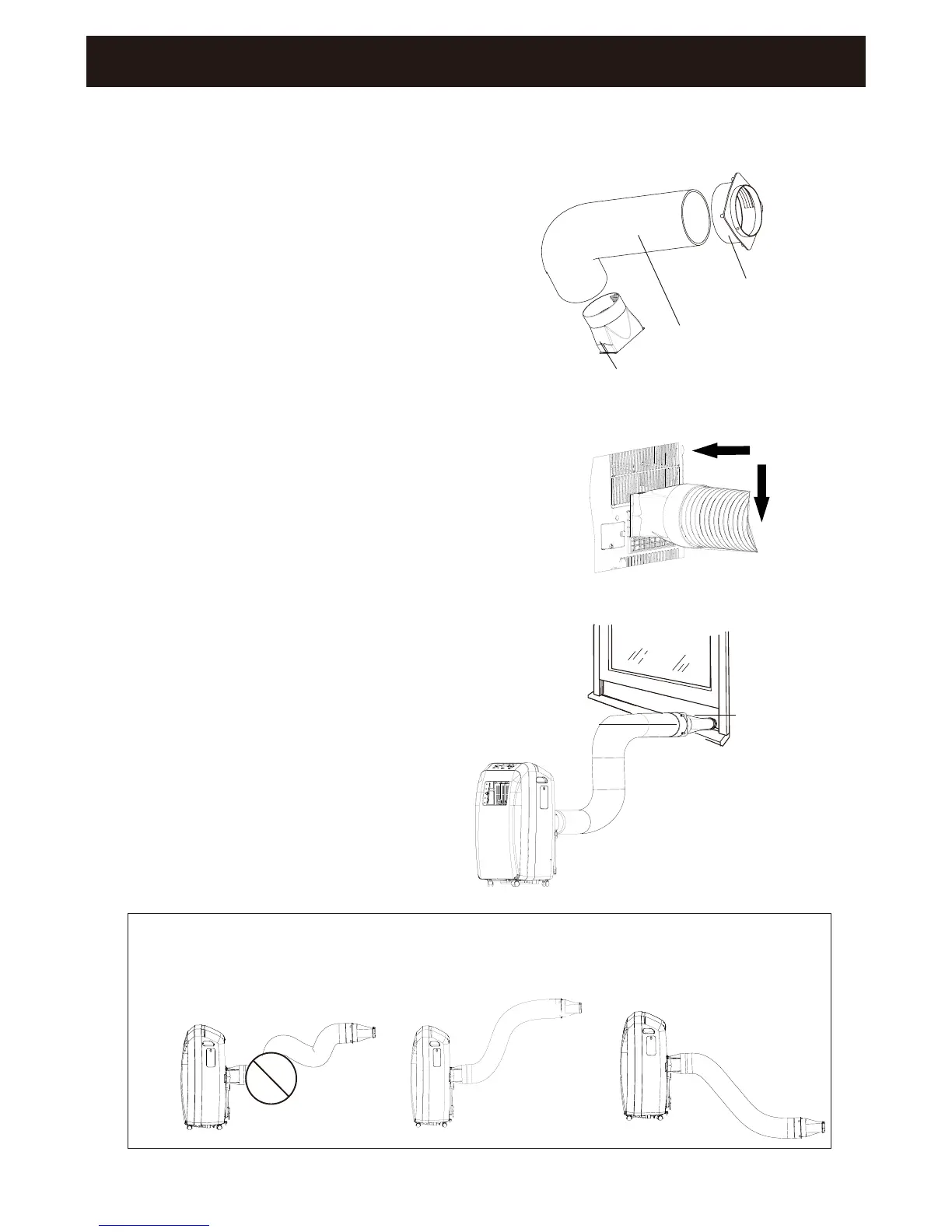

Installation of the exhaust hose
1
Attach the window exhaust adapter B
and C to the exhaust hose.
Extend both ends of the exhaust hose
and insert them into the window exhaust
adapter A and B respectively, and turn
them until they stop. Make sure they are
securely attached.
2
Attach the window exhaust adapter A to
the unit.
Insert the two projections on the window
exhaust adapter A into the two holes on
the unit, and firmly attach them to each
other.
3
Attach the exhaust hose.
Insert the window exhaust adapter B to the
window exhaust adapter C in the window
panel and turn it to lock it in place.
-13-
7KHH[KDXVWKRVHVKRXOGEHDVVKRUWDVSRVVLEOHIRURSHUDWLRQDOHI¿FLHQF\KRZHYHU
it must not be twisted or bent.
Unacceptable
Acceptable
Acceptable
INSTALLATION AND REMOVAL OF THE EXHAUST HOSE
Exhaust hose
Window exhaust adapter B
Window exhaust adapter A
window exhaust adapterB
Window exhaust
adapter
1
2
C
