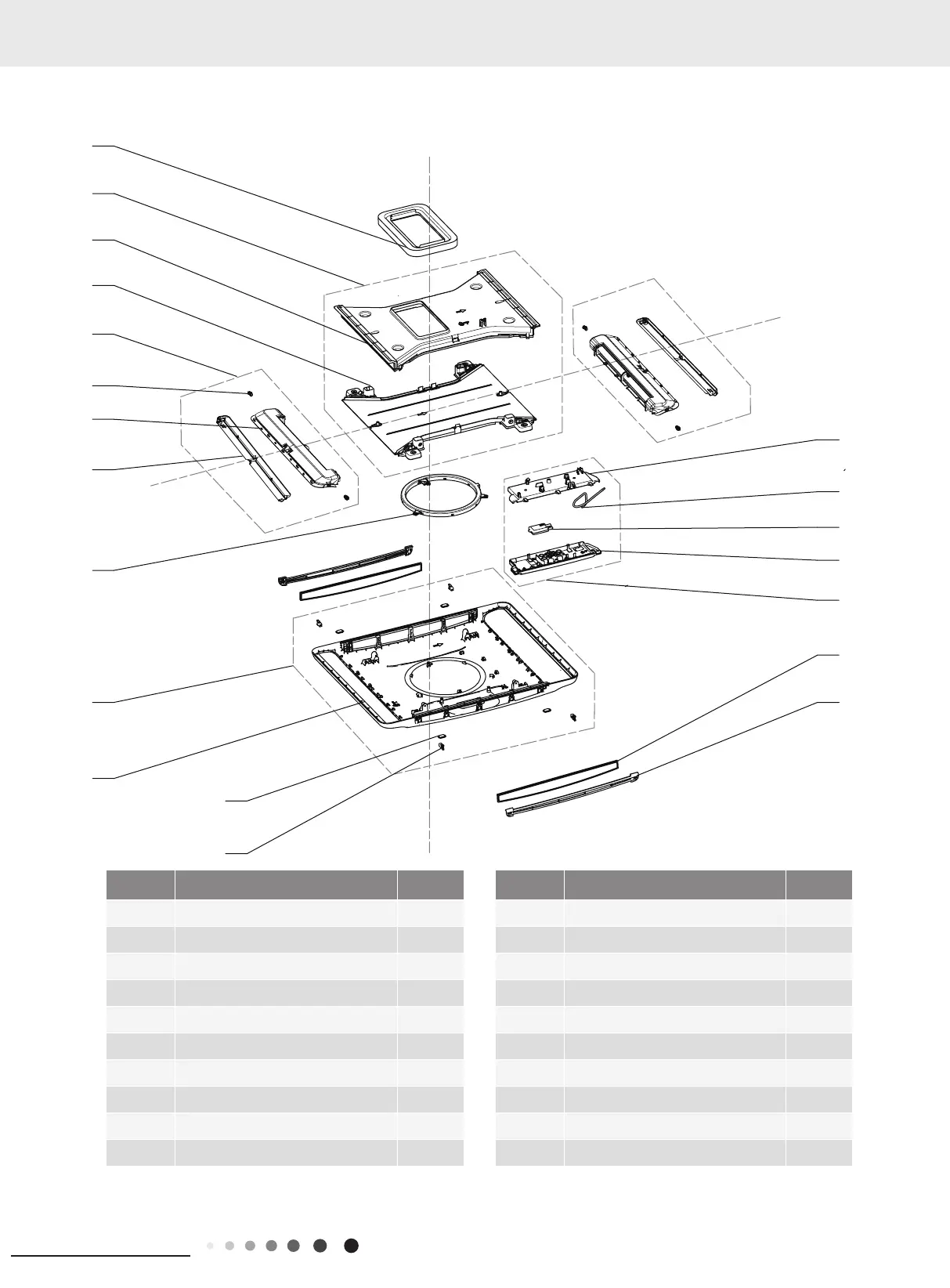

10. Exploded View and Parts List
10.1 Indoor Unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NO. Description Qty NO. Description Qty
1 Foam 1 11 Front Panel 1
2 Air Duct Sub-assy 1 12 Magnet Sub-assy 4
3 Air Outlet Mid-panel 1 13 Latch 4
4 Base Plate 1 14 Front Grill 2
5 Air Outlet Frame Sub-assy 2 15 Healthy Filter 2
6 Shaft of Guide Louver 1 16 Display Board 1
7 Air Outlet Frame 1 17 Display Box 1
8 Guide Louver 1 18 Detecting Plate 1
9 Display Module 1 19 Temperature Sensor 1
10 Front Panel Sub-Assy 1 20 Display Box Cover 1
Some models may not contain some parts,
please refer to the actual product.
