Technical Information

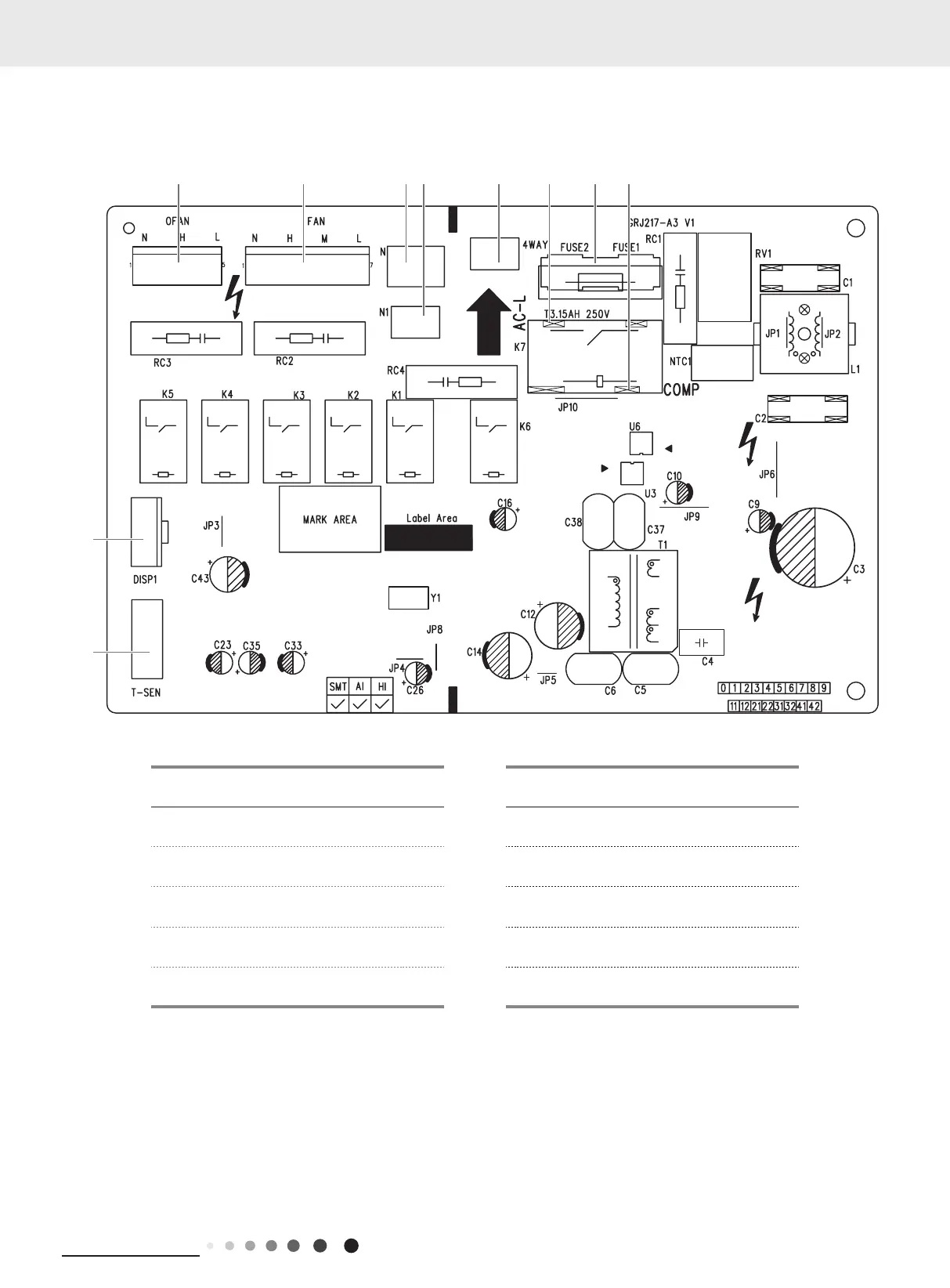

5.2 PCB Printed Diagram
Silk screen on main board
No. Name No. Name
1 Control terminal of outdoor fan motor 6 Live wire terminal
2 Control terminal of indoor fan motor 7 Fuse
3 Neutral wire terminal 8 Wiring terminal of compressore
4 Neutral wire terminal 9 Display terminal
5 Control terminal of 4-way valve 10 Temperature sensor terminal
1234
56 87
9
10
