42
Installation and Maintenance
Step Procedure

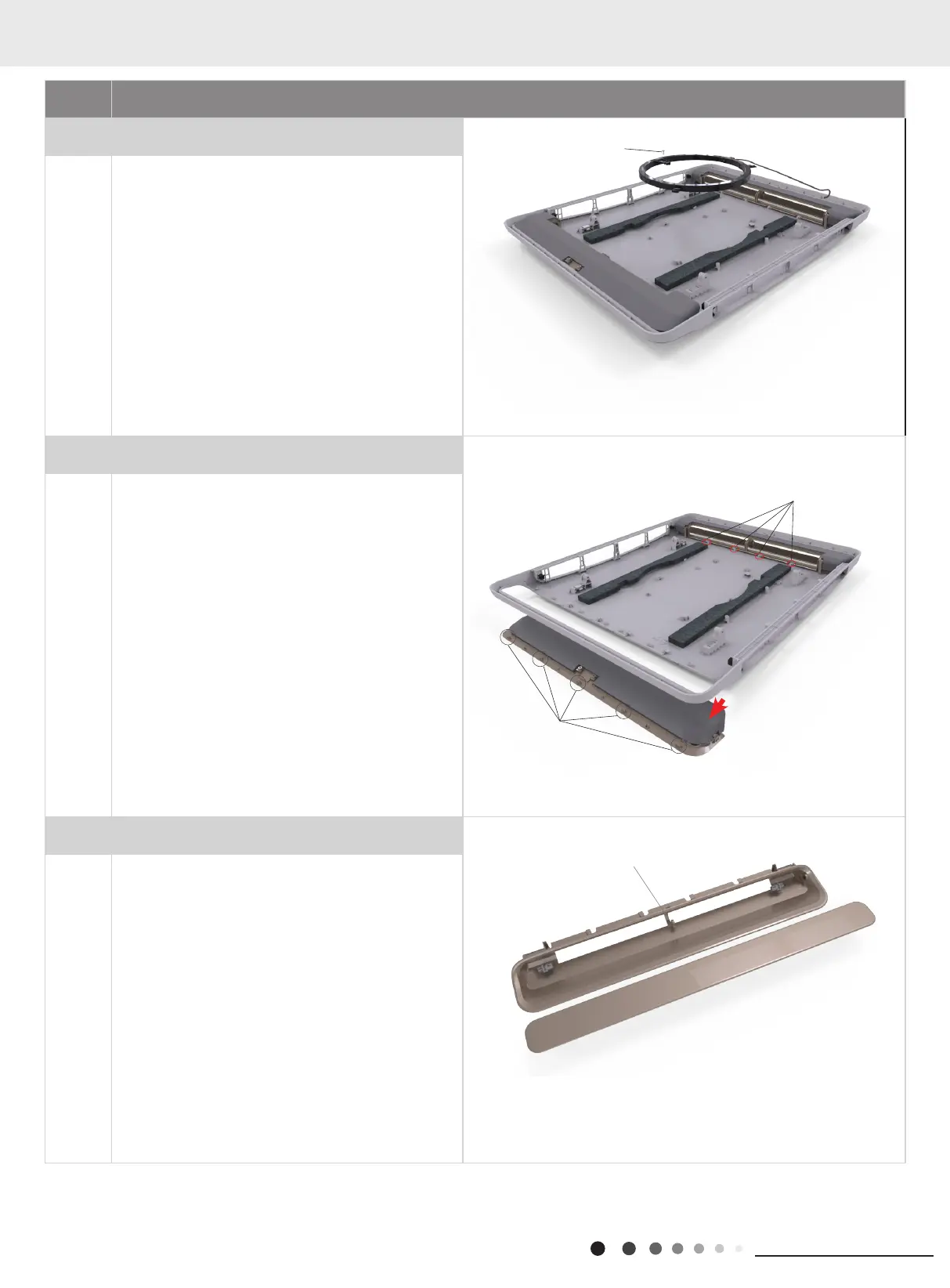

7.Remove display module
Loose 1 screw as shown in the gure, and rotate the
display module in clockwise direction to remove it.
8. Remove air-outlet frame sub-assy
Press inwards to press out the 5 clasps on the outside
of the air-outlet frame sub-assy, so that the clasps out
of the panel and pull down, so that the inside 4 limit
clasps out can remove the air-outlet frame sub-assy.
Remove another air-outlet frame sub-assy in the same
way.
9. Remove guide louver and shaft of guide louver
Loose the middle clasp, remove the horizontal louver
outwards and then remove the shaft of horizontal louver
at both ends.
clasp
clasp
clasp
Screw
To Next Page
