Installation and Maintenance
Procedure
Steps

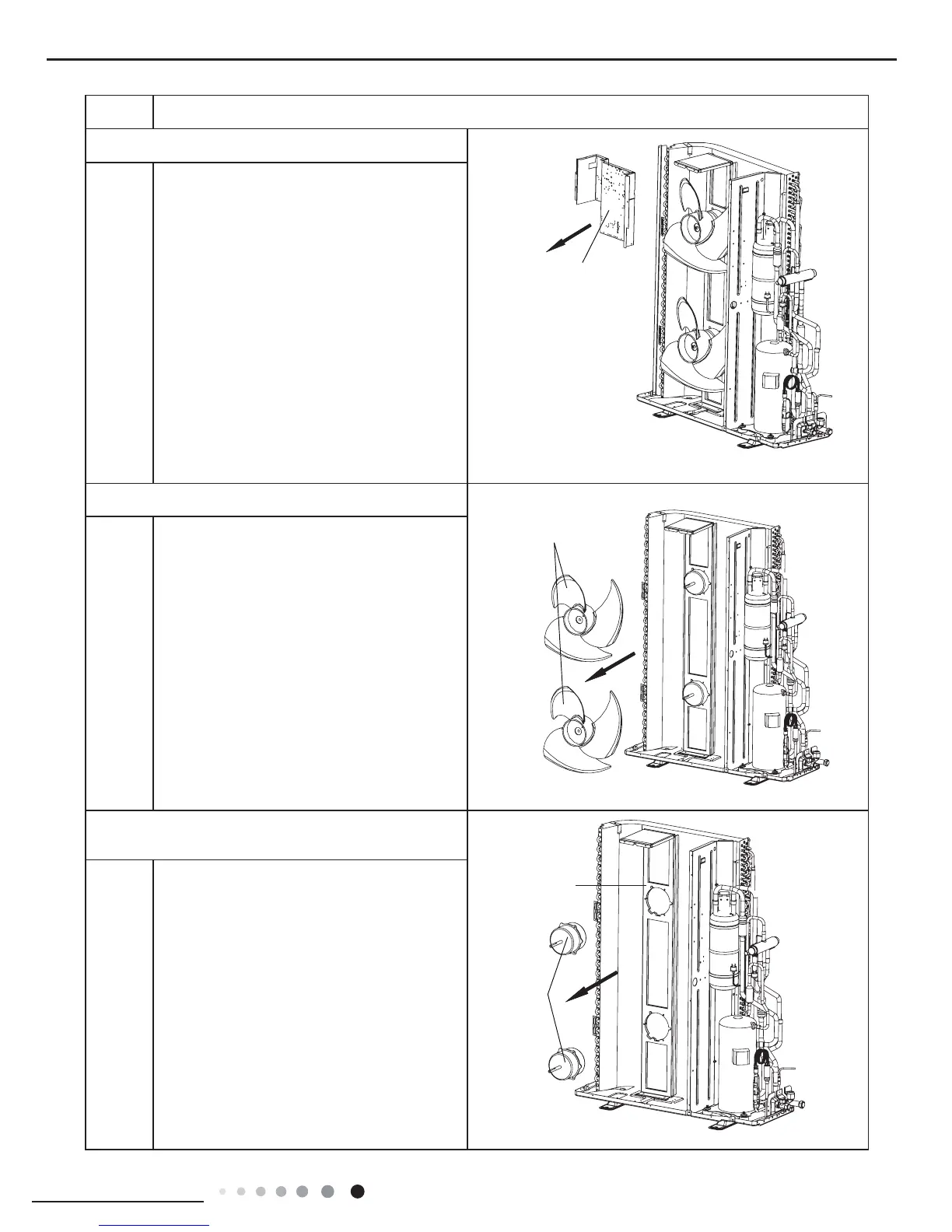

6.Remove electric box
7.Remove axial ow blade
8.Remove motor and motor support
Pull out the connection wires for motor,
compressor and temperature sensor, remove
screws on the wiring board and screws used
for xing the electric box, and then remove the
electric box.
Use wrench to loosen the nuts used for xing
the axial ow blade, take out the nut and the
washer in turn, and then the axial ow blade
can be taken out.
Remove screws used for xing the motor
and then remove the motor.
Remove the screws used for xing the
motor support, and then lift the motor
support to remove it.
Electric box
Motor
Motor support
Axial ow blade
