Installation and Maintenance
Service Manual

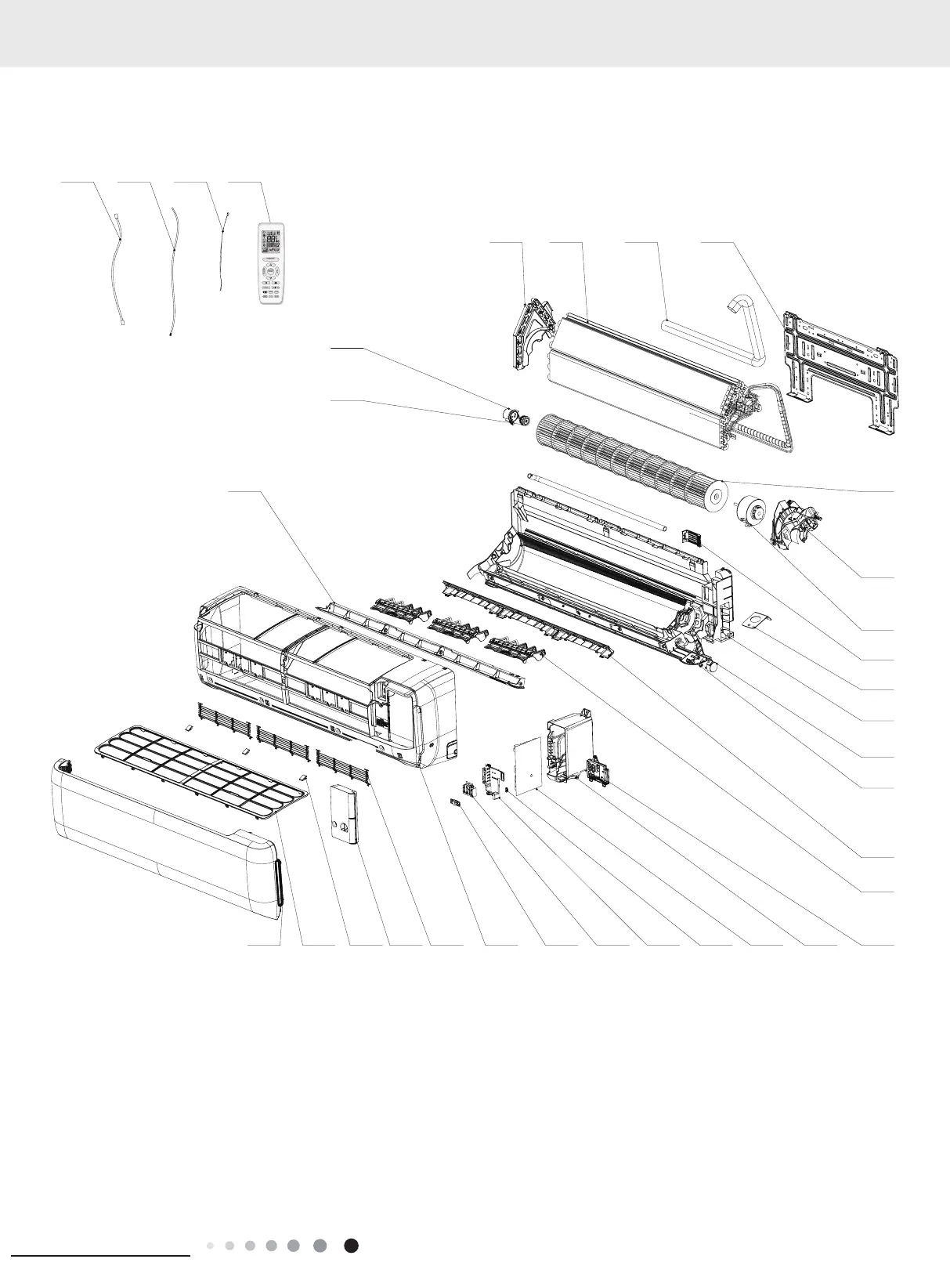

The component picture is only for reference; please refer to the actual product.
4LIV24HP230V1AH
31
30
29
28
1
2
3
4
5
7
8
9
10
11
12
13
15
17
16
18
19
21
20
22
27
26
25
24
14
33
32
6
23
34
TURBO
FAN
MODE
ON/OFF
I FEEL
T-ON T-OFF
TEMP
CLOCK
LIGHT
WiFi
SLEEP
TURBO
FAN
MODE
ON/OFF
I FEEL
T-ON T-OFF
TEMP
CLOCK
LIGHT
WiFi
SLEEP
89
91
Table of Contents
Table of Contents
2
Part I : Technical Information
4
Summary
4
Specifications
6
Specification Sheet
6
Capacity Variation Ratio According to Temperature
18
Cooling and Heating Data Sheet in Rated Frequency
19
Outline Dimension Diagram
21
Indoor Unit
21
Outdoor Unit
22
Refrigerant System Diagram
24
Electrical Part
26
Wiring Diagram
26
PCB Printed Diagram
30
Function and Control
36
Remote Controller Introduction
36
GREE+ App Operation Manual
41
Ewpe Smart App Operation Manual
42
Brief Description of Modes and Functions
43
Part II : Installation and Maintenance
51
Notes for Installation and Maintenance
51
Installation
54
Installation Dimension Diagram
54
Installation Parts-Checking
56
Selection of Installation Location
56
Electric Connection Requirement
56
Installation of Indoor Unit
56
Installation of Outdoor Unit
58
Vacuum Pumping and Leak Detection
60
Check after Installation and Test Operation
60
Maintenance
61
Error Code List
61
Procedure of Troubleshooting
67
Troubleshooting for Normal Malfunction
84
Exploded View and Parts List
86
Indoor Unit
86
Outdoor Unit
92
Removal Procedure
98
Removal Procedure of Indoor Unit
98
Removal Procedure of Outdoor Unit
103
Appendix
116
Appendix 1: Reference Sheet of Celsius and Fahrenheit
116
Appendix 2: Configuration of Connection Pipe
116
Appendix 3: Pipe Expanding Method
117
Appendix 4: List of Resistance for Temperature Sensor
118
