98
Installation and Maintenance
Service Manual
Step Procedure

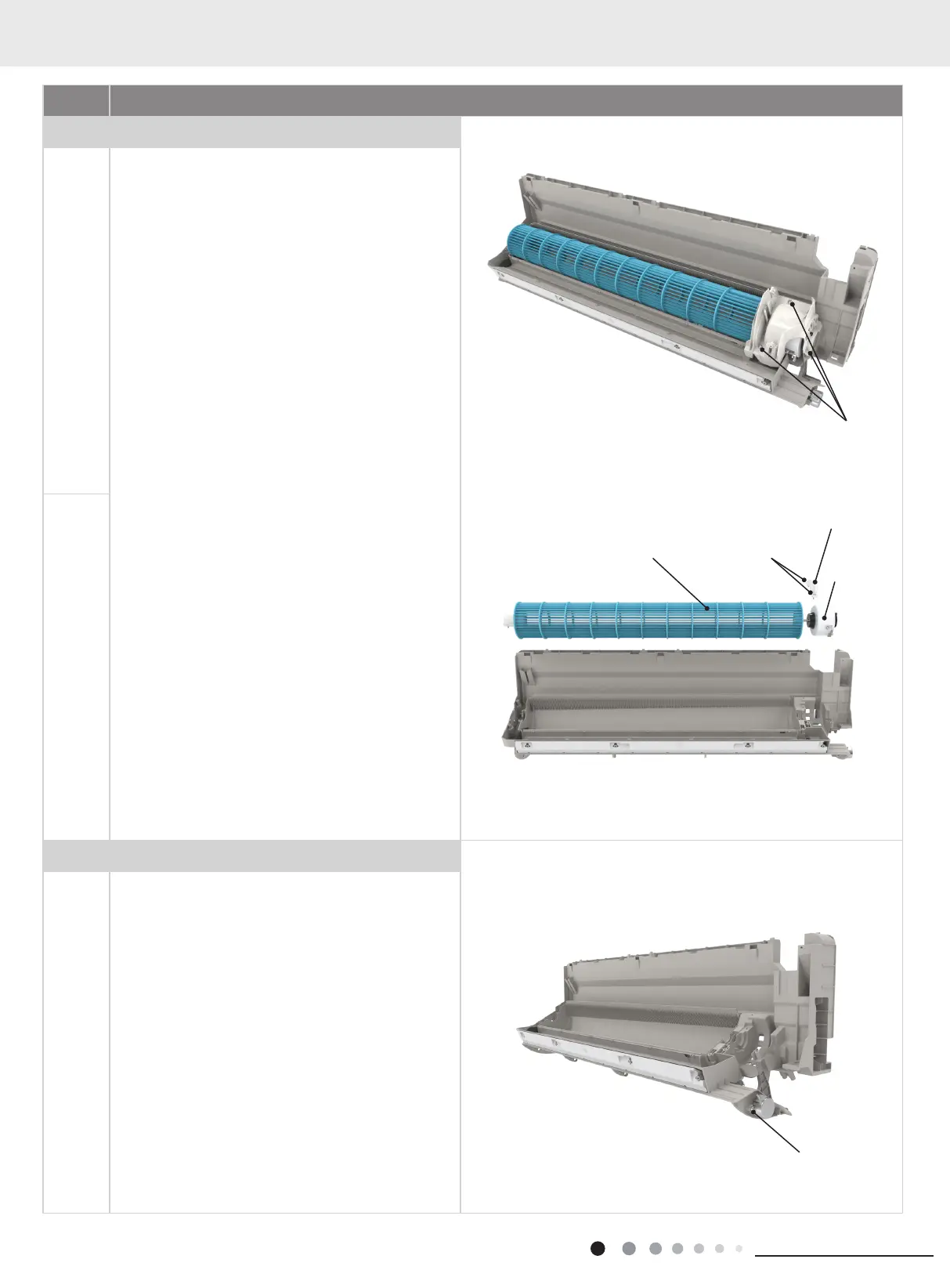

8. Remove motor and cross ow fan
a
Remove 3 screws xing motor clamp and then remove
the motor clamp.
Remove 2 screws fixing motor fixed clip and then
remove motor xed clip, cross ow fan and motor.
b
9. Remove swing motor
Screw off the screw that are locking the swing motor
and take the motor off.
Screws
ScrewsCross ow fan
Motor xed clip
Motor
Screw
To Next Page
