108
Installation and Maintenance
Service Manual

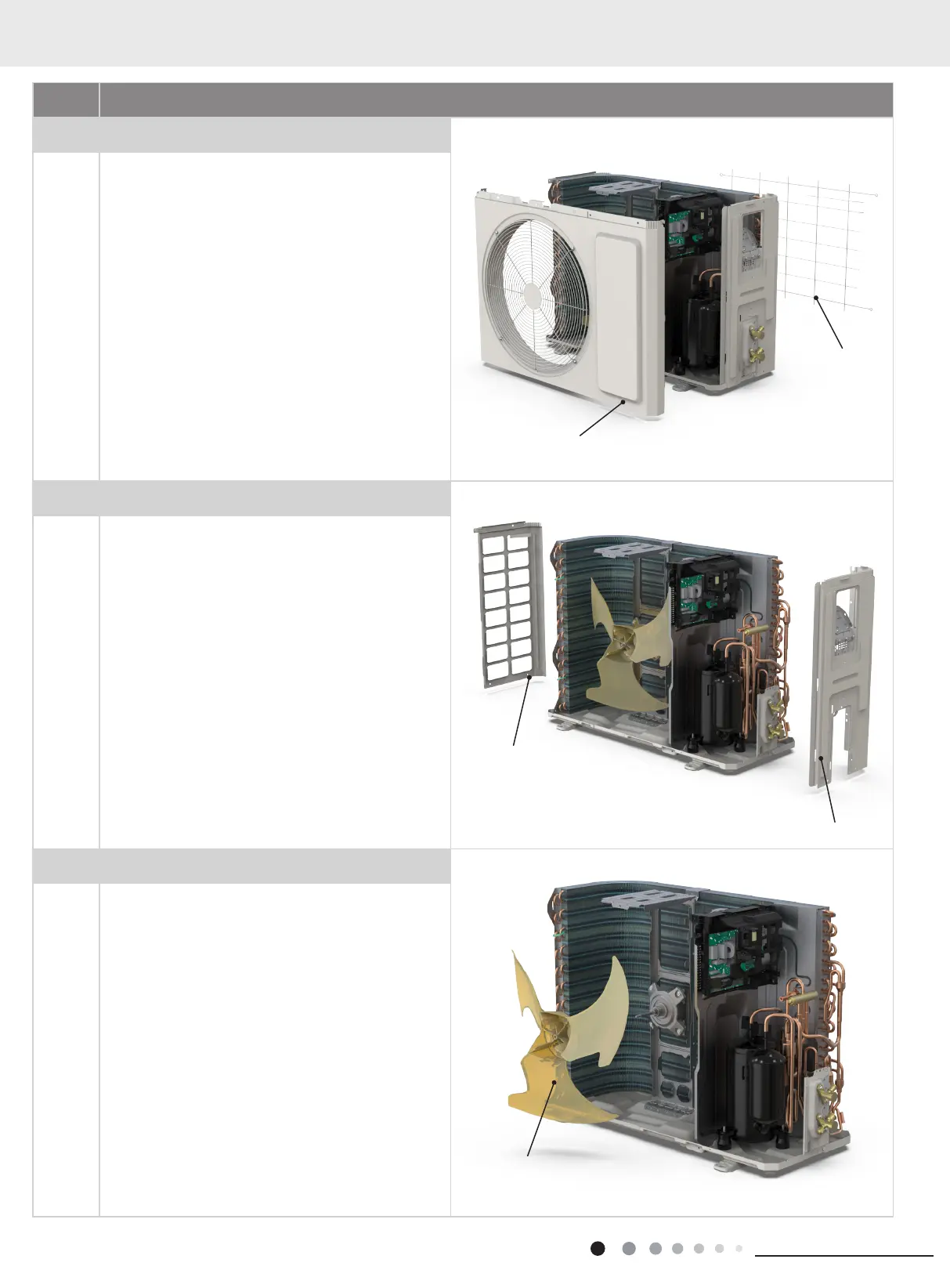

Step Procedure
4. Remove front panel assy and Rear Grill
Remove connection screws connecting the front panel
assy and Rear Grill, and then remove the front panel
assy and Rear Grill.
5. Remove right side plate assy and left side plate
Rescrew the ground screws, remove the ground wires,
loosen the screws fixing terminal board, remove the
terminal board, rescrew the screws xing the right side
plate, and remove the right side plate assy.
Rescrew the screws fixing the left side plate, and
remove the left side plate assy.
6. Remove axial ow fan
Remove the nut on the fan and then remove the axial
ow fan.
Front panel
Right side plate
Axial ow fan
Rear Grill
Left side plate
To Next Page
