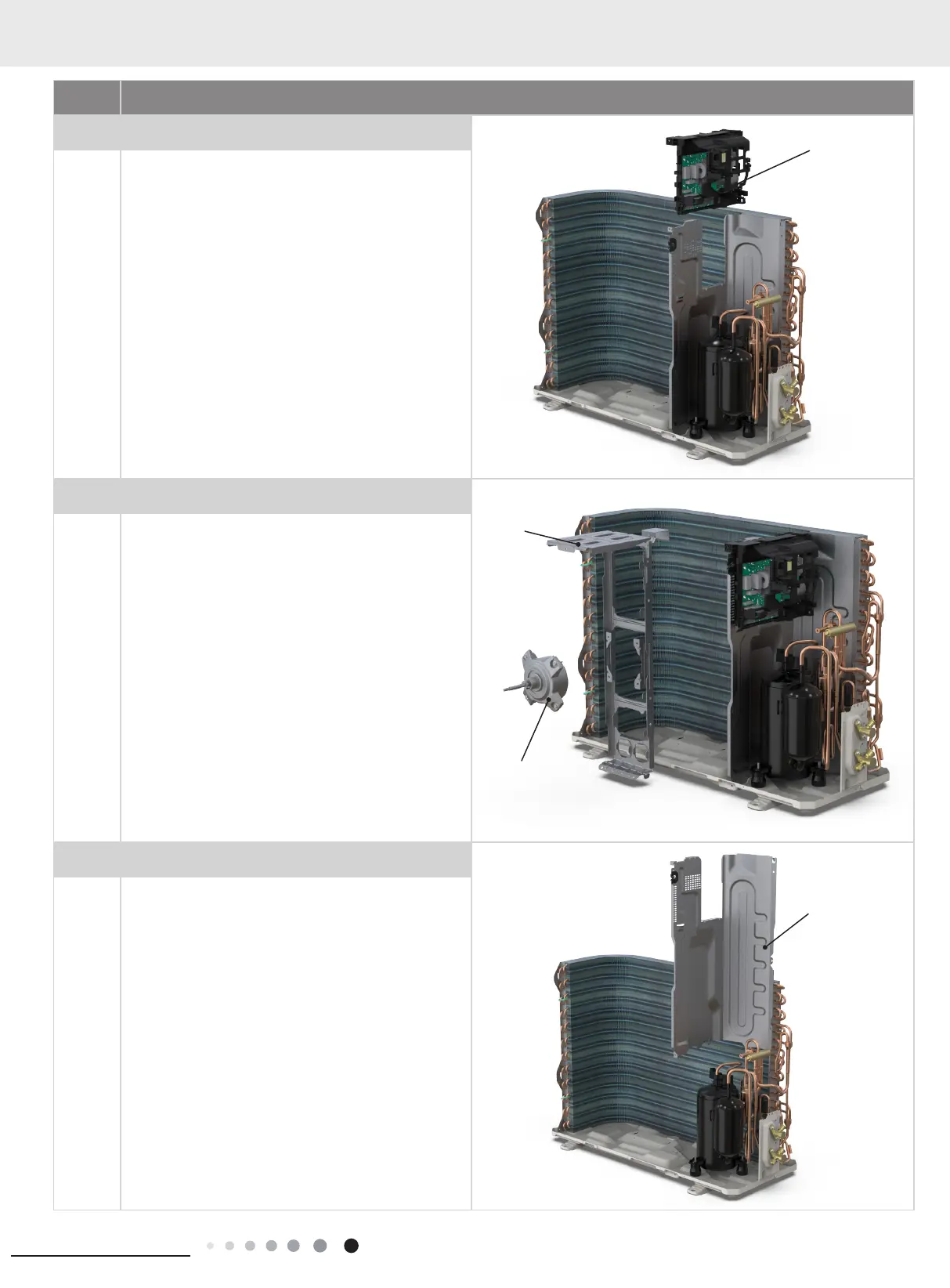

7. Remove electric box assy
Remove the terminals, lift up and rotate the electrical
box assy to the right so that the snaps on the clapboard
are removed and the electrical box assy are removed.
8. Remove motor and motor support
Remove the screws xing the motor and then remove
the motor.
Remove the screws xing the motor support and lift the
motor support to remove it.
9. Remove clapboard assy
Remove the screws xing the clapboard assy and then
remove the clapboard assy.
Motor support
Motor
Clapboard assy
Electric box assy
