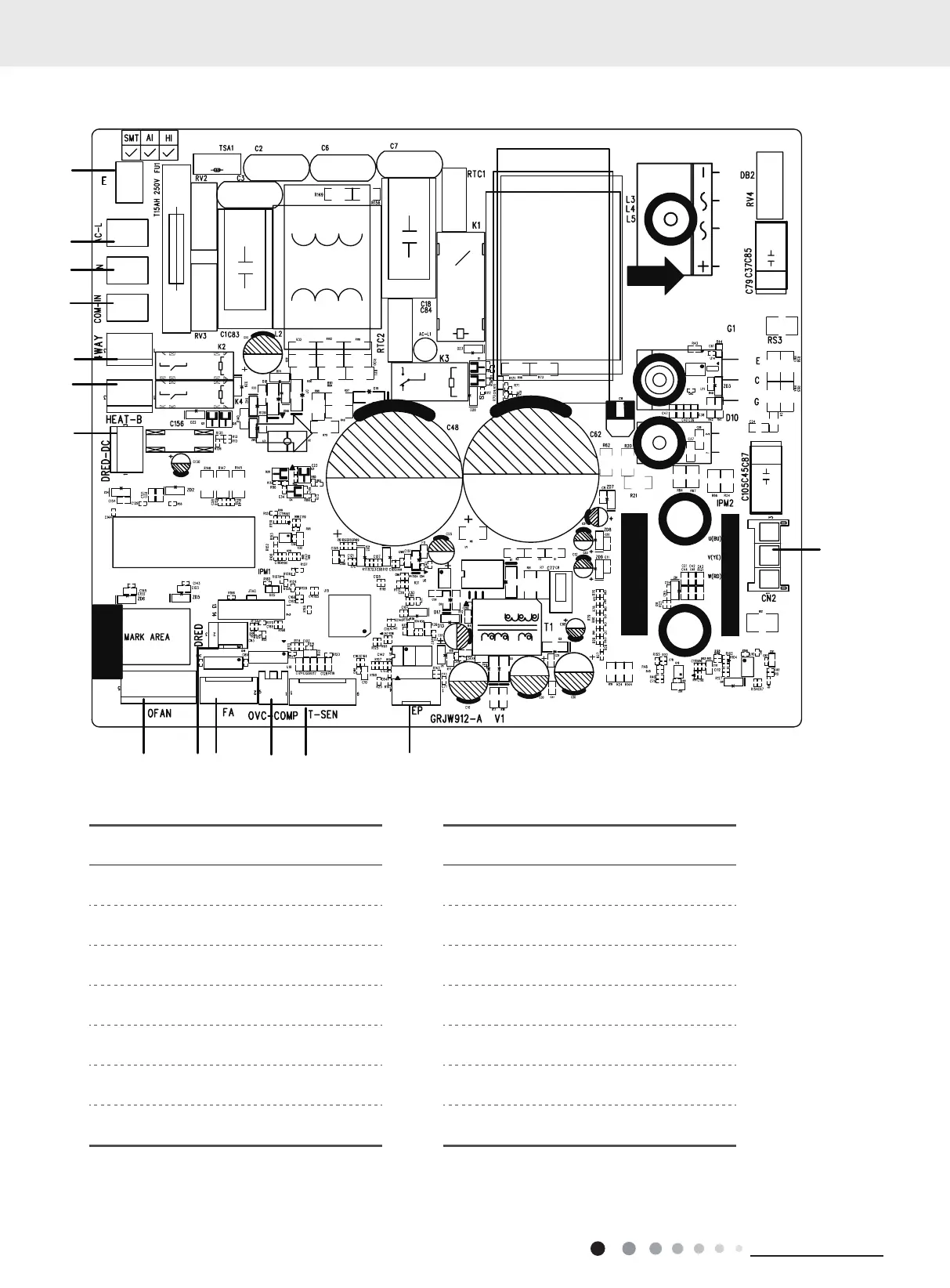

30
T
echnical Information
Service Manual
18K
No.
Name
No.
Name
1
Earthing wire
8
Outdoor fan
2
Live wire
9
DRED(Reserved)
3
Neutral wire
10
Electronic expansion valve
4
Communication wire
11
Compressor Overload
5
4-way valve
12
T
emperature sensor
6
Electric heating of chasssis
13
EE Flash drives
7
DRED-DC(Reserved)
14
Compressor
89
10
11
12
13
1
2
3
4
5
6
7
14
32
34
Table of Contents
Table of Contents
2
Part I : Technical Information
4
Summary
4
Specifications
6
Specification Sheet
6
Capacity Variation Ratio According to Temperature
18
Cooling and Heating Data Sheet in Rated Frequency
19
Outline Dimension Diagram
20
Indoor Unit
20
Outdoor Unit
21
Refrigerant System Diagram
23
Electrical Part
25
Wiring Diagram
25
PCB Printed Diagram
29
Function and Control
35
Remote Controller Introduction
35
GREE+ App Operation Manual
40
Ewpe Smart App Operation Manual
41
Brief Description of Modes and Functions
42
Part II : Installation and Maintenance
50
Notes for Installation and Maintenance
50
Installation
53
Installation Dimension Diagram
53
Installation Parts-Checking
55
Selection of Installation Location
55
Electric Connection Requirement
55
Installation of Indoor Unit
55
Installation of Outdoor Unit
57
Test and Operation
59
Leakage Detection
59
Check after Installation and Test Operation
59
Maintenance
60
Error Code List
60
Procedure of Troubleshooting
66
Troubleshooting for Normal Malfunction
83
Exploded View and Parts List
85
Indoor Unit
85
Outdoor Unit
91
Removal Procedure
97
Removal Procedure of Indoor Unit
97
Removal Procedure of Outdoor Unit
102
Appendix
115
Appendix 1: Reference Sheet of Celsius and Fahrenheit
115
Appendix 2: Configuration of Connection Pipe
115
Appendix 3: Pipe Expanding Method
116
Appendix 4: List of Resistance for Temperature Sensor
117
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Gree GWC12ATCXB-A3DNA1C/I and is the answer not in the manual?
Ask a question
Gree GWC12ATCXB-A3DNA1C/I Specifications
General
Brand
Gree
Model
GWC12ATCXB-A3DNA1C/I
Category
Heat Pump
Language
English
