31
T
echnical Information
Service Manual
1
2
3
4
56
78
91
01
11
21
3
14

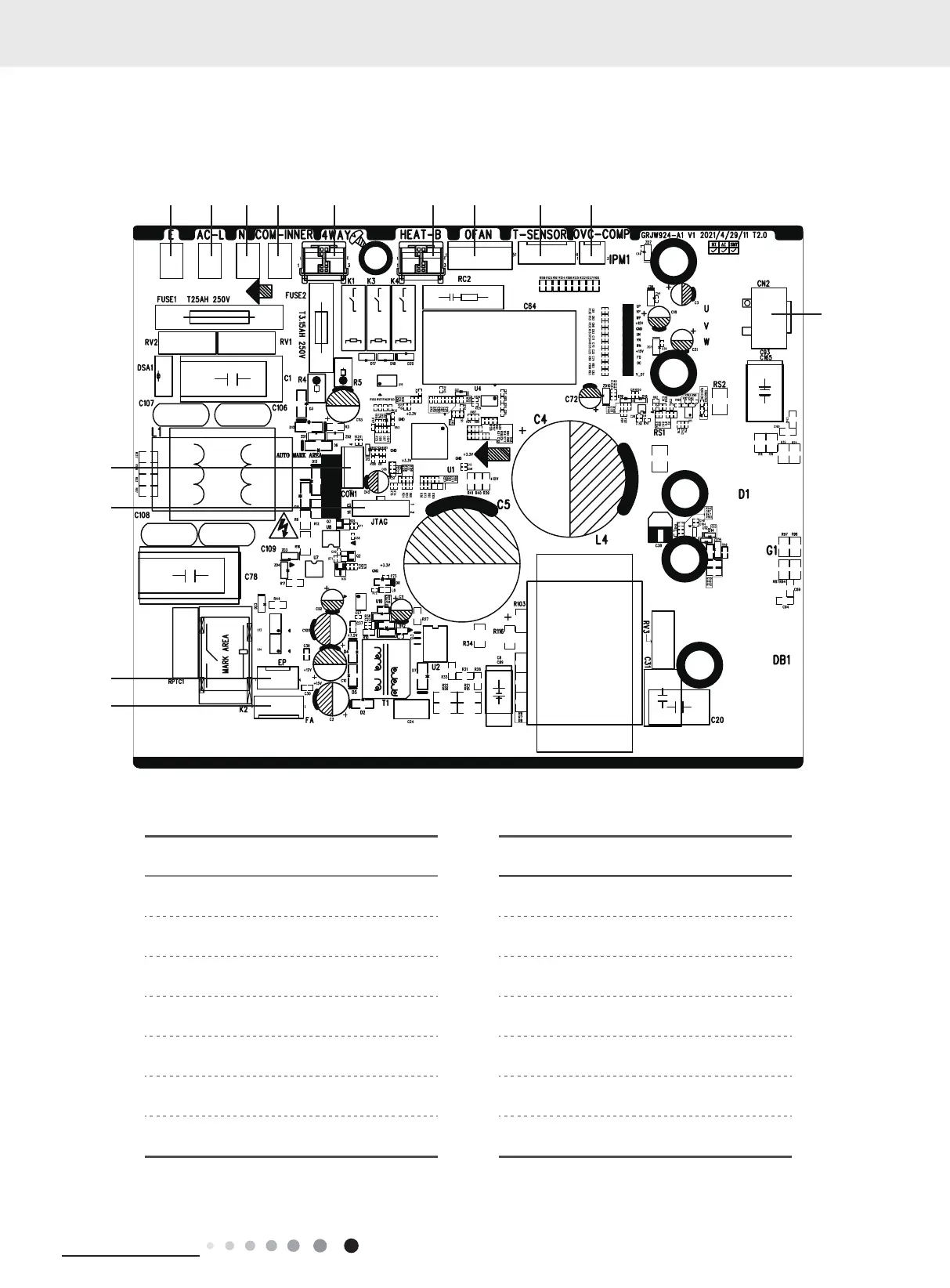

No.
Name
No.
Name
1
Electronic expansion valve
8
Communication wire
2
E disk
9
4-way valve
3
Program debug interface
10
Electric heating of chasssis
4
Interface monitoring
11
AC fan
5
Earthing wire
12
T
emperature sensor
6
Live wire
13
Overload of compressor
7
Neutral wire
14
Compressor terminal
24K
33
35
Table of Contents
Table of Contents
2
Part I : Technical Information
4
Summary
4
Specifications
6
Specification Sheet
6
Capacity Variation Ratio According to Temperature
18
Cooling and Heating Data Sheet in Rated Frequency
19
Outline Dimension Diagram
20
Indoor Unit
20
Outdoor Unit
21
Refrigerant System Diagram
23
Electrical Part
25
Wiring Diagram
25
PCB Printed Diagram
29
Function and Control
35
Remote Controller Introduction
35
GREE+ App Operation Manual
40
Ewpe Smart App Operation Manual
41
Brief Description of Modes and Functions
42
Part II : Installation and Maintenance
50
Notes for Installation and Maintenance
50
Installation
53
Installation Dimension Diagram
53
Installation Parts-Checking
55
Selection of Installation Location
55
Electric Connection Requirement
55
Installation of Indoor Unit
55
Installation of Outdoor Unit
57
Test and Operation
59
Leakage Detection
59
Check after Installation and Test Operation
59
Maintenance
60
Error Code List
60
Procedure of Troubleshooting
66
Troubleshooting for Normal Malfunction
83
Exploded View and Parts List
85
Indoor Unit
85
Outdoor Unit
91
Removal Procedure
97
Removal Procedure of Indoor Unit
97
Removal Procedure of Outdoor Unit
102
Appendix
115
Appendix 1: Reference Sheet of Celsius and Fahrenheit
115
Appendix 2: Configuration of Connection Pipe
115
Appendix 3: Pipe Expanding Method
116
Appendix 4: List of Resistance for Temperature Sensor
117
