91
Installation and Maintenance
Service Manual

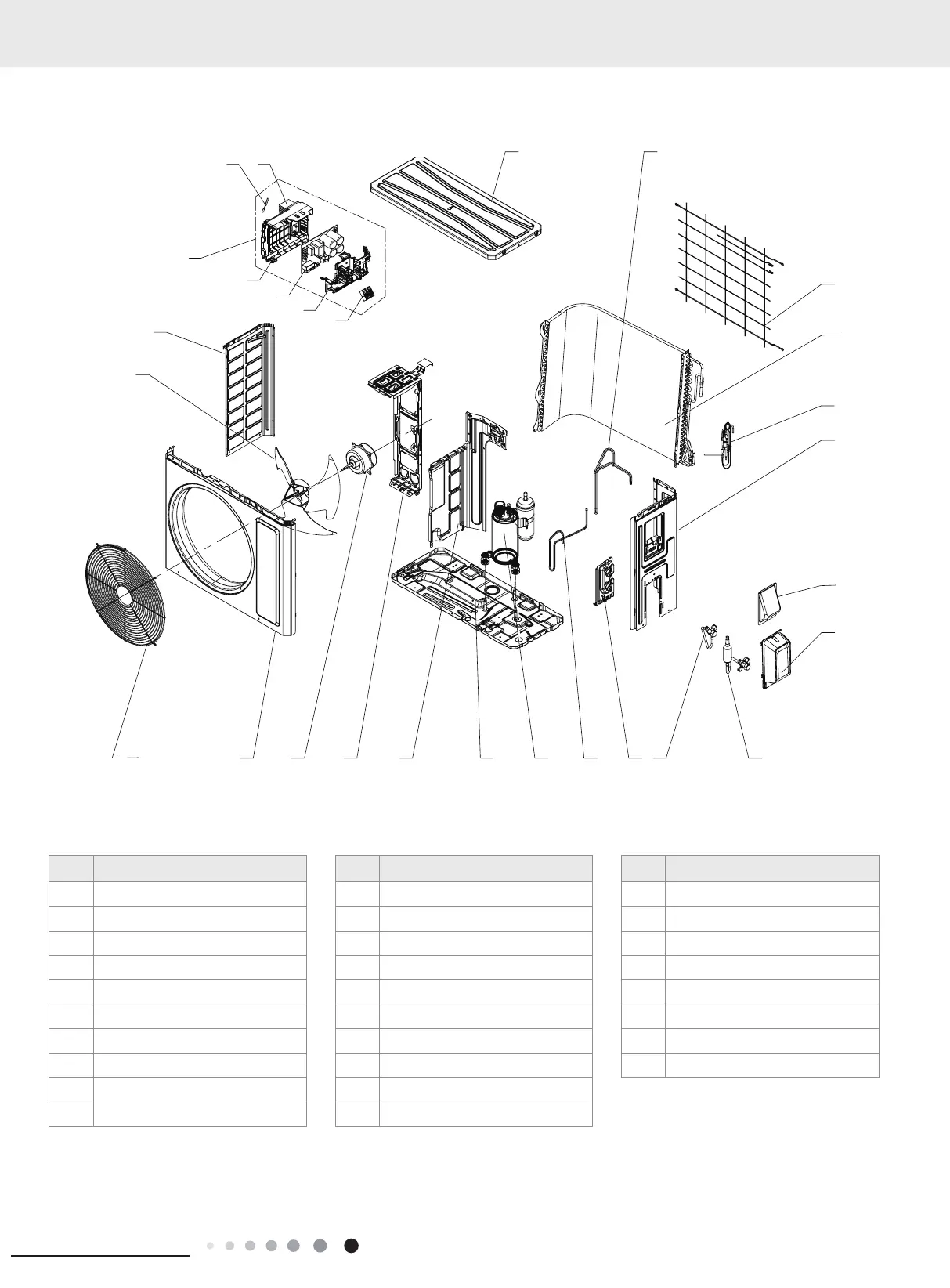

The component picture is only for reference; please refer to the actual product.
NO. Description
1 Coping
2 Rear Grill
3 Condenser Assy
4 Capillary Sub-Assy
5 Right Side Plate
6 Cover of Pass Wire
7 Valve Cover
8 Cut-off valve Sub-Assy
9 Cut-off valve
10 Valve Support
NO. Description
11 Discharge Tube
12 Compressor and Fittings
13 Chassis Sub-Assy
14 Clapboard
15 Motor Support
16 Brushless DC Motor
17 Cabinet
18 Front Grill
19 Axial Flow Fan
20 Left Side Plate
NO. Description
21 Electric Box Assy
22 Electric Box
23 Main Board
24 Electric Box Cover
25 Terminal Board
26 Temperatue Sensor
27 Radiator
28 Inhalation Tube
Some models may not contain some parts, please refer to the actual product.
2
5
20
19
25
24
23
22
18
27
4
26
21
7
6
GWC12ATCXB-A3DNA1C/O GWC12ATCXB-D3DNA1C/O GWC09ATCXB-D3DNA1A/O GWC09ATCXB-A3DNA1A/O
