Installation and Maintenance
Service Manual

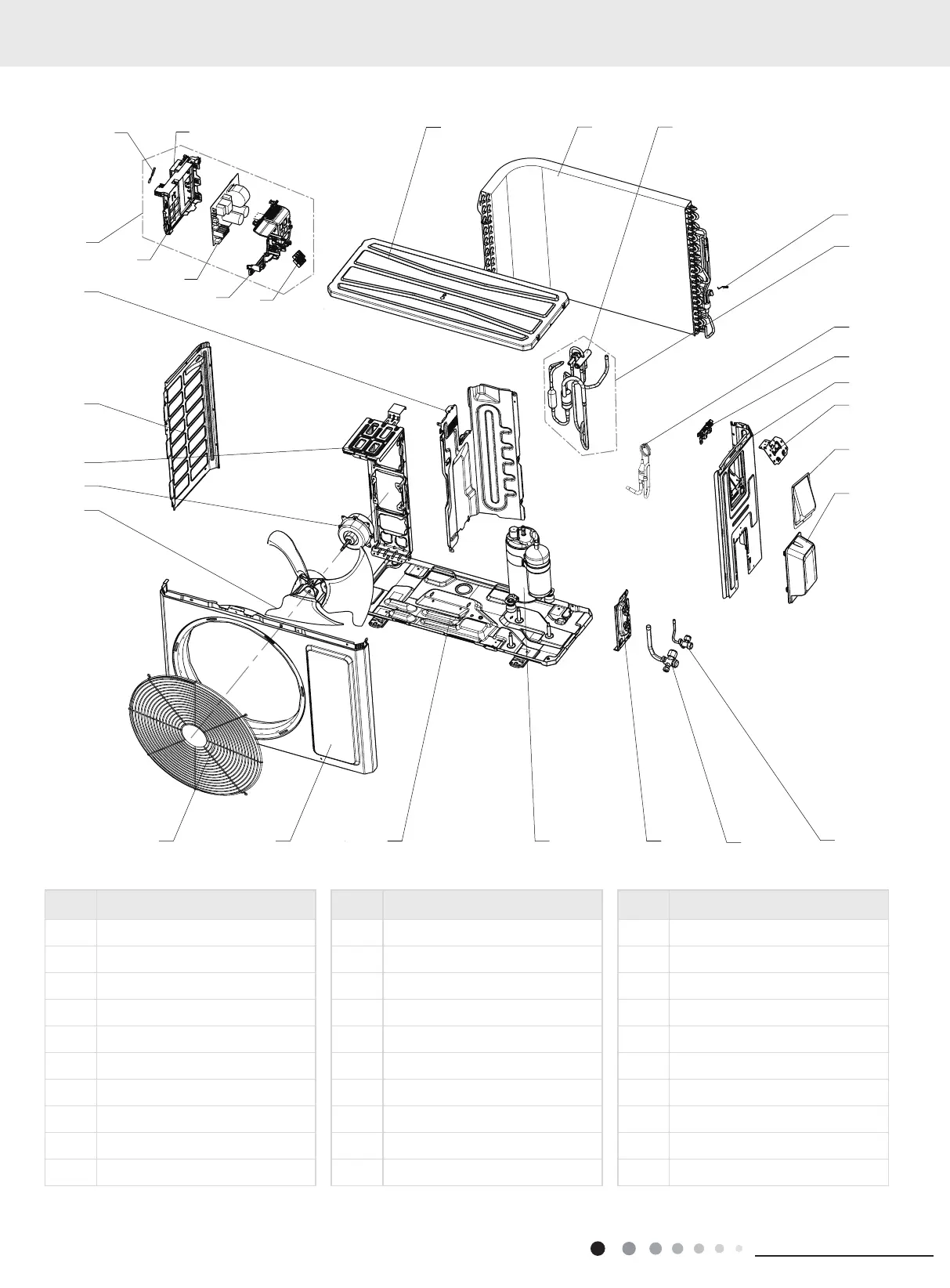

The component is only for rererence;please refer to the actual product
GWH18ATDXD-D3DNA1A/O
NO. Description
1 Top Cover Assy
2 Condenser Assy
3 4-Way Valve
4 Tempreture Sensor clamp
5 4-Way Valve Assy
6 Capillary Sub-assy
7 Wire Clamp
8 Right Side Plate
9 Earthing Plate Sub-assy
10 Cover of Pass Wire
Some models may not contain some parts, please refer to the actual product.
23
20
22
15
19
1718
21
5
12
9
10
8
24
28
27
26
25
30
1416
11
6
29
4
7
NO. Description
11 Valve Cover
12 Cut-off valve 1/4(N)
13 Cut-off valve 1/2(N)
14 Valve Support
15 Compressor and Fittings
16 Chassis Sub-assy
17 Cabinet
18 Front Grill
19 Axial Flow Fan
20 Brushless DC Motor
NO. Description
21 Motor Support
22 Left Side Plate
23 Clapboard Assy
24 Electric Box Assy
25 Electric Box
26 Main Board
27 Electric Box Cover
28 Terminal Board
29 Temperature Sensor
30 Radiator
