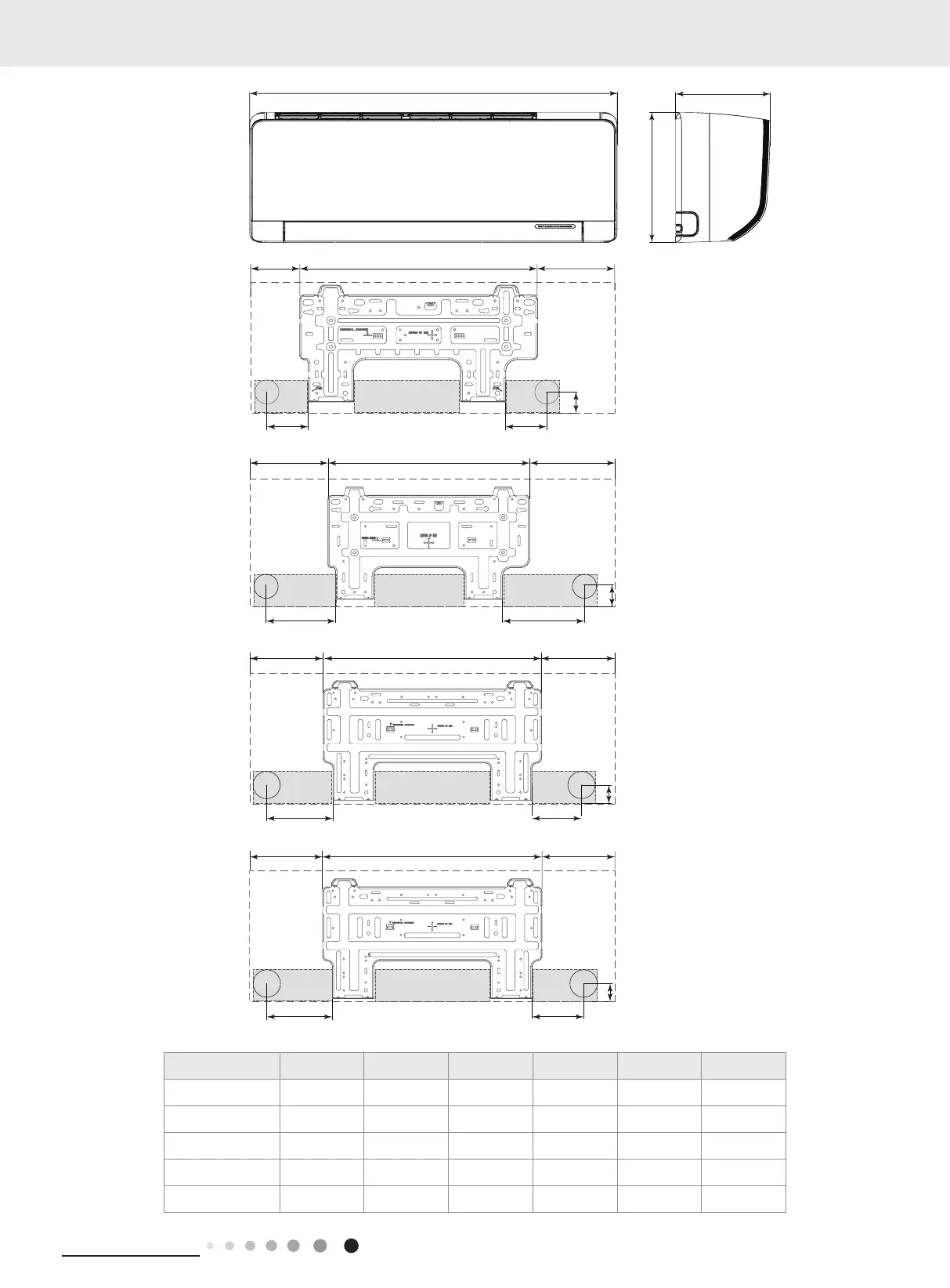

3.1 Indoor Unit
3. Outline Dimension Diagram
Model W H D W1 W2 W3
AWA 735 260 190 109.5 461 164.5
AWB 810 260 190 147.5 461 201.5
AWC 867 276 206 195 462 210
AWD 978 333 248 209 561.5 207.5
AWE 1116 333 248 277.5 561.5 277
Unit: mm
Unit: mm(inch)
