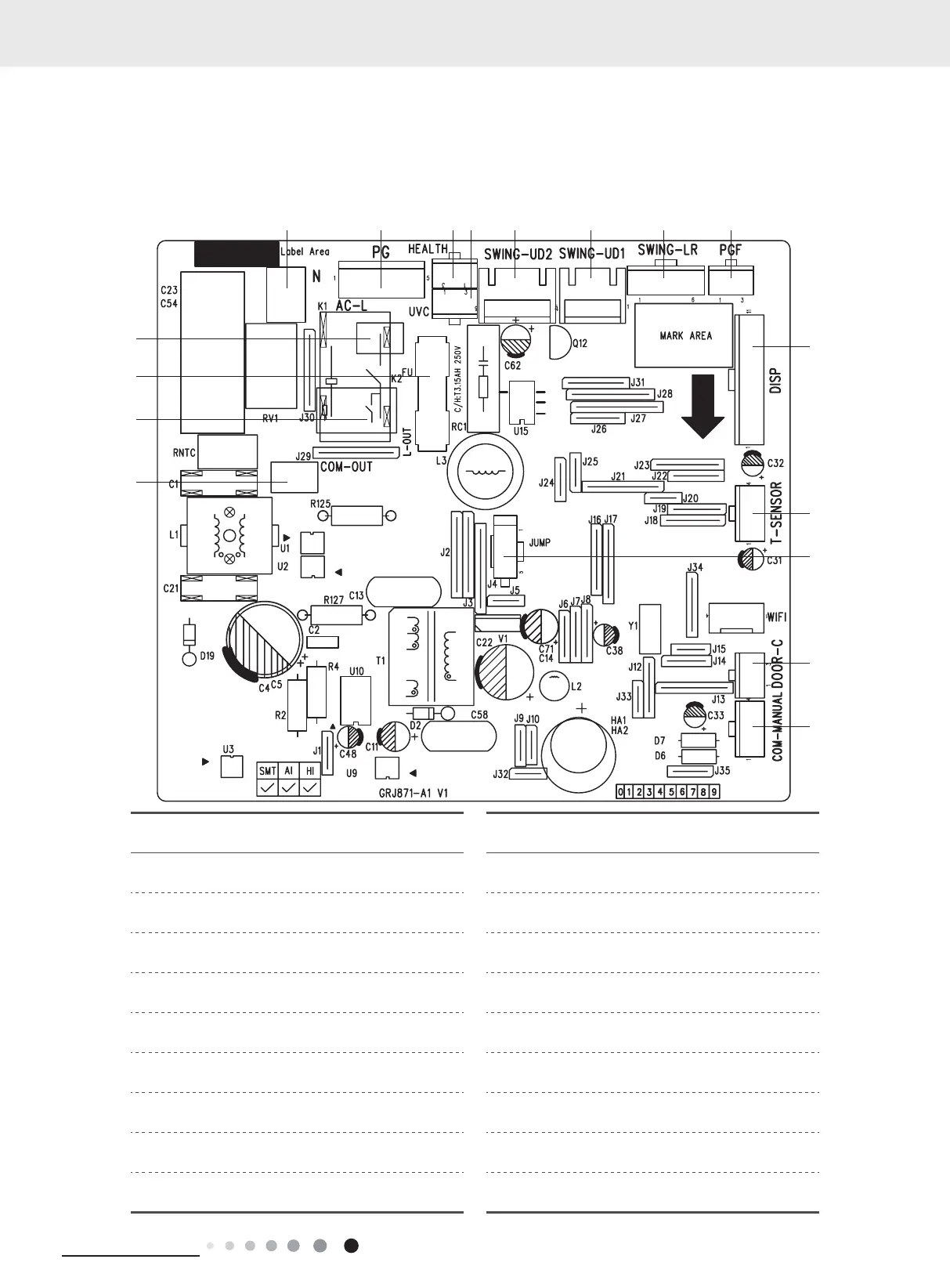

5.2 PCB Printed Diagram
● Indoor Unit
GWH07AWAXA-K6DNA1C/I GWH07AWAXA-K6DNA2B/I GWH09AWAXB-K6DNA1B/I GWH09AWAXB-K6DNA2B/I
GWH09AWAXB-K6DNA3B/I GWH09AWAXB-K6DNA1C/I GWH09AWAXB-K6DNA2C/I GWH09AWAXB-K6DNA5C/I
GWH09AWBXB-K6DNA1B/I GWH09AWBXB-K6DNA1C/I GWH09AWAXB-K6DNA3C/I GWH09AWAXB-K6DNA4C/I
GWH12AWBXB-K6DNA1D/I GWH12AWBXB-K6DNA3D/I GWH12AWBXB-K6DNA5D/I GWH12AWBXB-K6DNA1F/I
GWH12AWBXB-K6DNA2F/I GWH12AWBXB-K6DNA3F/I GWH12AWBXB-K6DNA4F/I GWH12AWBXB-K6DNA5F/I
No. Name No. Name
1 Communication Wire Insertion 10 Up & Down Swing Needle Stand 1
2 Live Wire Insertion (Outdoor unit) 11 Left & Right Swing Needle Stand
3 Fuse 12 PG Motor Feedback Needle Stand
4 Live Wire Insertion 13 Display Board Needle Stand
5 Neutral Wire Insertion 14 Temperature Sensor Tube Needle Stand
6 PG Motor Needle Stand 15 Jumper
7 Plasmacluster Ion Needle Stand 16 Door Control Needle Stand
8 Ultraviolet cleaning Needle Stand 17 Wired Controller Needle Stand
9 Up & Down Swing Needle Stand 2
1
2
3
4
5679 10 11 12
13
14
15
16
17
8
