Right side plate
Electric box
assy

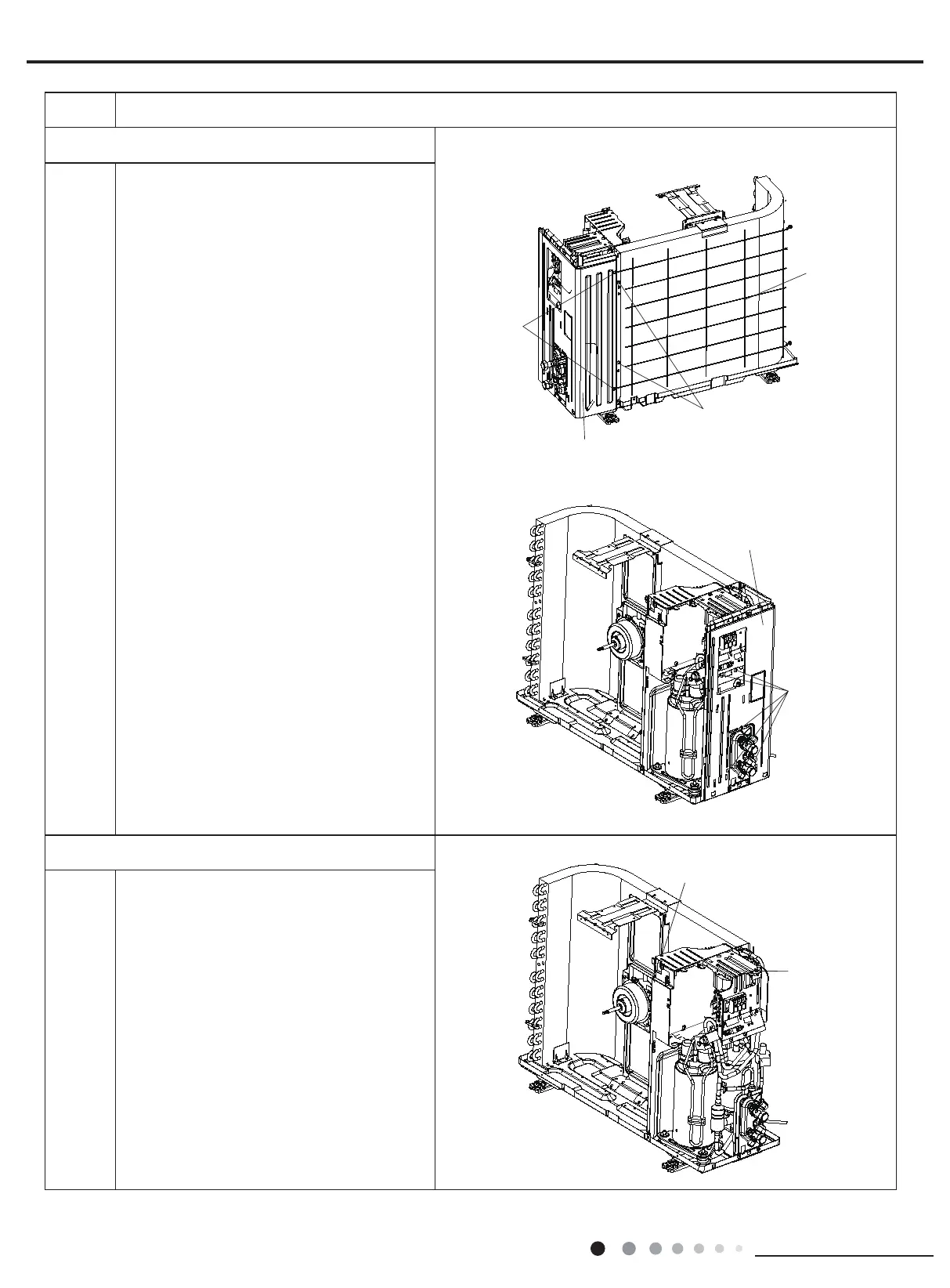

Remove the screws 2 fixing right side
plate and then remove the right side plate.
Screws 2
Screws
Right side plate
Protective
grille
Screws 1
Screws 2
Remove the screws 1 fixing protective
grille and then remove the protective
grille.
Remove the screws xing electric box
assy ; pull out each wiring terminal; lift the
electric box assy upwards to remove it.
Note:
When pulling out the wiring terminal, pay
attention to loose the clasp and dont pull
it so hard.
6. Remove protective grille and right side plate
7. Remove electric box assy
ProcedureStep
