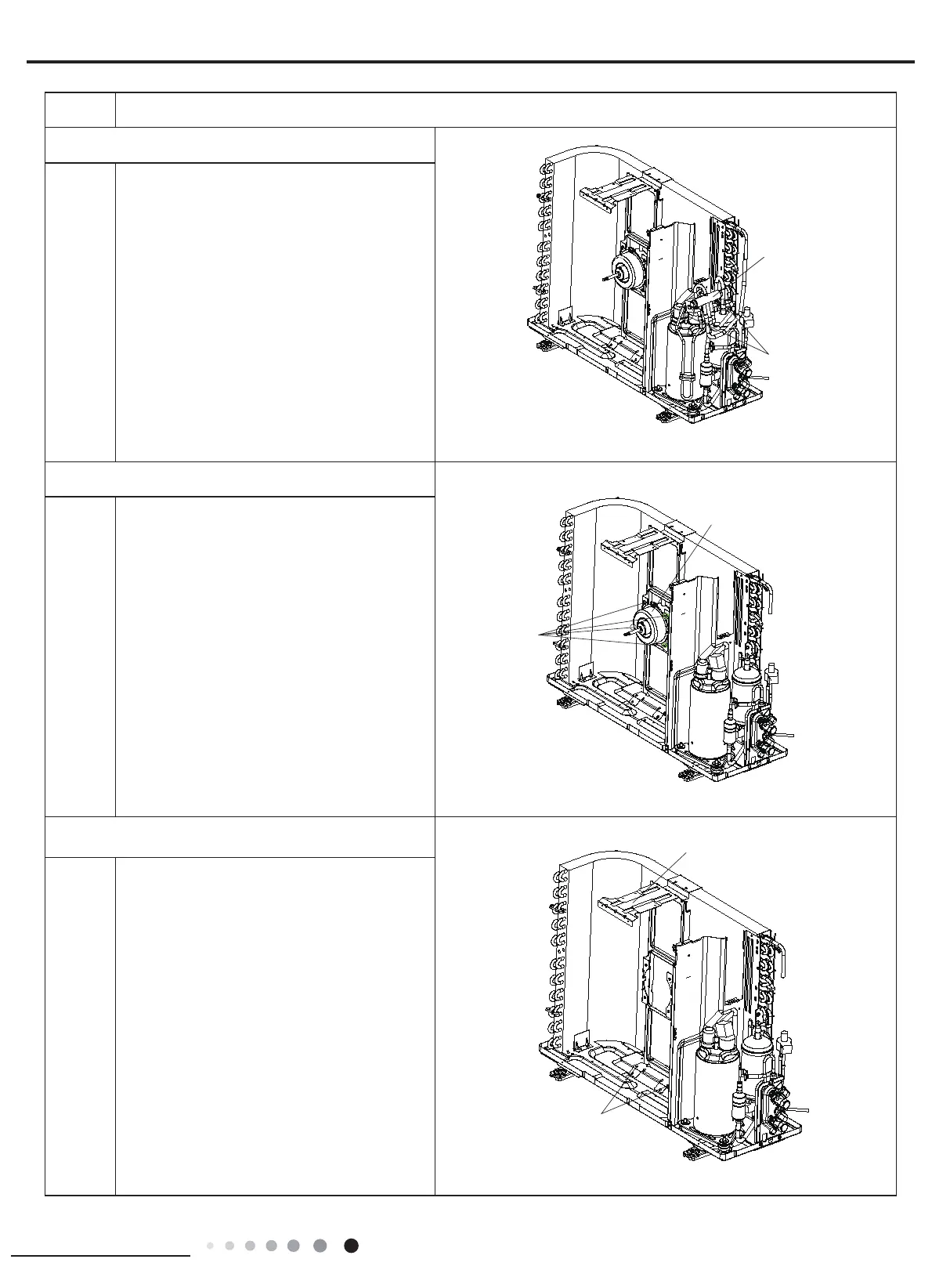

9. Remove motor
8. Remove 4-way valve assy
Unsolder the spot weld of 4-way valve assy,
compressor and condenser, and then remove
the 4-way valve assy .
Note:
When unsoldering the spot weld, wrap the
4-way valve with wet cloth completely to avoid
damaging the valve due to high temperature.
Remove the screws xing motor and then
remove the motor.
ProcedureStep
Remove the screws xing motor support and
then remove the motor support.
10. Remove motor support
Spot weld
4-way valve assy
Motor support
Motor
Screws
Screws
To Next Page
