13
Technical Information
Service Manual

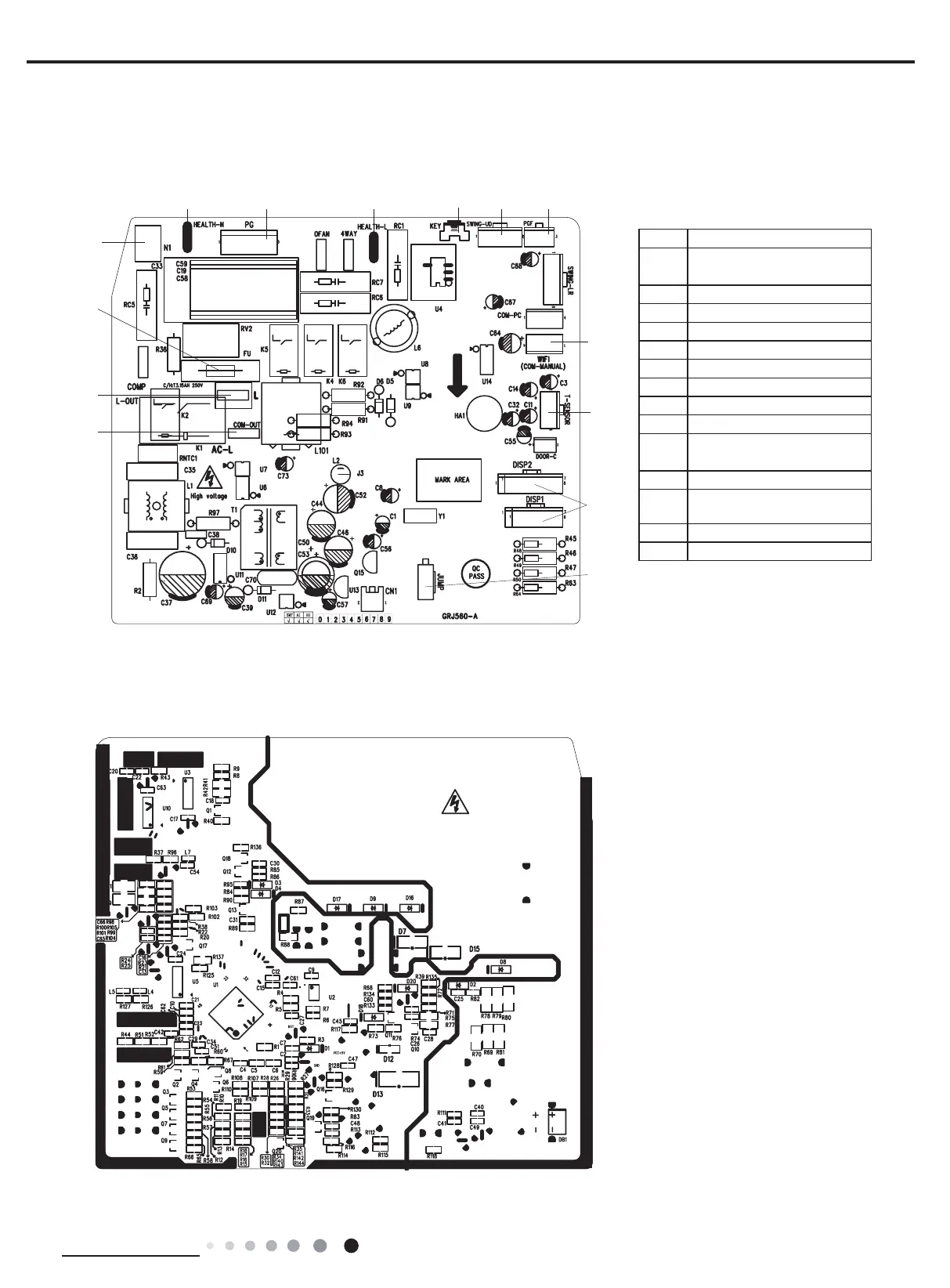

5.2 PCB Printed Diagram
Indoor Unit
● Top view
● Bottom view
No. Name
1
Terminal with otdoor unit
communication wire
2 Live wire
3 Fuse
4 Neutral wire
5 Health neutral wire
6 PG motor needle stand
7 Health live wire
8 Auto button
9 Up&down swing motor
10
PG feedback interface of
indoor fan
11 Detecting plate(WIFI)
12
Interface of tube temperature
sensor
13 Display interface
14 Jumper cap
1
2
3
4
5 6
7
9
8
10
11
12
13
14
High voltag
