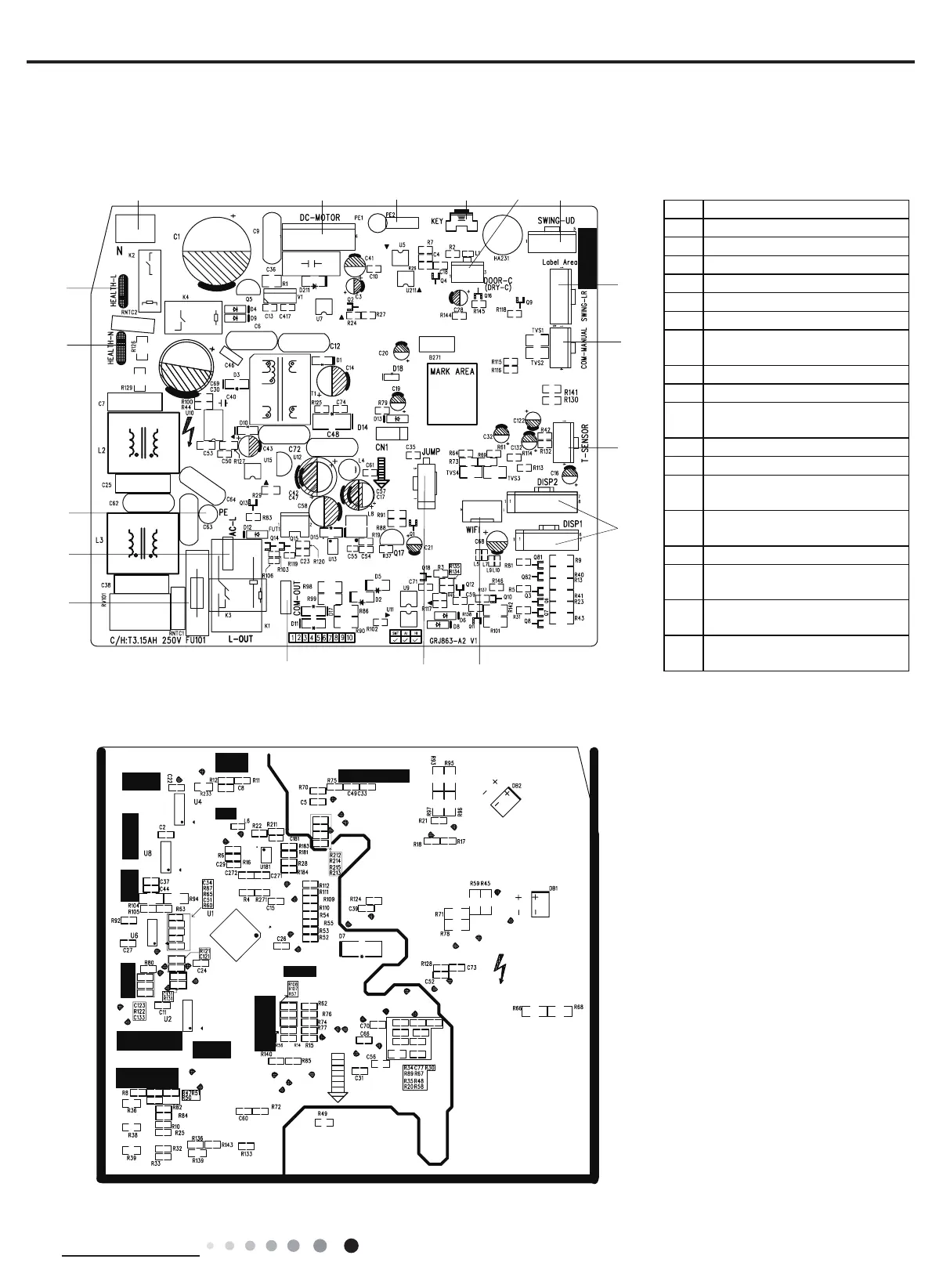

5.2 PCB Printed Diagram
● Bottom view
8
915
18
5
6
7
1216 1734
No.Name
1 Neutral wire
2 Needle stand for indoor fan
3Auto button
4 Up&down swing motor
5 left&right swing motor
6Interface of temperature sensor
7
Terminal for display board
connection
8Terminal of jumper cap
9 Communication wire
10
Connect earthing wire(only for
the mode with this function)
11 Fuse
12 Live wire interface
13
Interface of health function
neutral wire
14
Interface of health function live
wire
15 Detecting plate(WIFI )
16
Connect earthing wire(only for
the mode with this function)
17
Wired controller (only for the
mode with this function)
18
Interface of gate control (only
for the mode with this function)
● Indoor Unit
