80
Installation and Maintenance
Service Manual

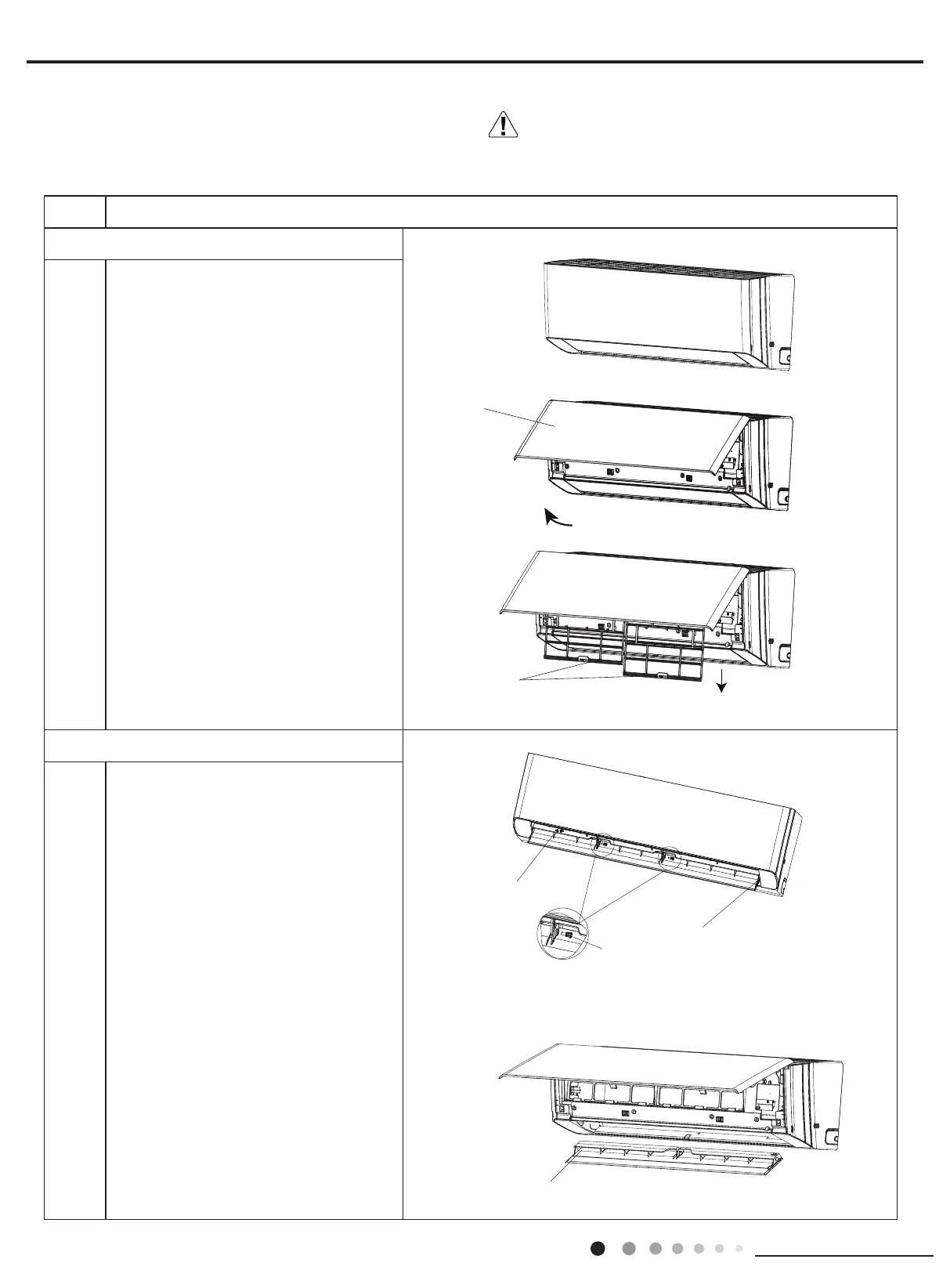

11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
Step Procedure
1.Remove lter
2.Remove horizontal louver
Open the panel.
Panel
Left lter and right ler
Axile bush
Location of step motor
Horizontal louver
Loosen the clasp shown and
then pull the left lter and right ler
outwards to remove them.
Push out the axile bush on horizontal
louver. Bend the horizontal louver with
hand and then separate the horizontal
louver from the crankshaft of step motor
to remove it.
a.
b.
horizontal
louver
To Next Page
