8.9 Wired Controller
If the product you bought is equipped with wired controller, please refer to the following introductions of wired controller.
1.Displaying Part

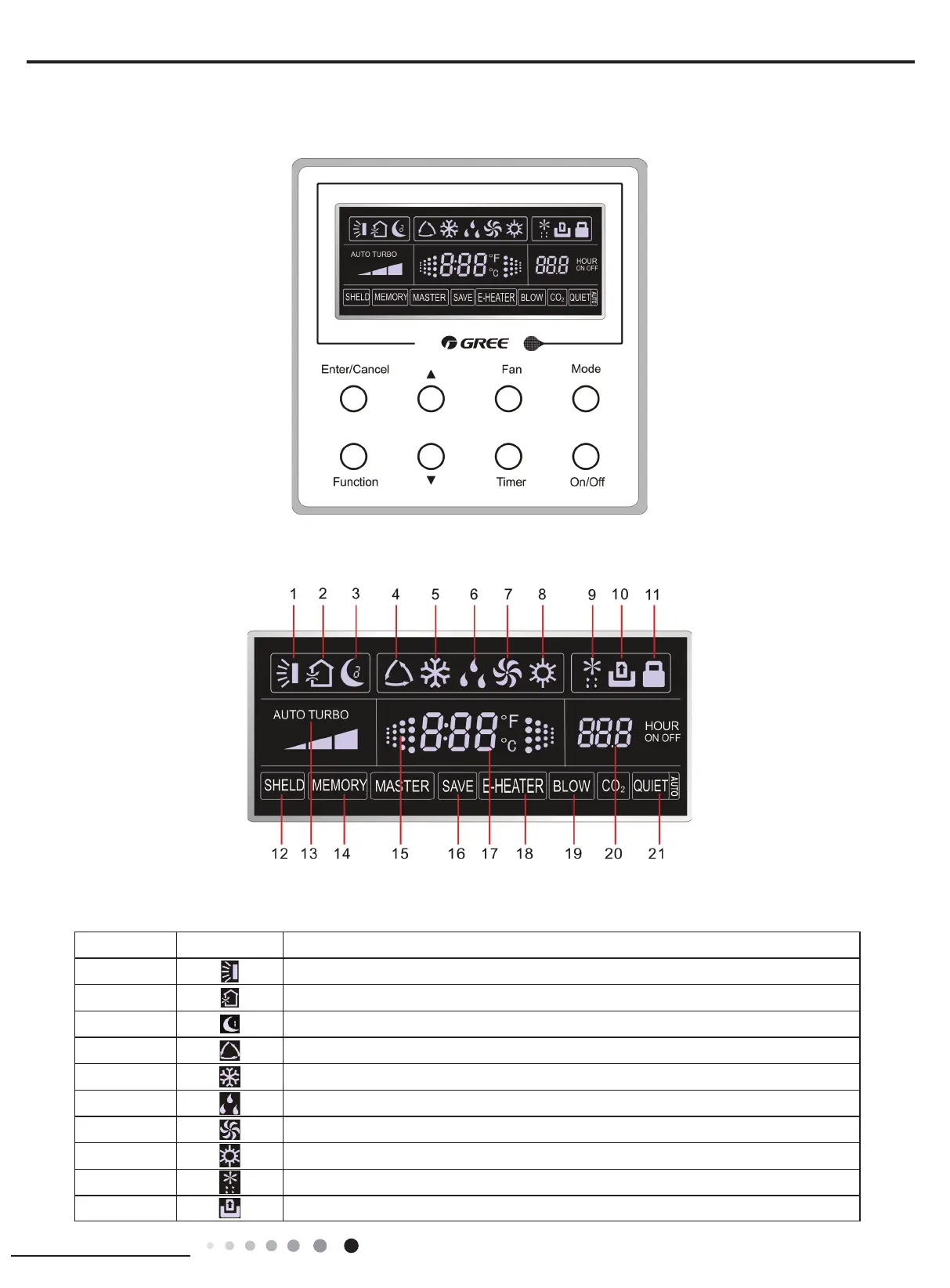

Fig1.1.1 Outline of wired controller
Fig.1.1.2 LCD display
1.1 LCD Display of Wired Controller
1.2 Instruction to LCD Display
No.
Symbols
Description
1 Swing function
2 Air exchange function (this function is yet unavailable for this unit)
3 Sleep function (Only sleep 1)
4 Each kind of running mode of indoor unit (auto mode)
5 Cooling mode
6 Dry mode
7 Fan mode
8 Heating mode
9 Defrosting function for the outdoor unit
10 Gate-control function (this function is yet unavailable for this unit)
