Gree GWH09YD-S6DBA2A/I Service Manual

5
Technical Information
Service Manual

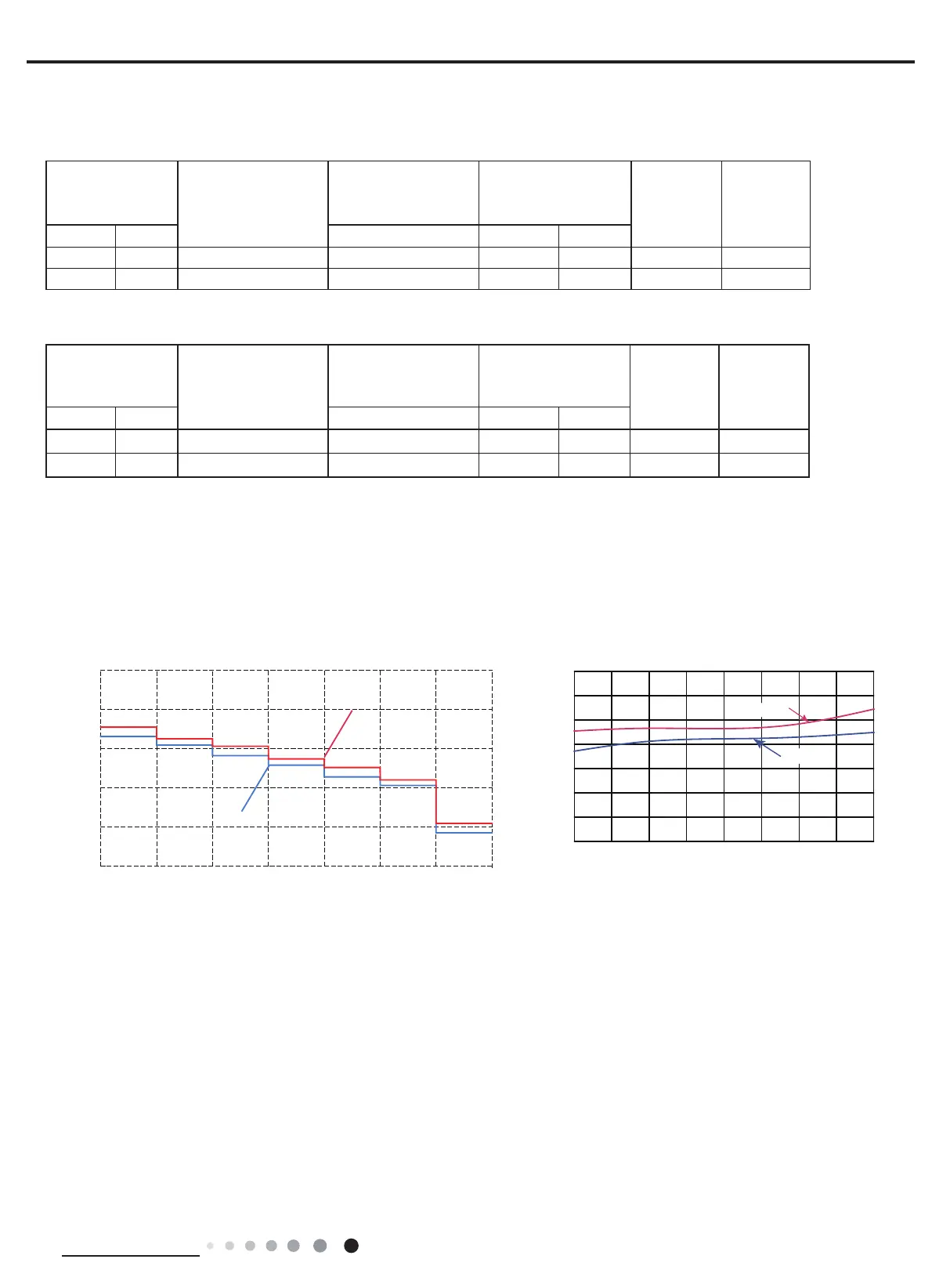

2.4 Cooling and Heating Data Sheet in Rated Frequency
Rated cooling
condition(°C)
(DB/WB)
Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
27/19 35/24 9K 0.9 to 1.1 12 to 14 75 to 37 Super High High
27/19 35/24 12K 0.9 to 1.1 12 to 14 75 to 37 Super High High
Rated heating
condition(°C)
(DB/WB)
Model
Pressure of gas pipe
connecting indoor and
outdoor unit
Inlet and outlet pipe
temperature of heat
exchanger
Fan speed of
indoor unit
Fan speed of
outdoor unit
Indoor Outdoor P (MPa) T1 (°C) T2 (°C)
20/- 7/6 9K 2.8 to 3.0 70 to 35 2 to 4 Super High High
20/- 7/6 12K 2.8 to 3.0 70 to 35 2 to 4 Super High High
Instruction:
T1: Inlet and outlet pipe temperature of evaporator
T2: Inlet and outlet pipe temperature of condenser
P: Pressure at the side of big valve
Connection pipe length: 5m.
Cooling:
Heating:
2.5 Noise Curve
46
48
50
52
54
56
58
60
20 30 40 50 60 70 80 90 100
Compressor frequency(Hz)
Noise dB(A)
Heating
Cooling
60
40
50
30
10
20
Indoor fan motor rotating speed
Super
High
Super
Low
Middle
High
Middle
Low
High Middle Low
Noise dB(A)
9K
12K
