Installation and Maintenance
Service Manual

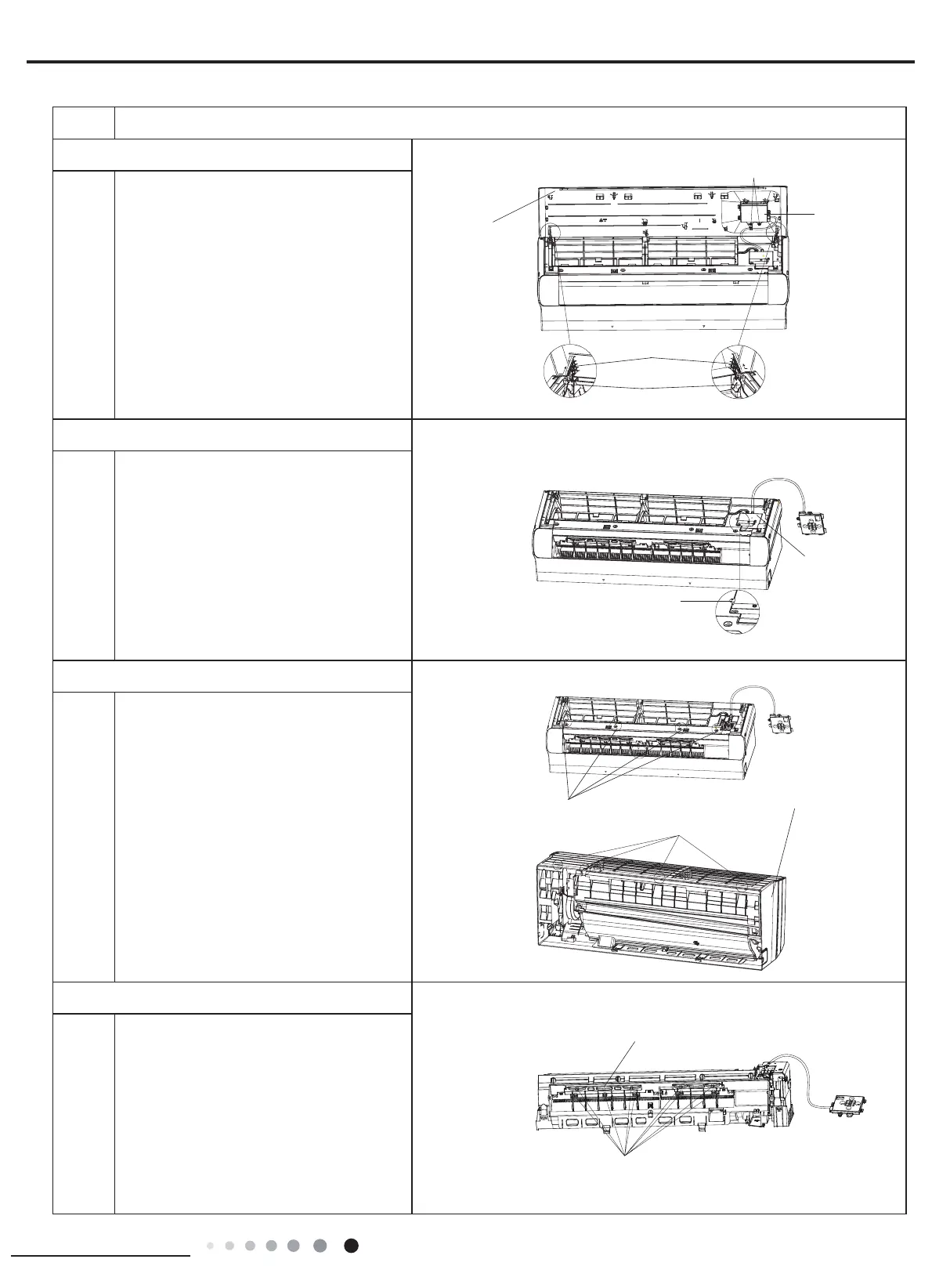

Step Procedure
3.Remove display and panel
4.Remove electric box cover 2
5.Remove front case sub-assy
6. Remove vertical louver
Panel rotation
Screws
Display
Panel
Groove
Screws that are locking the display board.
Separate the display board from the front
panel.
Open the front panel; separate the panel
rotation shaft from the groove xing the
front panel and then removes the front
panel.
Remove the screws on the electric box
cover to remove the electric box cover 2.
Remove the screws xing front case.
Loosen the clasps of front case Life the
front case sub-assy upwards to remove
it.
Loosen the connection clasps between
vertical louver and bottom case to
remove vertical louver.
a.
b.
Screw
Screws
Electric box cover 2
Clasps
Front case sub-assy
Clasps
Vertical louver
