Modbus Gateway(Pro)
7

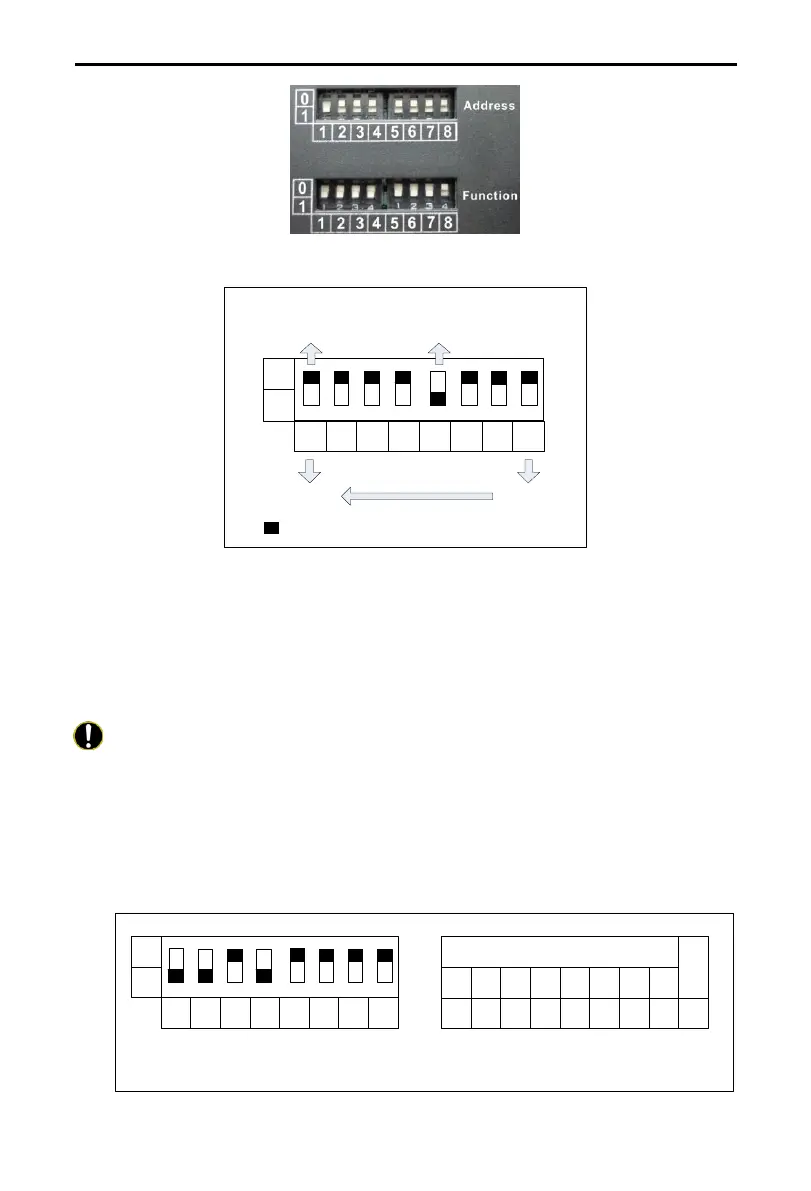

4.3.1 Diagram of DIP Switches
HighLow
1 65432 7 8
0
1
is the position of DIP
This DIP is 0
This DIP is 1
4.3.2 Address DIP Switch-Address Setting of Modbus
Gateway(Pro)
Address DIP switch is used for setting the device address of Modbus
Gateway(Pro).
Notice! Please set the address DIP switches before using this gateway. The
network DIP switch address of the same bus cannot be repeated, otherwise
communication error may happen.
Address setting range: 1~255.
Address setting example:
Setting method of address 11 is shown as below:
1 65432 7 8
0
1
Address
Address
1 1 0 1 0000 11
1 2 3
4 5 6 7 8
value
DIP form
