U-Match Series DC Inverter Service Manual
116
5 EXPLODED VIEWS AND SPARE PART LIST
5.1 Outdoor Unit

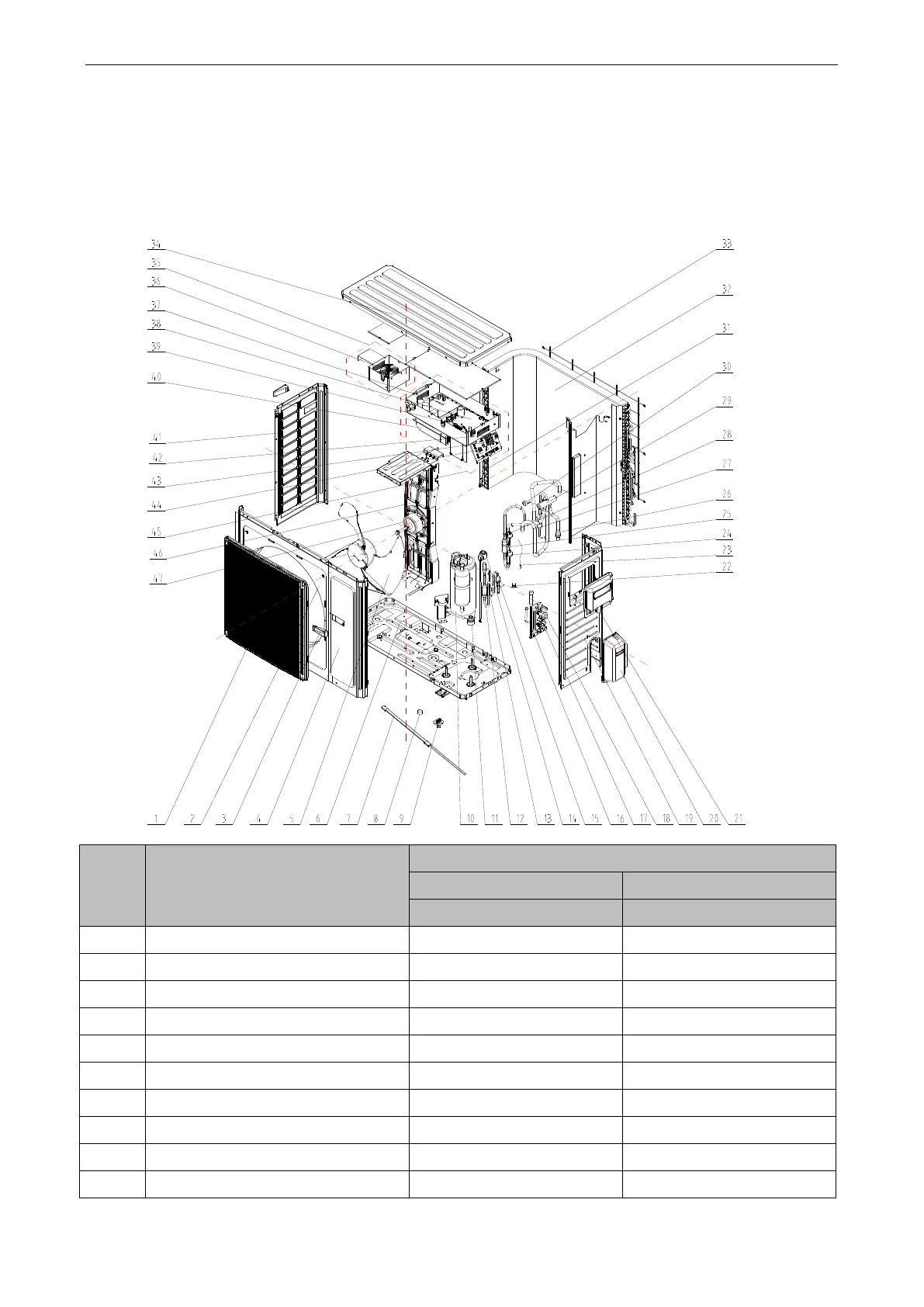

 Model: GUHD24NS3GO Exploded Views and spare parts list:
N0.
Name of Part
GUHD24NS3GO
Product Code
CF090W0800
part Code
Quantity
1
Front Grill
'22415003
1
2
Cabinet
'01435004P
1
3
Left Handle
'26235401
2
4
Front Side Plate
'01305086P
1
5
Axial Flow Fan
'10335014
1
6
Chassis Sub-Assy
'0119520001301P
1
7
Electrical Heater(Compressor)
'7651873209
1
8
Drainage Hole Cap
'06813401
3
9
Drainage Connecter
'06123401
1
10
Compressor and Fittings
'0010505701
1
