Gree U-match Series

U-Match Series DC Inverter Service Manual
12
②. The specifications of the breaker and power cable listed in the table above are determined based
on the maximum power (maximum amps) of the unit.
③. The specifications of the power cable listed in the table above are applied to the conduit-guarded
multi-wire copper cable (like, YJV copper cable, consisting of PE insulated wires and a PVC
cable jacket) used at 40°С and resistible to 90°С. If the working condition changes, they should
be modified according to the related national standard.
④. The specifications of the breaker listed in the table above are applied to the breaker with the
working temperature at 40°С. If the working condition changes, they should be modified
according to the related national standard.

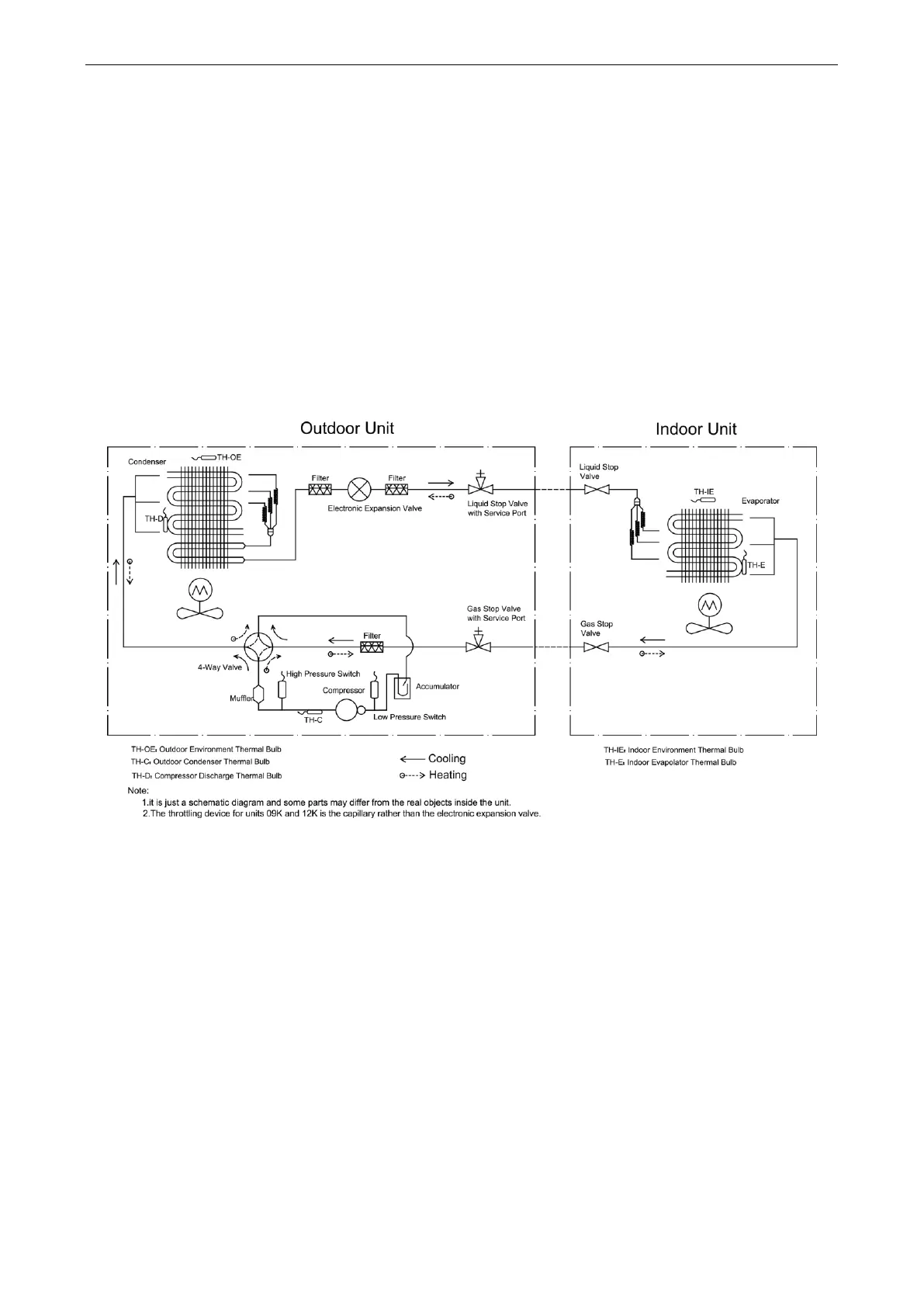

4 PIPING DIAGRAM
