Energy Core Ventilator10
®

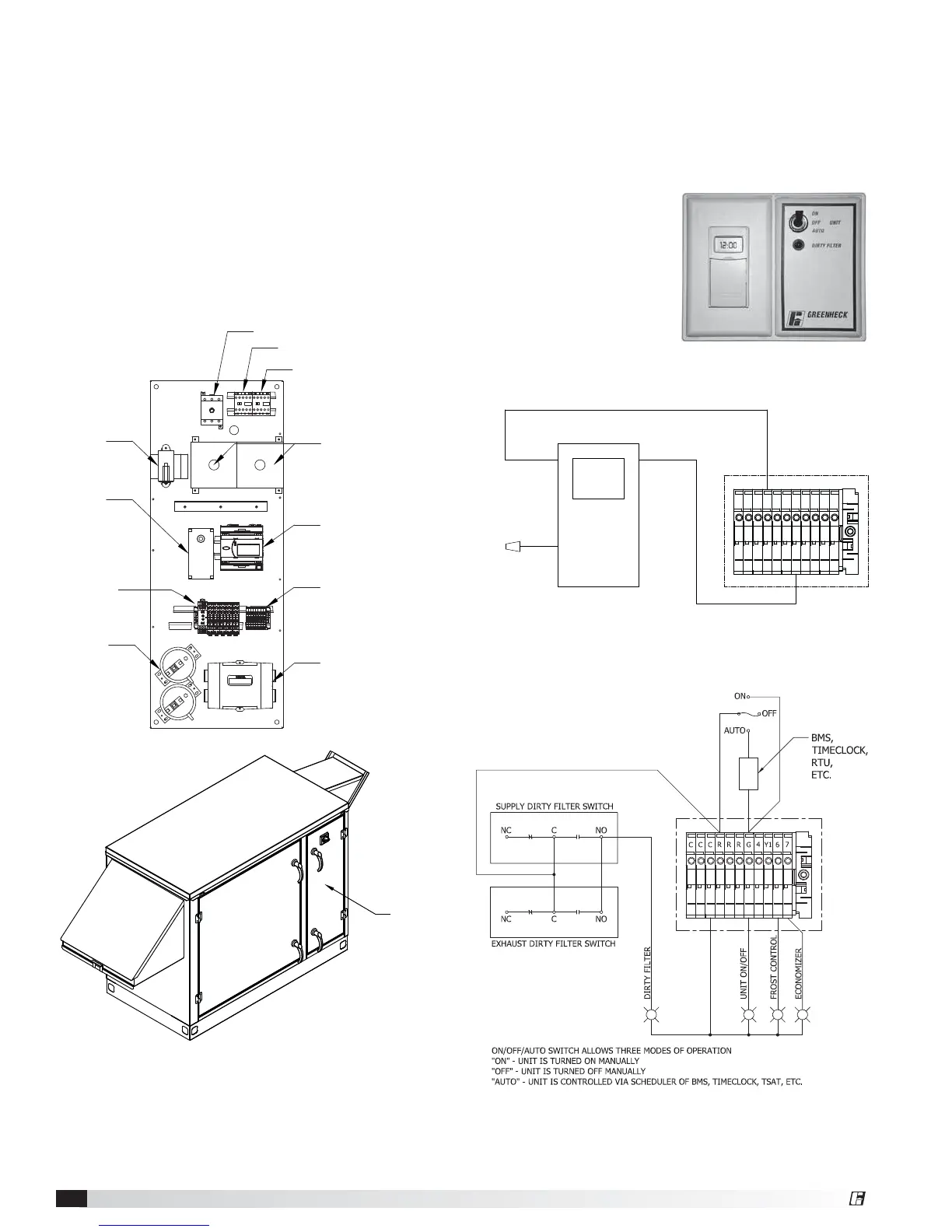

Optional Accessory Wiring Schematics
7-Day Timer
Remote Panel
The remote panel is available with a number of different
alarm lights and switches to control the unit. The remote
panel ships loose and requires mounting and wiring in
the field. The remote panel is available with the following
options:
• Unit on/off switch
• Unit on/off light
• 7-day time clock
• Hand/off/auto switch
• Dirty filter light
• Economizer light
• Frost control light
On/Off/Auto Switch & Indictor Light Wiring
Typical Control Center Components
1. Main Disconnect (nonfusible, lockable)
2. Motor Starter – Exhaust Air Fan
3. Motor Starter – Outdoor Air Fan
4. Speed Controllers/VFDs (Supply & Exhaust)
5. 24 VAC Control Transformer
6. 24 VAC Terminal Strip
Optional Control Center Components
7. Economizer Controller
8. Dirty Filter Pressure Switches
9. BMS Controller
10. Frost Control Timer
11. Thermostat
CONTROL
CENTER
DOOR
1
2
3
6
5
7
9
8
4
11
10
C
RRR
G
4
Y1
6
7
CC
TIMER
BLUE
BLACK
RED
(CAPPED)
