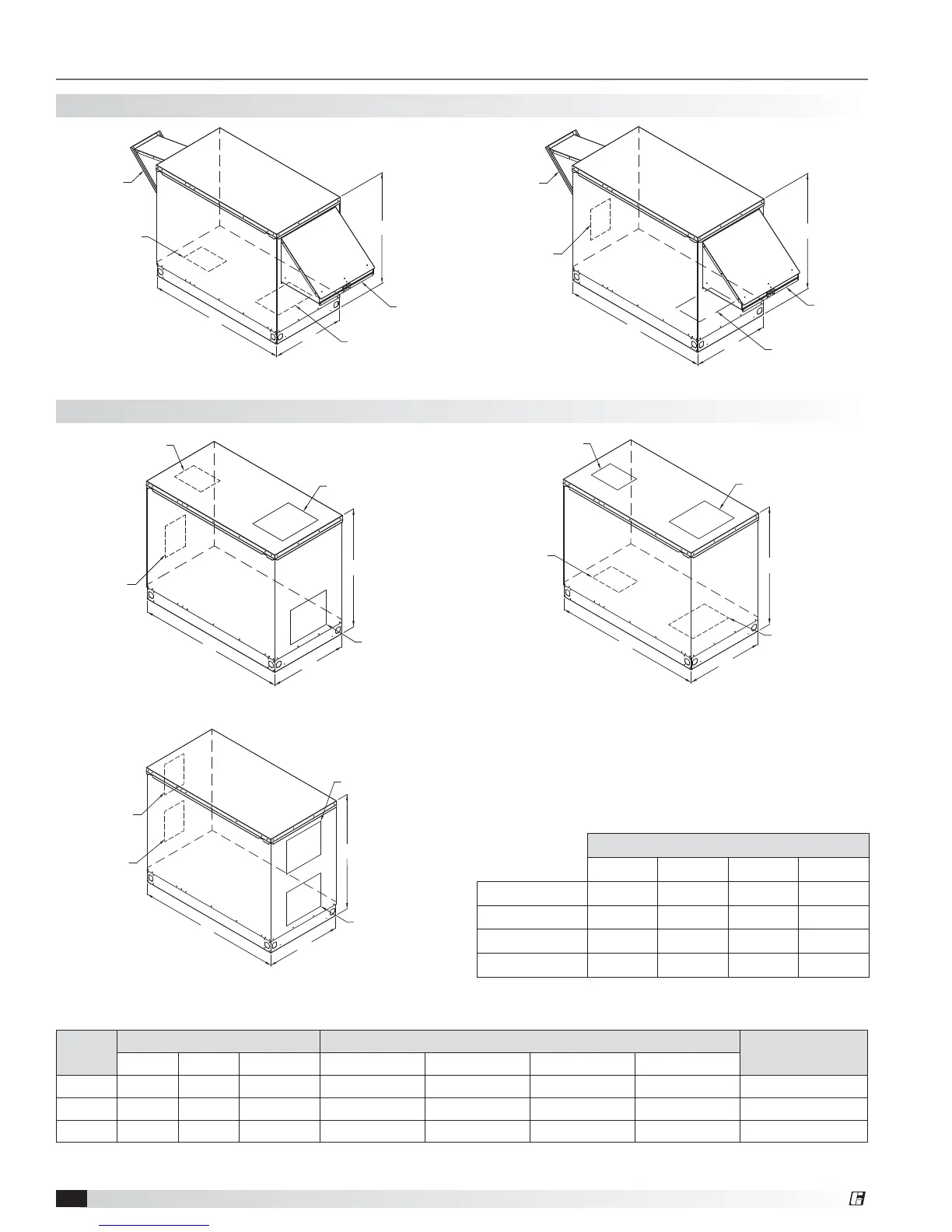

Energy Core Ventilator4
®
Installation
Indoor Mounting Options
Intake and Discharge Options
Bottom Top Side End
OA Intake X X
SA Discharge X X
RA Intake X X
EA Discharge X X
SUPPLY AIR
DISCHARGE
EXHAUST AIR
DISCHARGE
RETURN AIR INTAKE
OUTDOOR AIR INTAKE
A
B
C
(NON ELECTRICAL SIDE)
D
D
E
E
End Connections
Outdoor Mounting Options
EXHAUST AIR
DISCHARGE
OUTDOOR
AIR INTAKE
A
B
C
RETURN AIR INTAKE
SUPPLY AIR
DISCHARGE
(NON ELECTRICAL SIDE)
G
F
Outdoor Air Discharge Bottom
SUPPLY AIR
DISCHARGE
EXHAUST AIR
DISCHARGE
OUTDOOR
AIR INTAKE
A
B
C
RETURN AIR INTAKE
(NON ELECTRICAL SIDE)
G
E
Outdoor Air Discharge End
RETURN AIR INTAKE
OUTDOOR AIR INTAKE
A
B
C
EXHAUST AIR
DISCHARGE
SUPPLY AIR
DISCHARGE
(NON ELECTRICAL SIDE)
D
G
E
F
Top and Bottom ConnectionsTop and End Connections
OUTDOOR AIR INLET
A
B
C
EXHAUST AIR
DISCHARGE
(NON ELECTRICAL SIDE)
D
E
SUPPLY AIR
DISCHARGE
RETURN AIR INLET
D
E
Dimensional Data and Weights
Unit
Size
Exterior Dimensions Unit Connection Dimensions
Approx. Weight*
(lbs.)
AB C D E F G
ECV-10 54.8 28.9 43.9 18.4 x 15.9 13.6 x 13.6 8.5 x 11.6 10.25 x 15.25 485
ECV-20 65 43.9 56.9 31.2 x 19.2 13.6 x 13.6 8.6 x 11.8 15.8 x 27.8 816
ECV-30 69 61.4 60.7 43.2 x 18.2 20 x 20 16 x 13.8 40.9 x 15.9 1286
All dimensions are in inches. *Weight assumes outdoor unit with filters, weatherhoods, outdoor air intake damper, controls
and internal double-wall sheet metal.
