764 Ratchet Cable Cutter
Maintenance (cont’d)
Assembly (cont’d)
7. Place top housing plate (23) over tool assembly,
using “spare” 3/8" screw and release pin (27) for
alignment. Assemble nuts (18) loosely to hold
housing in place.
8. Lubricate gear shaft (26) and assemble in place of
3/8" “spare” screw.
9. Assemble retaining ring (9) to gear shaft (26).
10. Assemble boot (33) by spreading rear of boot and
slipping over front of tool. Alternately advance the
boot at the top and bottom until the boot tabs can be
inserted in notches in the housing. Spread the boot
over release pin until ends enter slots in boot.
Fasten boot in the back using button flap (34).
Assemble bumpers (10) to pin (27).
Note: To replace jaws, see steps 11-18; also see
Figure 5 and exploded view. To replace entire
cutter head (38), skip steps 11, 12, and 15.
11. Assemble spring (5) to movable jaw (3) using stud (7).
12. Assemble screw (2) and nut (8) into movable jaw (3).
13. Reconnect spring (5) to housing (13).
14. Assemble fixed jaw (1), movable jaw (3) and spacer
(4) into housing assembly using lubricated bolt (25),
nut (6) and two nut retainers (24).
15. Assemble jaw anchor screw (21).
16. Tighten nut (6) to a maximum jaw clearance of
0.007". To achieve 0.007" clearance, tighten nut (6)
snugly so that jaws are against each other. Then
back off nut to the first open slot aligned with the
drive pin hole. There should be not more than
0.007" gap between blades. Operate the cutter to
ensure that the jaws move freely.
17. Bend tab (5) on nut retainer (24) to secure nut (6).
18. Apply adhesive Loctite
®
#416 sparingly to assemble
two bumpers (10) and to attach boot to housing
(see Figure 1).
3
7
5
33
25
6
24

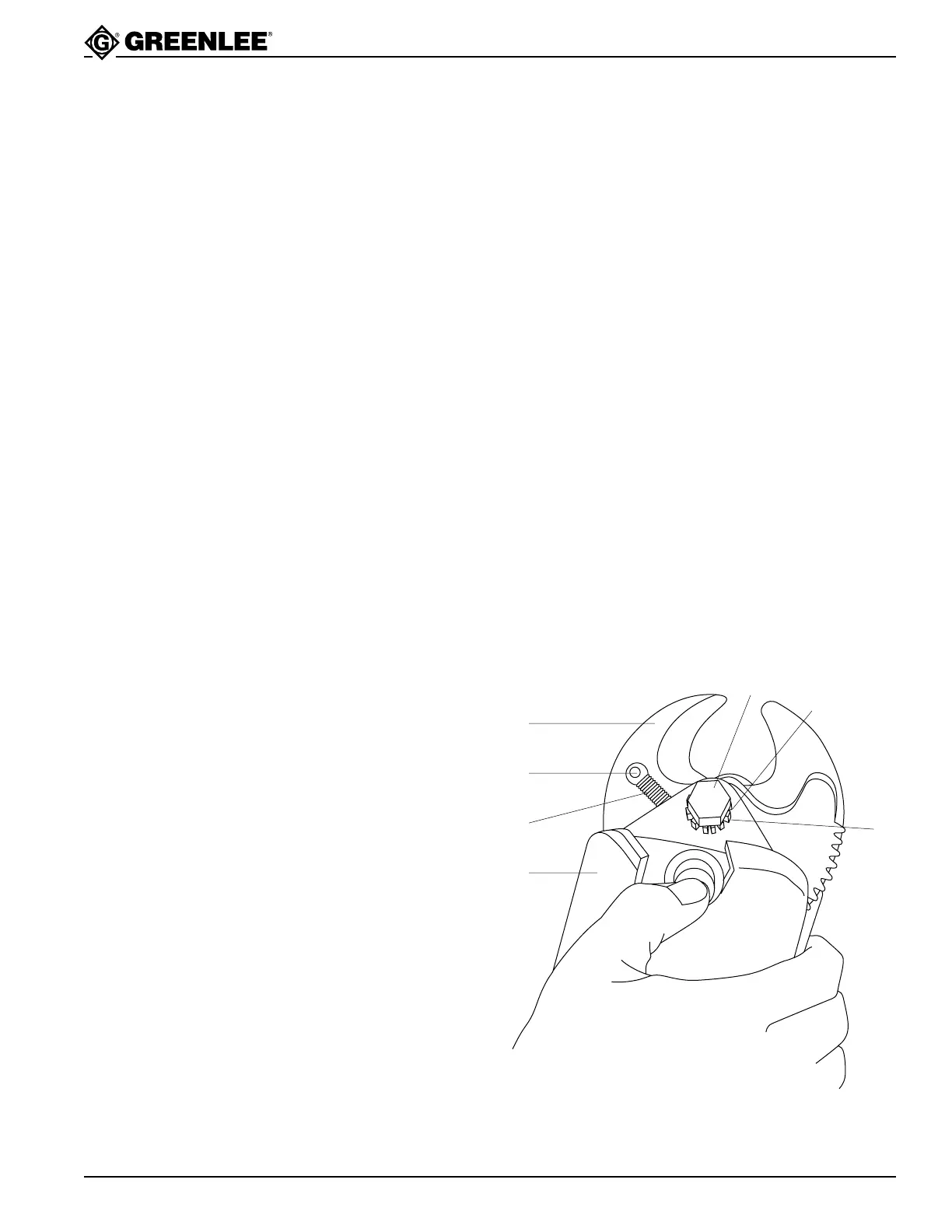

Figure 5
