98

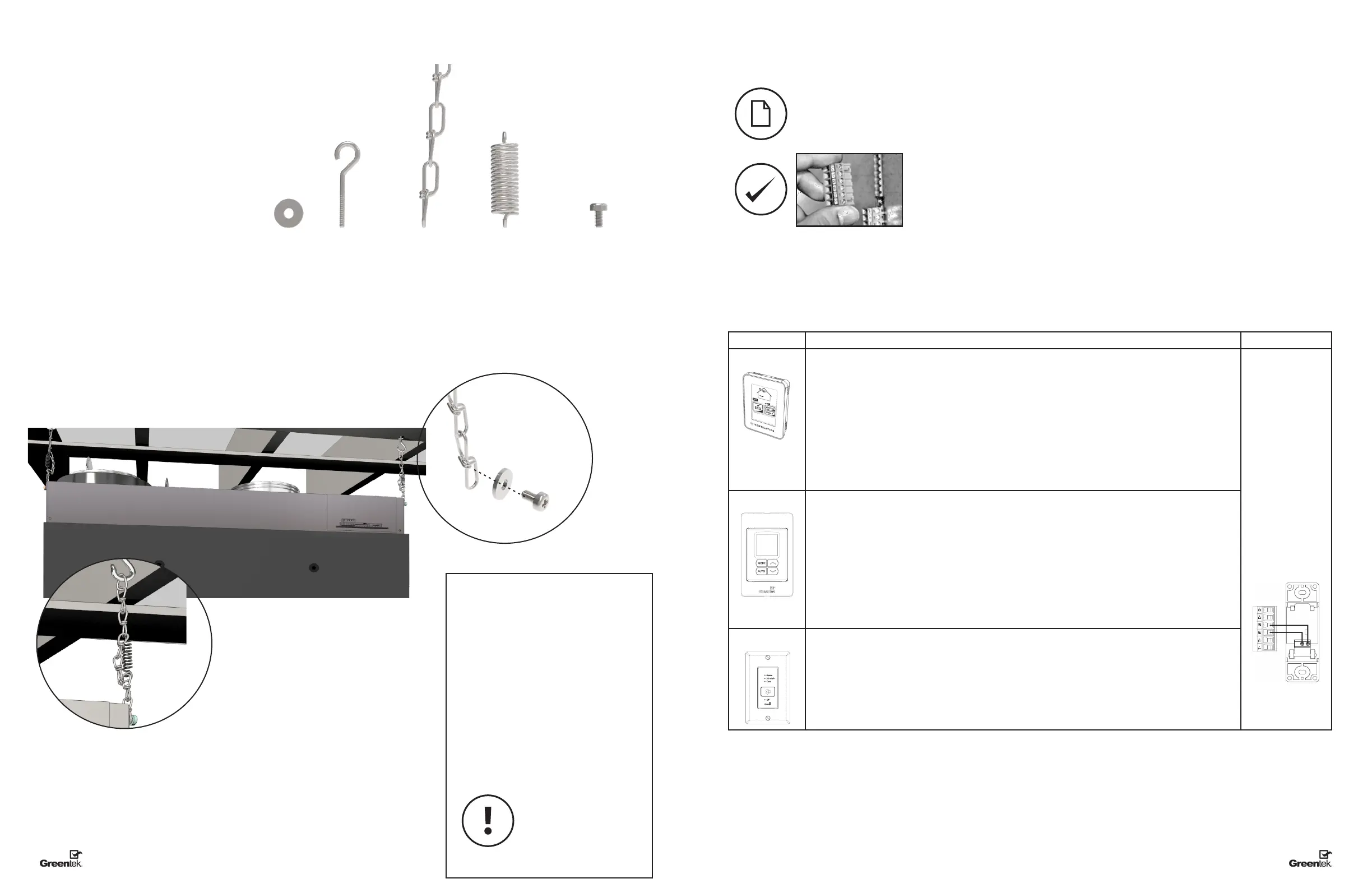

CHAIN MOUNT INSTALLATION
When wall mount bracket is not convenient. Use a chain kit (which includes
hanging chains, 10-24 screws, spring, and hooks)
Install a spring on each chain as shown to support the unit's weight and absorb
vibrations.
DO NOT
Connecting appliances to the HRV is not
recommended. These include:
• Clothes dryer
• Range top
• Stovetop fan
• Central vacuum system
• Bathroom exhaust fans unless they are
specically designed for this purpose
• These appliances may cause lint, dust or
grease to collect in the HRV, damaging
the unit.
Connecting any of these
types of appliances to
the HRV will void your
warranty.
INSTALLATION CHAIN
MOUNTING KIT INCLUDES:
C
X4
D
X4
E
X4
F
X4
G
X4
WALL CONTROLS
1. Ensure that unit is not plugged when connecting the control.
2. Recirculation mode is only available in the Solace series and the C3.14 model.
The wiring connectors can be removed for easier connection.
* Please see instruction manuals for individual controls for proper wiring and set up of control systems.
CENTRAL CONTROLS
These cannot be used with another central control
*Maintain polarity between control and HRV
(+ → + ; - → -)
FEATURES CONNECT TO
STS 2.0 • Our most complete, yet easy-to-use control system
• Sleek design with backlight touchscreen LCD
• ECO mode selects the best operating mode and speed for the season, minimizing energy use associated with
ventilation
• Set preferred indoor relative humidity range and ventilation mode for day and night conditions
• No battery to replace, all programmed settings are retained during power outages
• Maintenance reminder indicator
• Error code messages reduce troubleshooting time
EHC 2.5
• Three (3) modes of operation: Ventilation Mode, Recirculation Mode, Stand by Mode.
• Once you’ve selected the operation mode, the fan speed can be selected: Reduced, Medium,
Normal or 20min/h using the arrow buttons.
• Ventilation Mode: The ventilation system takes stale air from inside your home and replaces it
with fresh outdoor air while recovering the energy of the air that’s exhausted to the outside.
• Recirculation Mode: Your ventilation system takes air from areas of your home and
redistributes it in other rooms to avoid stagnant air areas and to distributes heated or cooled
air. No outdoor air is introduced to the building.
• Standby Mode: The ventilation system is inactive unless the indoor relative humidity is above
the setpoint on the control or a timer switch (installed separately) is activated.
EHC 2.0
• An electronic wall control that is compatible with all Greentek HRV models. This control activates the system
on 3 possible modes of operation: ECONO, 20 MIN/H, CONT.
• ECONO Continuous operation in ventilation mode at low or medium speed.
• 20 MIN/H 20 minutes ON, 40 minutes OFF Intermittent (Yellow)
• CONT Continuous high speed in ventilation or recirculation mode.
• OFF Standby mode, both fans off
