GreenWorks 20152 - Top Plate and Side Plate Filing Angles

33

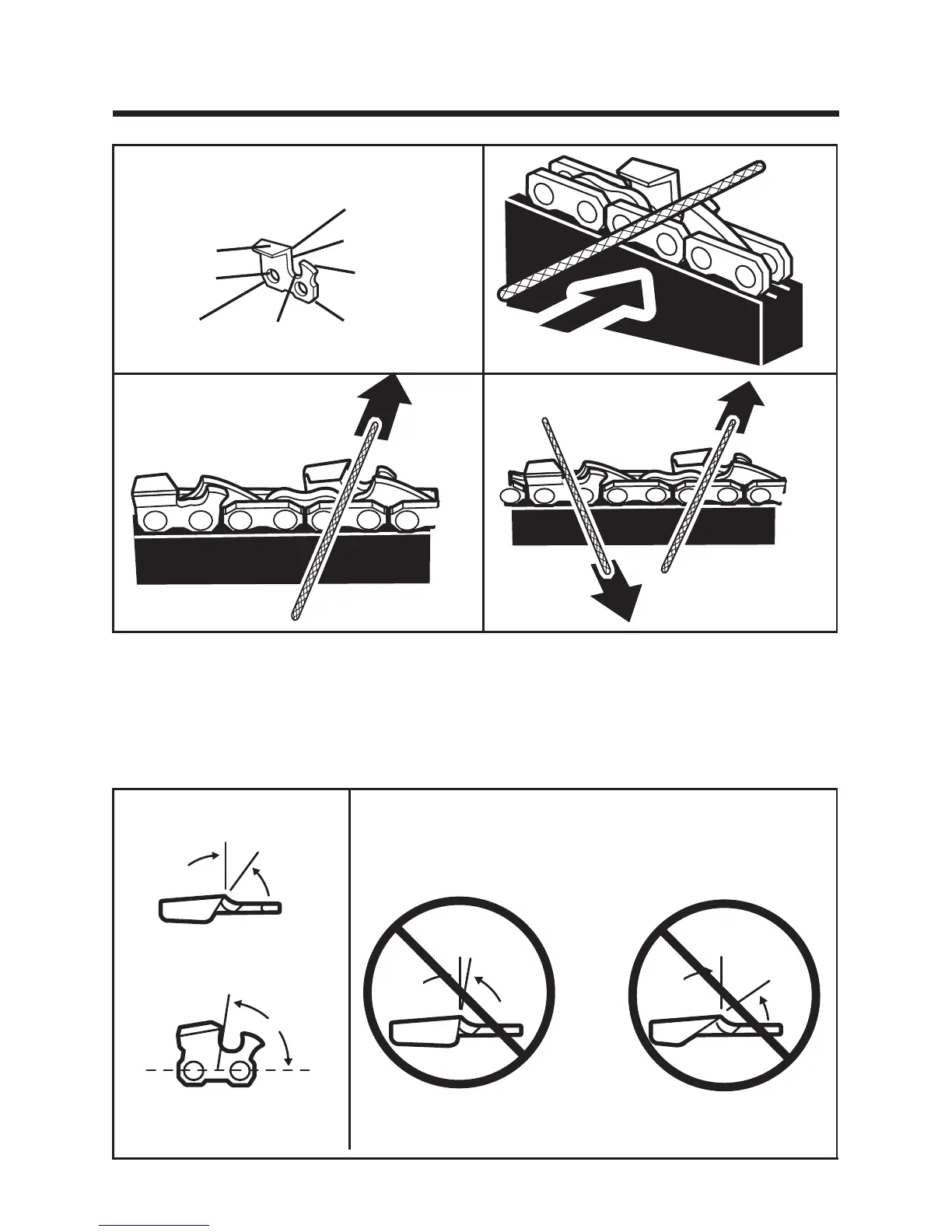

TOP PLATE FILING ANGLE
(See Figure 41)
• CORRECT 30° – file holders are marked with guide marks to align file properly to produce
correct top plate angle.
• LESS THAN 30° – for cross cutting.
• MORE THAN 30° – feathered edge dulls quickly.
Fig. 37
Fig. 39
Fig. 38
Fig. 40
Fig. 41
Toe
Cutting Corner
Left Hand
Cutters
Right Hand
Cutters
Side Plate
Depth Gauge
PARTS OF A CUTTER
TOP PLATE FILING ANGLE
SIDE PLATE FILING ANGLE
CORRECT INCORRECT
LESS THAN 30°
30°
80°
MORE THAN 30°
MAINTENANCE
Gullet
Heel
Rivet Hole
Top Plate
