GreenWorks 51142 - USING THE TELESCOPING HANDLE; ASSEMBLING WAND TO PRESSURE WASHER GUN; CONNECTING HIGH PRESSURE HOSE TO TRIGGER HANDLE

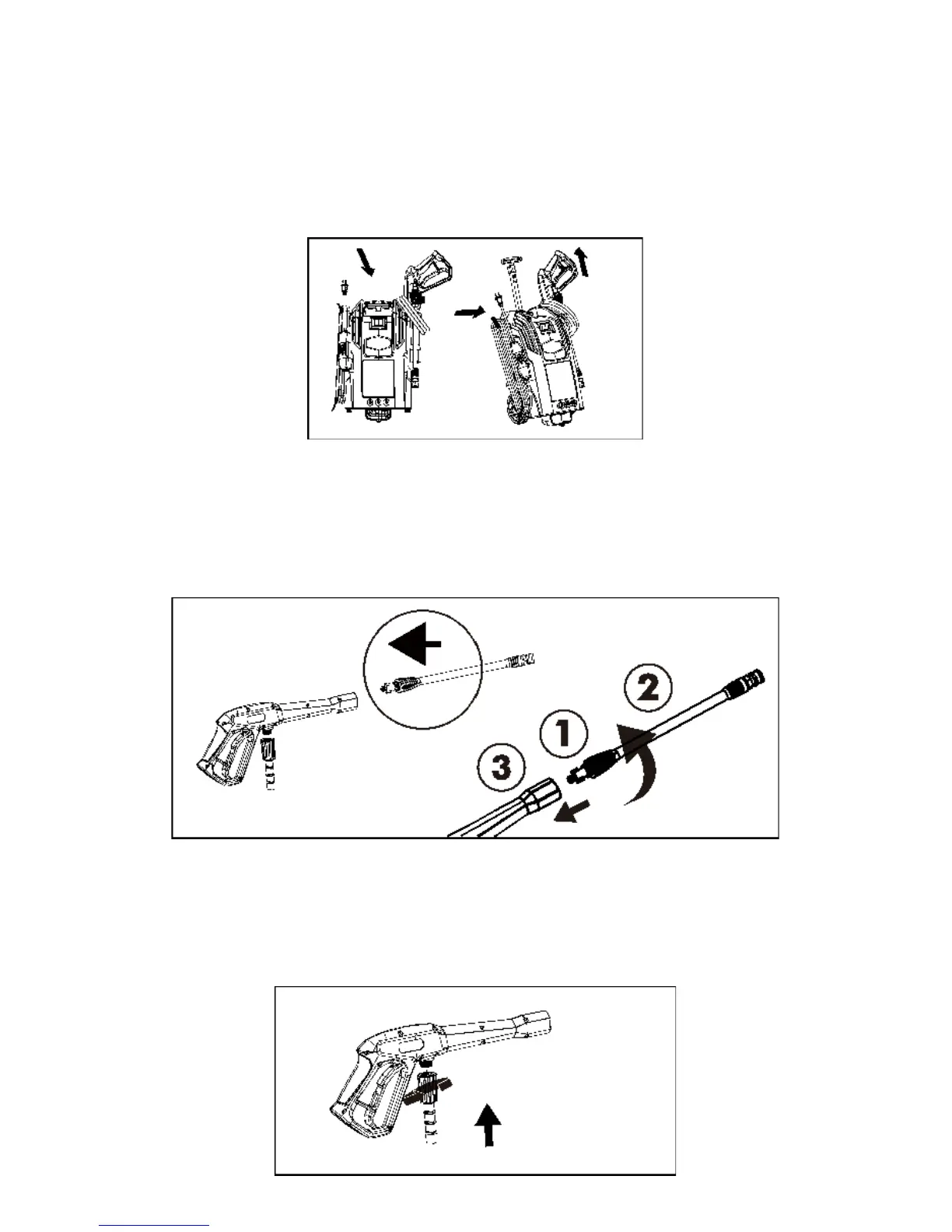

ASSEMBLING WAND TO PRESSURE WASHER GUN (See Figure 5.)
Fig. 4
Fig. 5
Fig. 6
ASSEMBLY
USING THE TELESCOPING HANDLE (See Figure 4.)
 To use the telescopic handle, pull up on it until the pins click into position.
 To store the handle, push the spring pins in, and press down on the handle.
 Installing Wand to Pressure Washer Gun
Insert the male baynet end(1) of the wand into the female bayonet outlet(3)firmly .
While pushing in the wand firmly ,turn clockwise(2)until tabs lock into place to
ensure a leak-free connection .
CONNECTING HIGH PRESSURE HOSE TO TRIGGER HANDLE (See Figure 6.)
 Connect the high pressure hose to the trigger handle.
