GreenWorks DHF410 - Exploded View

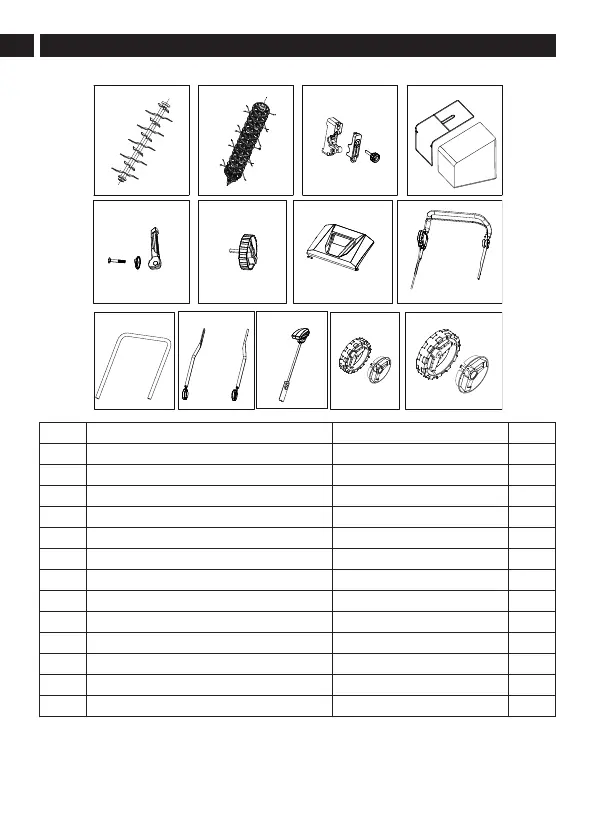

9 EXPLODED VIEW
1
2
3 4
9
5
6
7
8
10
12
11
13
No. Description Part No. Qty.
1 Blade cylinder R0102490-00 1
2 Tine cylinder R0102491-00 1
3 Cylinder lock assembly R0102940-00 1
4 Grass catcher R0102941-00 1
5 Upper/middle handles fastener assembly R0102483-00 4
6 Lower handle knob assembly R0102485-00 2
7 Rear discharge flap R0102942-00 1
8 Upper handle control assembly R0102480-00 1
9 Middle handle R0102482-00 1
10 Lower handle R0102484-00 2
11 Depth adjustment lever R0102943-00 1
12 Rear wheel assembly R0102489-00 2
13 Front wheel assembly R0102488-00 2
12
