WARNING
Do not make damage to the cables when you fold or
unfold the handle.

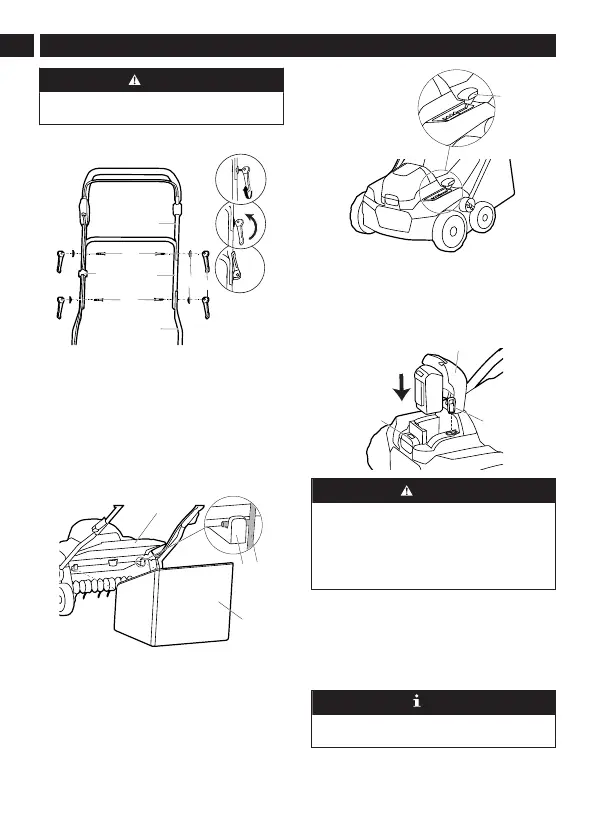

3.3 INSTALL THE UPPER HANDLE
4
16
15
24
3
5
6
15
1. Align the holes in the upper handle (3), the middle
handle (5) and the lower handle (6).
2. Put the bolts (15) through the holes and spacers
(16).
3. Tighten the quick-release levers (4) onto the
bolts.
4. Do the same operation on the other side.
5. Attach the power cord to the handle with the clip
(24).
3.4 INSTALL THE GRASS CATCHER
7
18
11
17
1. Open the rear discharge flap (7) and hold it.
2. Hold the grass catcher (11) by its handle and
engage the hooks (17) over the slots (18).
3. Close the rear discharge flap (7).
3.5 SET THE WORKING DEPTH
The machine can be set to different working depth.
8
• Pull the depth adjustment lever (8) forward to
increase the working depth.
• Pull the depth adjustment lever rearward to
decrease the working depth.
3.6 INSTALL THE BATTERY PACK
9
19
20
WARNING
• If the battery pack or charger is damaged, replace
the battery pack or the charger.
• Stop the machine and wait until the engine stops
before you install or remove the battery pack.
• Read, understand, and follow the instructions in
the battery and charger manual.
1. Press the button (19) to open the battery door (9).
2. Push the battery pack into the battery
compartment until the battery pack locks into
place.
3. When you hear a click, the battery pack is
properly installed.
4. Close the battery door.
NOTE
The machine only starts when you put in the safety
key (20).
3.7 REMOVE THE BATTERY PACK
1. Open the battery door.
